921052 - Ariens Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine (SN: 050000 & Above) Friction Drive - Track Parts Diagram

Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine

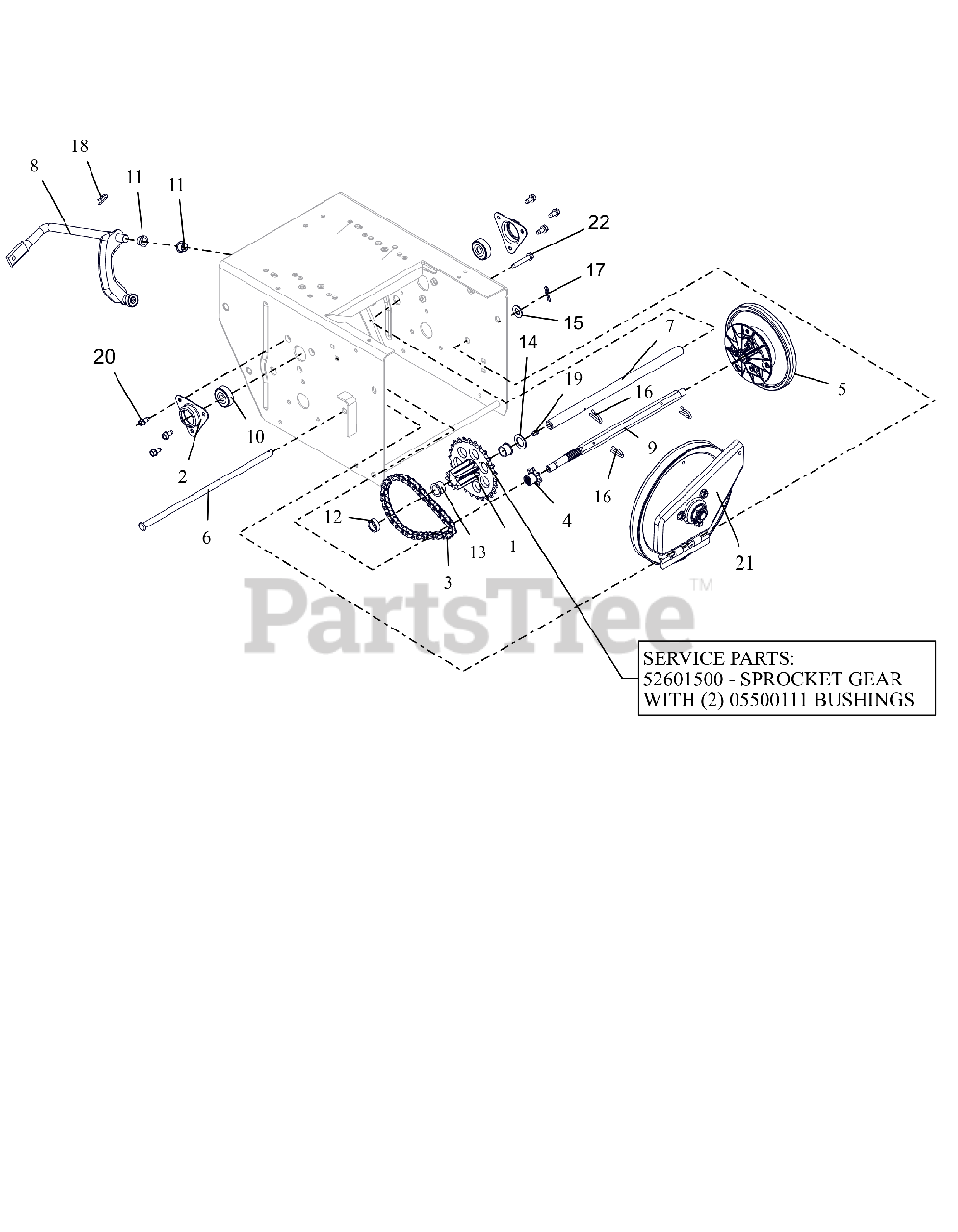

Friction Drive - Track Parts Diagram

  • Title
1

Ariens 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

1

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$45.99

$

In Stock, Qty 18

0

2

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

3

Ariens 02466200

CHAIN - #41, 32 PITCHES

$6.99

$

In Stock, Qty 13

0

4

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$

$

Not available

5

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$43.99

$

In Stock, Qty 20+

0

6

Ariens 04991300

PIN, PIVOT
(Superseded to 52111400)

$

$

Not available

7

Ariens 05004900

SHAFT, PINION-HARDENED

$37.99

$

Usually ships in 4-12 days

0

8

Ariens 04993700

ARM, SHIFT - ASSEMBLY

$41.99

$

Usually ships in 4-12 days

0

9

Ariens 04991400

SHAFT, HEX - HEAT TREATED

$36.99

$

In Stock, only 4 left!

0

10

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

11

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

12

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 20+

0

13

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

20

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Ariens 52602700

PLATE, SWING ASSEMBLY-DEEP

$129.99

$

In Stock, Qty 5

0

22

Ariens 07400140

SCR,TAP .25-20X1.50 HWH TR ZCC

$3.49

$

Usually ships in 4-12 days

0
