921052 - Ariens Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine (SN: 035066 - 049999) Handlebars Parts Diagram

Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine

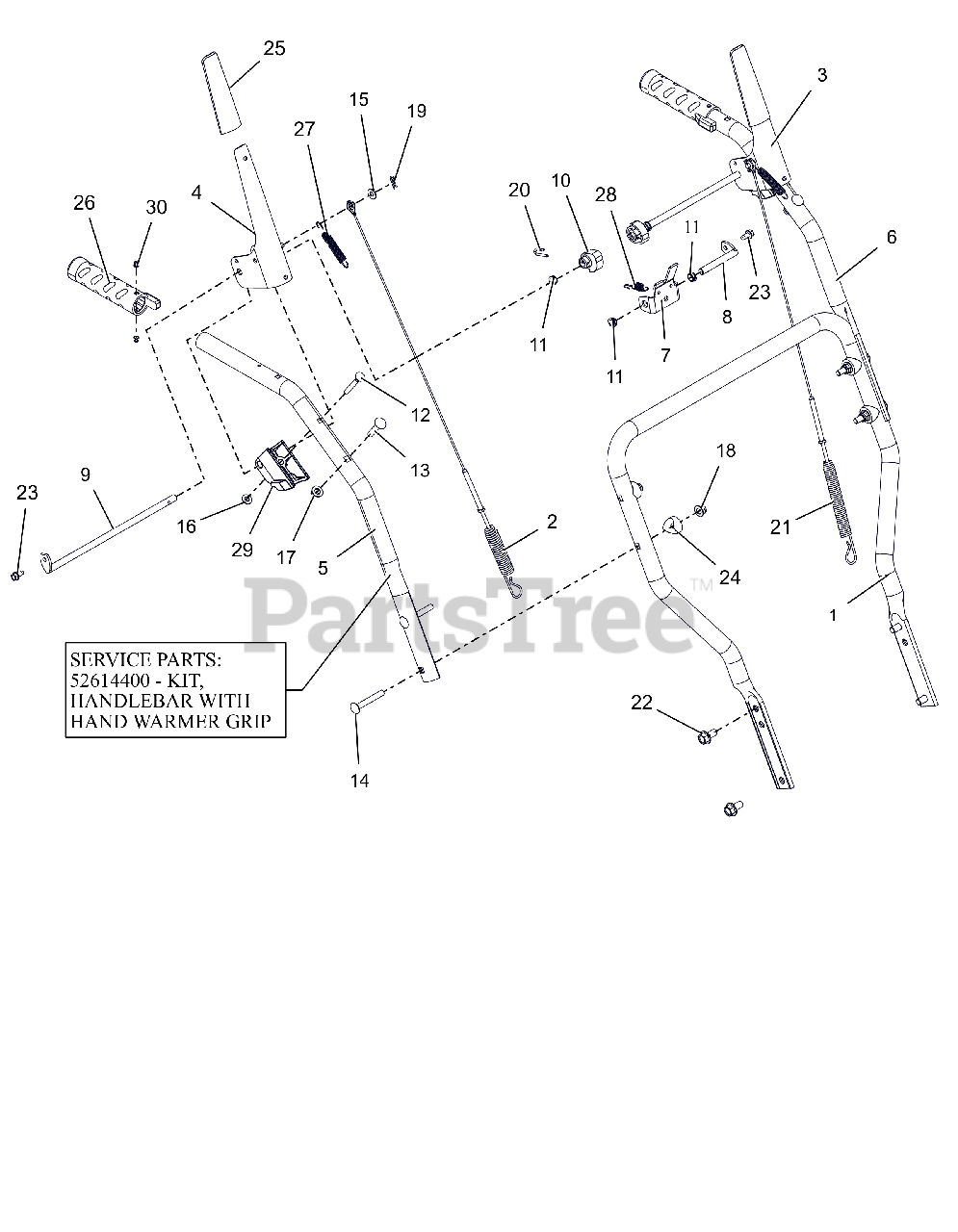

Handlebars Parts Diagram

  • Title

1

Ariens 00373251

HANDLEBAR, LOWER

$100.99

$

Usually ships in 4-12 days

0

2

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$28.99

$

In Stock, Qty 20+

0

3

Ariens 04310451

LEVER, CLUTCH-LH

$28.99

$

In Stock, only 1 left!

0

4

Ariens 04310551

LEVER, CLUTCH-RH

$22.99

$

Usually ships in 4-12 days

0

5

Ariens 04318151

HANDLEBAR, UPPER - RH

$56.99

$

Usually ships in 4-12 days

0

5

Ariens 52614400

KIT, HANDLEBAR HW RH

Note: SERVICE PART

$77.99

$

Usually ships in 4-12 days

0

6

Ariens 04318251

HANDLEBAR, UPPER - LH

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 52614500

KIT, HANDLEBAR HW LH

Note: SERVICE PART

$

$

Not available

7

Ariens 04320400

BRACKET, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

9

Ariens 04320600

ROD, PADDLE MOUNT - PRO

$

$

Not available

10

Ariens 04322100

CAM, INTERLOCK

$3.99

$

In Stock, only 2 left!

0

11

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

14

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

20

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

21

Ariens 06900502

CABLE, UPPER TRACTION

$31.99

$

In Stock, Qty 20+

0

22

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07500331

SLEEVE, CLUTCH PADDLE-GRAY

$3.99

$

In Stock, only 2 left!

0

26

Ariens 07500337

GRIP,HEATED HANDLE-GRAY
(Superseded to 07500514)

$46.99

$

In Stock, only 2 left!

0

27

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 4 left!

0

28

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 16

0

29

Ariens 05073000

BLOCK, CLUTCH PADDLE
(Superseded to 05193600)

$

$

Not available

30

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available
