921052 - Ariens Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine (SN: 000101 - 035065) Friction Drive - Track Parts Diagram

Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine

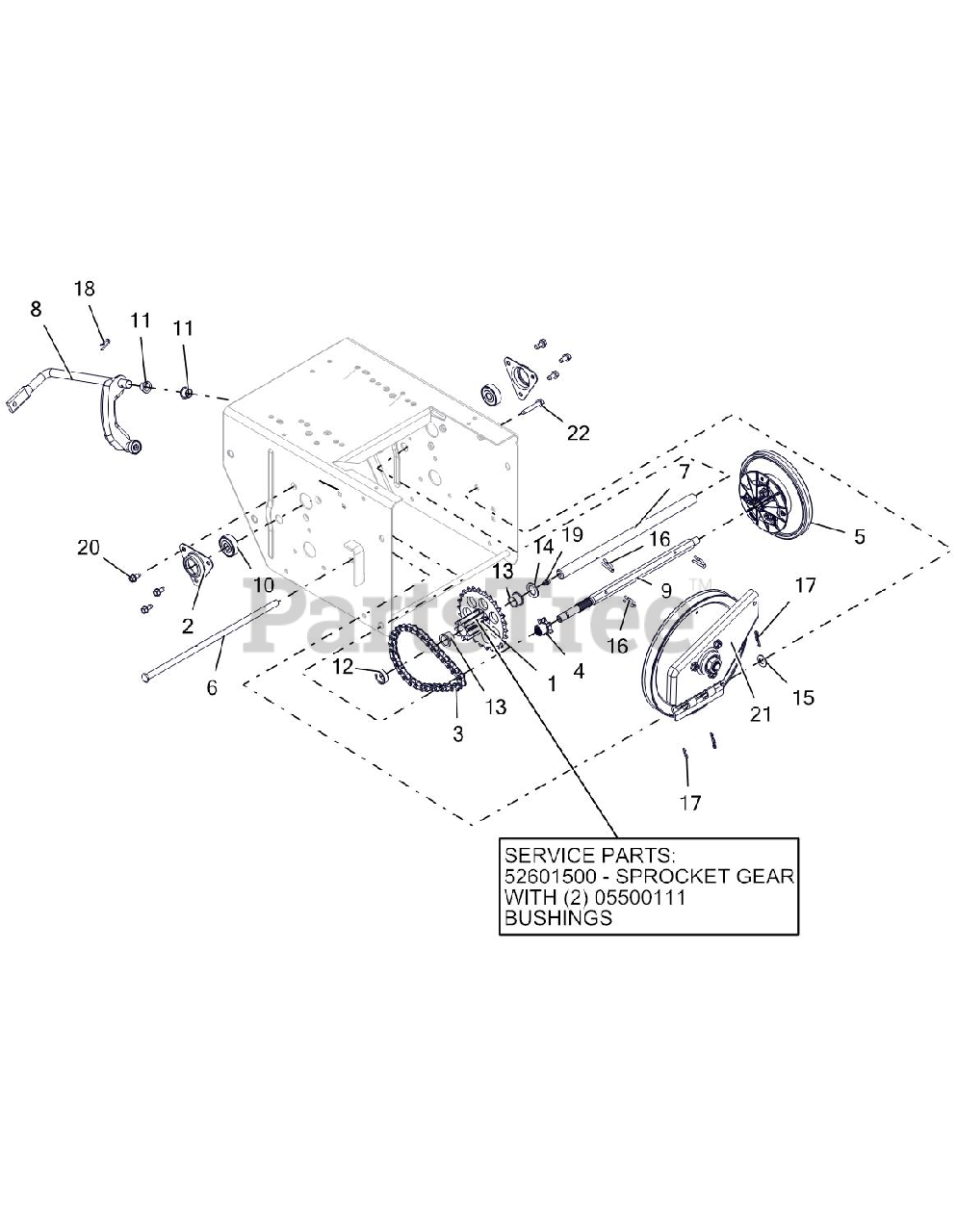

Friction Drive - Track Parts Diagram

  • Title

1

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

Note: SERVICE PART

$2.49

$

In Stock, Qty 20+

0

1

Ariens 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

1

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$45.99

$

In Stock, Qty 11

0

2

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 14

0

3

Ariens 02466200

CHAIN - #41, 32 PITCHES

$7.99

$

In Stock, Qty 10

0

4

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$35.99

$

In Stock, Qty 14

0

6

Ariens 04991300

PIN, PIVOT
(Superseded to 52111400)

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 05004900

SHAFT, PINION-HARDENED

$37.99

$

Usually ships in 4-12 days

0

8

Ariens 04993700

ARM, SHIFT - ASSEMBLY

$41.99

$

Usually ships in 4-12 days

0

9

Ariens 04991400

SHAFT, HEX - HEAT TREATED

$39.99

$

In Stock, only 1 left!

0

10

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

11

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

12

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 12

0

13

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 14

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 52602700

PLATE, SWING ASSEMBLY-DEEP

$129.99

$

In Stock, only 2 left!

0

22

Ariens 07400007

@SCR-TAP .25-20X1.50 HWH TR YZ

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 08300019

SG-TENS .048X.50X2.8

Note: NOT SHOWN

$5.99

$

In Stock, Qty 10

0
