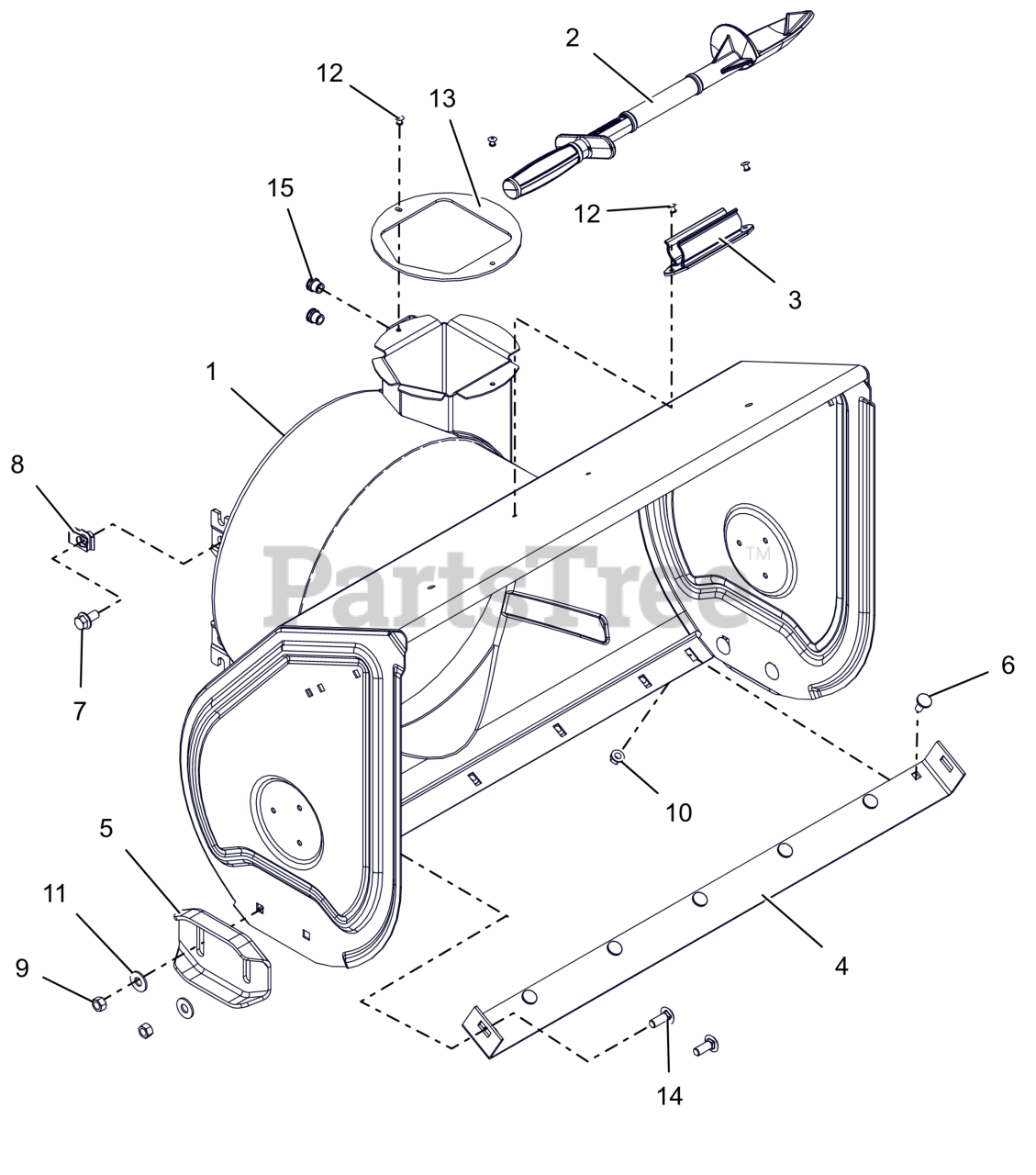

921051 - Ariens Platinum 30" SHO Snow Blower, Ariens AX 414cc engine (SN: 180000 & Above) Housing - 30" Parts Diagram

Platinum 30" SHO Snow Blower, Ariens AX 414cc engine

Housing - 30" Parts Diagram

  • Title

1

Ariens 52108600

BLOWER HOUSING W/DECAL 30"

$339.99

$

Usually ships in 4-12 days

0

2

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

3

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

4

Ariens 00661159

BLADE, SCRAPER-30"

$46.99

$

In Stock, Qty 20+

0

5

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$19.99

$

In Stock, Qty 20+

0

6

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07001824

BLT

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

9

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

13

Ariens 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0

14

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.49

$

Usually ships in 4-12 days

0
