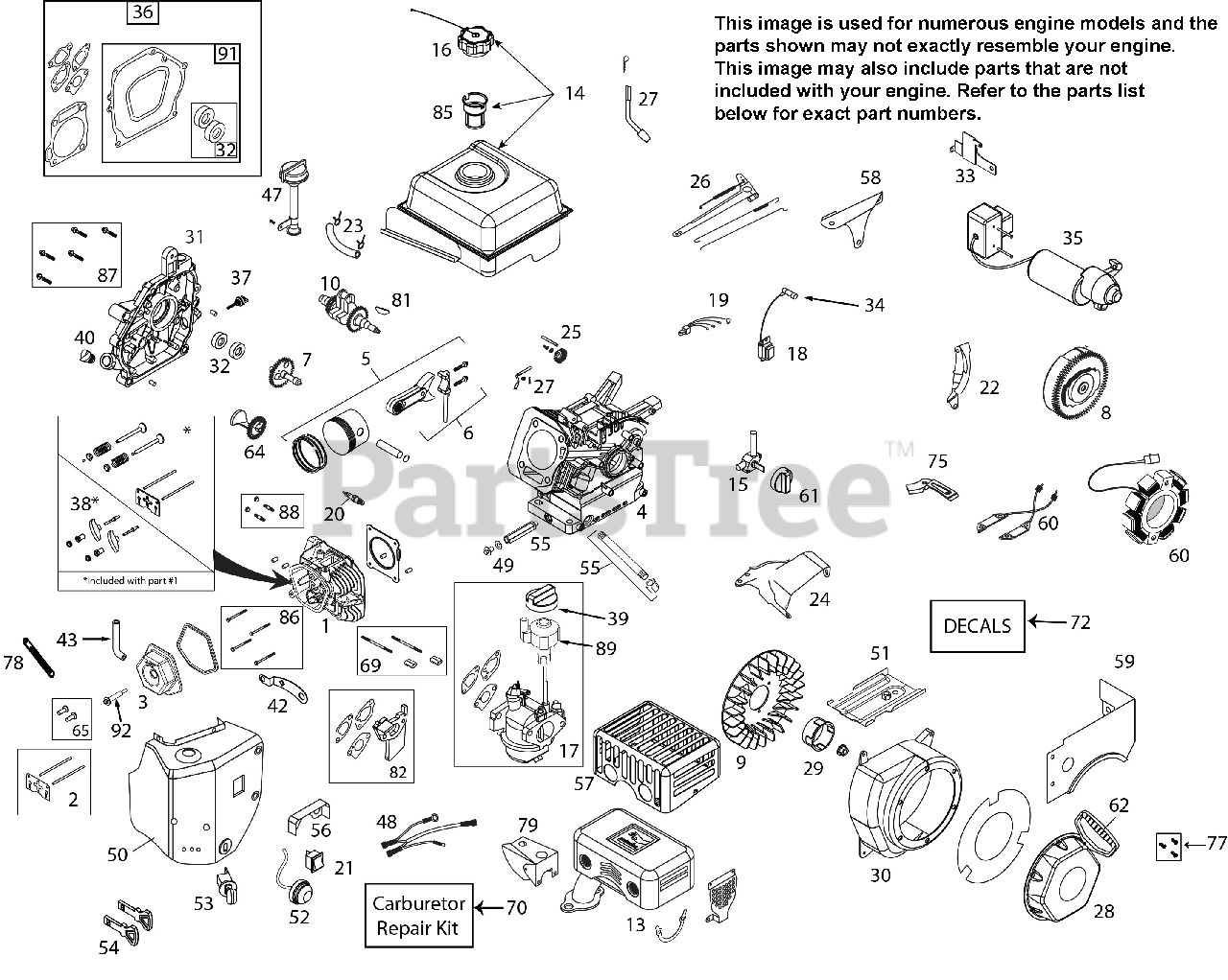

921051 - Ariens Platinum 30" SHO Snow Blower, Ariens AX 414cc engine (SN: 000101 - 035360) Engine 08201021 Parts Diagram

Platinum 30" SHO Snow Blower, Ariens AX 414cc engine

Engine 08201021 Parts Diagram

  • Title

1

Ariens 20001283

CYLINDER HEAD ASSY (/GASKET)

Note: (/GASKET)

$213.99

$

Usually ships in 4-12 days

0

2

Ariens 20001280

PUSH ROD & PLATE KIT (W/GSKT)
(Superseded to 20001365)

Note: (W/GSKT)

$

$

Not available

3

Ariens 20001298

VALVE COVER (W/GASKET)
(Superseded to 20001553)

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 20001410

CYLINDER - 414CC

$

$

Not available

5

Ariens 20001285

PISTON & ROD ASSEMBLY
(Superseded to 20001273)

$108.99

$

Usually ships in 4-12 days

0

6

Ariens 20001286

CONNECTING ROD ASSEMBLY
(Superseded to 20001273)

$108.99

$

Usually ships in 4-12 days

0

7

Ariens 20001287

CAMSHAFT - MCR

$91.99

$

Usually ships in 4-12 days

0

8

Ariens 20001142

FLYWHEEL - ELECTRIC START

$213.99

$

Usually ships in 4-12 days

0

9

Ariens 20001296

COOLING FAN - FLYWHEEL

$10.99

$

Usually ships in 4-12 days

0

10

Ariens 20001161

CRANKSHAFT (#17 KEYED)

Note: (#17 KEYED)

$212.99

$

Usually ships in 4-12 days

0

13

Ariens 20001380

MUFFLER ASSEMBLY - GEN III

$149.99

$

Usually ships in 4-12 days

0

14

Ariens 20001399

FUEL TANK - LOW PROFILE
(Superseded to 20001439)

$164.99

$

Usually ships in 4-12 days

0

15

Ariens 20001436

FUEL TANK ON/OFF VALVE

$23.99

$

In Stock, Qty 16

0

16

Ariens 20001374

CAP, FUEL TANK RED
(Superseded to 52107500)

Note: (Vented) Bayonet Style

$20.99

$

In Stock, Qty 8

0

17

Ariens 20001135

CARBURETOR (W/IDLE-DOWN)

Note: (W/IDLE-DOWN)

$103.99

$

Usually ships in 4-12 days

0

18

Ariens 20001159

IGNITION COIL (CDI) (STANDARD)

Note: (CDI) (STANDARD)

$35.99

$

In Stock, only 1 left!

0

20

Ariens 20001271

SPARK PLUG
(Superseded to 20001246)

Note: (same as SK2083810.1)

$6.99

$

In Stock, Qty 20+

0

23

Ariens 20001301

FUEL HOSE KIT
(Superseded to 20001252)

Note: (229mm)

$5.99

$

In Stock, Qty 12

0

24

Ariens 20001411

SPEED CONTROL SHIELD (GEN III)

Note: (GEN III 414cc)

$26.99

$

Usually ships in 4-12 days

0

25

Ariens 20001290

GOVERNOR GEAR ASSEMBLY

$12.99

$

Usually ships in 4-12 days

0

26

Ariens 20001147

GOVERNOR ARM & LINK KIT

$7.49

$

Usually ships in 4-12 days

0

27

Ariens 20001291

GOVERNOR ARM PADDLE

$

$

Not available

28

Ariens 20001462

RECOIL STARTER, ROUND STYLE

$64.99

$

In Stock, only 2 left!

0

29

Ariens 20001463

STARTER CUP, ROUND STYLE

$

$

Not available

30

Ariens 20001402

BLOWER HOUSING - MATTE BLACK

$

$

Not available

31

Ariens 20001403

CRANKCASE COVER

$164.99

$

Usually ships in 4-12 days

0

32

Ariens 20001295

OIL SEAL KIT

$15.99

$

Usually ships in 4-12 days

0

33

Ariens 20001140

ELECT START SWITCHBOX BRACKET

$11.99

$

Usually ships in 4-12 days

0

34

Ariens 20001158

SPARK PLUG BOOT (W/MTL SHIELD)

Note: (Snow)

$9.49

$

In Stock, only 2 left!

0

35

Ariens 20001136

120V ELECTRIC STARTER
(Superseded to 20001440)

$200.99

$

Usually ships in 4-12 days

0

35

Ariens 20001428

ELECTRIC STARTER SOCKET (CAP)

Note: (Not Shown) (OPTIONAL)

$9.49

$

Usually ships in 4-12 days

0

35

Ariens 20001103

STARTER SWITCH SCREWS

Note: (COMES IN SET OF TWO) NOT SHOWN

$9.49

$

In Stock, only 1 left!

0

36

Ariens 20001297

ENGINE GASKET KIT
(Superseded to 20001366)

$72.99

$

Usually ships in 4-12 days

0

37

Ariens 20001293

SMALL BLACK OIL DIPSTICK

Note: (Plastic)

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 20001284

ROCKER ARM KIT (W/GASKET)

Note: (291/414cc)(incl. gasket)

$19.99

$

Usually ships in 4-12 days

0

39

Ariens 20001145

CHOKE CONTROL KNOB (RED)
(Superseded to 20000025)

Note: (GEN II Red)

$4.99

$

In Stock, Qty 20+

0

40

Ariens 20001294

NON-REMOVABLE PLASTIC PLUG

Note: (291/414cc)

$

$

Not available

43

Ariens 20001299

BREATHER TUBE
(Superseded to 20001405)

Note: (291/414cc)

$

$

Not available

47

Ariens 20001388

HIGH OIL-FILL TUBE & CAP

$13.99

$

In Stock, Qty 8

0

48

Ariens 20001014

WIRE HARNESS

Note: (369/414cc Snow)

$14.99

$

In Stock, only 1 left!

0

49

Ariens 20001303

OIL DRAIN PLUG (W/WASHER)

Note: (291/414cc)

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 20001407

HEATER BOX KIT (369/414CC)

Note: (369/414CC)

$97.99

$

Usually ships in 4-12 days

0

51

Ariens 20001281

SHIELD - CYLINDER

$7.49

$

Usually ships in 4-12 days

0

52

Ariens 20001133

PRIMER BULB WITH HOSE
(Superseded to 20001472)

Note: (same as SKSN0304.1)

$

$

Not available

53

Ariens 20001046

KEY SWITCH, STOP-RUN (W/KEYS)

Note: (W/ KEYS)

$

$

Not available

54

Ariens 20001044

KEY SET (2) (RED)
(Superseded to 23800100)

Note: (2) (Snow)

$11.99

$

In Stock, only 2 left!

0

55

Ariens 20001379

FRONT OIL DRN PIPE & NUT ASSY
(Superseded to 20001446)

Note: (291/414cc)

$22.99

$

In Stock, only 3 left!

0

56

Ariens 20001391

CARBURETOR VAPOR SHIELD

$

$

Not available

57

Ariens 20001392

MUFFLER HEAT SHIELD - GEN III

Note: (369cc)

$55.99

$

Usually ships in 4-12 days

0

58

Ariens 20001146

SHIELD - GOVERNOR LINKAGE

$7.49

$

Usually ships in 4-12 days

0

59

Ariens 20001409

FUEL TANK SKIRT (369/414CC)

Note: (369/414CC)

$43.99

$

Usually ships in 4-12 days

0

60

Ariens 20001111

CHARGING COIL (60-WATT AC)

Note: (60-watt AC) (291/414cc)

$56.99

$

Usually ships in 4-12 days

0

61

Ariens 20001148

FUEL CONTROL KNOB (RED)
(Superseded to 20000024)

Note: (GEN II Snow - Red)

$4.99

$

In Stock, Qty 20+

0

62

Ariens 20001064

STARTER GRIP-SNOW (DELUXE)

Note: (Deluxe)

$12.99

$

In Stock, only 2 left!

0

64

Ariens 20001288

COUNTER WEIGHT KIT

$75.99

$

Usually ships in 4-12 days

0

65

Ariens 20001267

TAPPET KIT (SET OF 2)

Note: (291/414cc)(Set of 2)

$

$

Not available

69

Ariens 20001352

CARB MTG STUD KIT 414CC

$8.99

$

Usually ships in 4-12 days

0

70

Ariens 20001185

CARBURETOR REPAIR KIT

Note: (291/414cc)

$28.99

$

In Stock, only 1 left!

0

72

Ariens 20001470

LABEL KIT-SNOW (2016)
(Superseded to 20001657)

$

$

Not available

75

Ariens 20001152

SHIELD - FLYWHEEL

$6.99

$

Usually ships in 4-12 days

0

77

Ariens 20001186

RECOIL BOLT KIT

Note: (incl. (3) mtg bolts)

$4.99

$

In Stock, Qty 6

0

78

Ariens 20001155

BREATHER TUBE RETAINING STRAP

$6.99

$

Usually ships in 4-12 days

0

79

Ariens 20001153

SHIELD - CARBURETOR COVER

$

$

Not available

81

Ariens 20001333

WOODRUFF FLYWHEEL KEY 5-PACK

Note: (5-pack) (4x6x18mm)

$5.99

$

In Stock, only 2 left!

0

82

Ariens 20001335

CARBURETOR SPACER

Note: (291cc)

$

$

Not available

86

Ariens 20001359

HEAD BOLT KIT 291-414CC

Note: (4) (291-414cc)

$14.99

$

Usually ships in 4-12 days

0

87

Ariens 20001355

CRANKCASE COVER BOLT KIT 414CC

Note: (7) (291cc)

$11.99

$

Usually ships in 4-12 days

0

88

Ariens 20001049

MUFFLER SHOULDER BOLT

Note: (2)

$9.99

$

Usually ships in 4-12 days

0

89

Ariens 20001372

SPEED CONTROL KNOB

$5.99

$

In Stock, Qty 7

0

91

Ariens 20001420

CRANKCASE GASKET KIT(369-414)

Note: (369-414)

$36.99

$

Usually ships in 4-12 days

0

92

Ariens 20001048

VALVE COVER BOLT (SINGLE BOLT)

Note: (SINGLE BOLT)

$7.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001348

HIGH ALT JET - 414CC L12 CARB

Note: (>5,000 feet)(291cc L11 Carburetor)

$8.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001438

HARDWARE KIT (4 M6X10 FLG BLT)

Note: (4 M6X10 FLG BLT)

$

$

Not available
