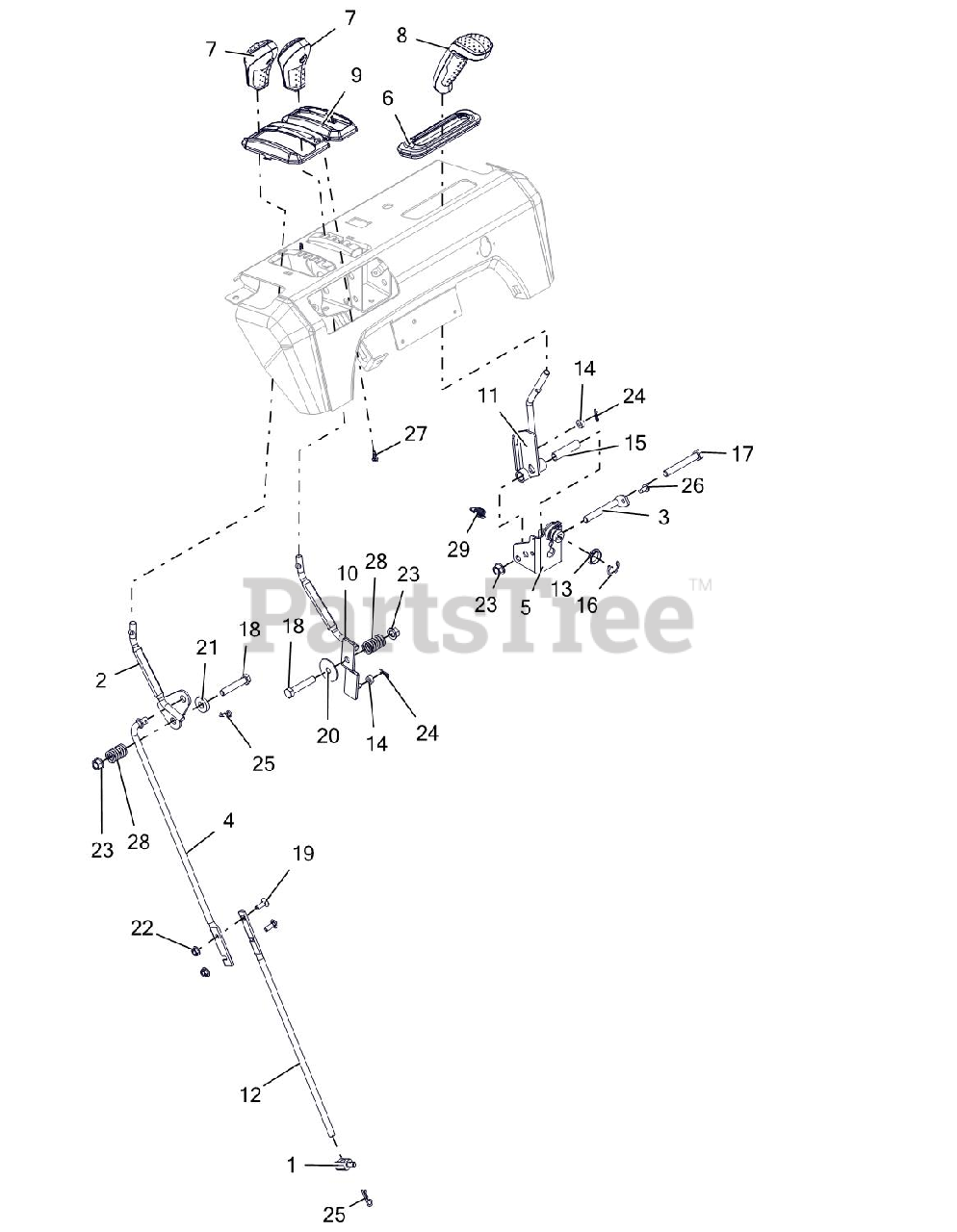

921051 - Ariens Platinum 30" SHO Snow Blower, Ariens AX 414cc engine (SN: 000101 - 035360) Controls Parts Diagram

Platinum 30" SHO Snow Blower, Ariens AX 414cc engine

Controls Parts Diagram

  • Title

1

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 17

0

2

Ariens 04846900

WELDMENT,LG DASH SPEED CONTROL

$

$

Not available

3

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

4

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

5

Ariens 04755000

WELDMENT-CONTROL BRACKET-CHUTE

$

$

Not available

6

Ariens 04757600

GROMMET, BOOT, QUICK TURN

$11.99

$

In Stock, only 2 left!

0

7

Ariens 04816300

KNOB, CONTROL, DASH

$7.99

$

In Stock, Qty 11

0

8

Ariens 04816400

HANDLE, QUICK TURN, ASM

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 04816500

BEZEL, SHIFT - FRICTION SNOW

$

$

Not available

10

Ariens 04846800

WELDMENT,LG DASH DEFL CONTROL

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 04847000

WELDMENT,LG DASH QT CONTROL

$42.99

$

Usually ships in 4-12 days

0

12

Ariens 04995967

ROD, SHIFT-LOWER (LG DASH DLX)
(Superseded to 04995900)

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

14

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 12

0

15

Ariens 05533500

SPCR, WHEEL .385X.500X2.00

$9.49

$

Usually ships in 4-12 days

0

16

Ariens 05700218

E-RING .750X.050

$2.49

$

In Stock, only 2 left!

0

17

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

18

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

19

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

25

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

28

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

29

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 19

0
