921049 - Ariens Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine (SN: 200000 & Above) Engine, Frame and Belt Drive - AX306 - EFI Parts Diagram

Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine

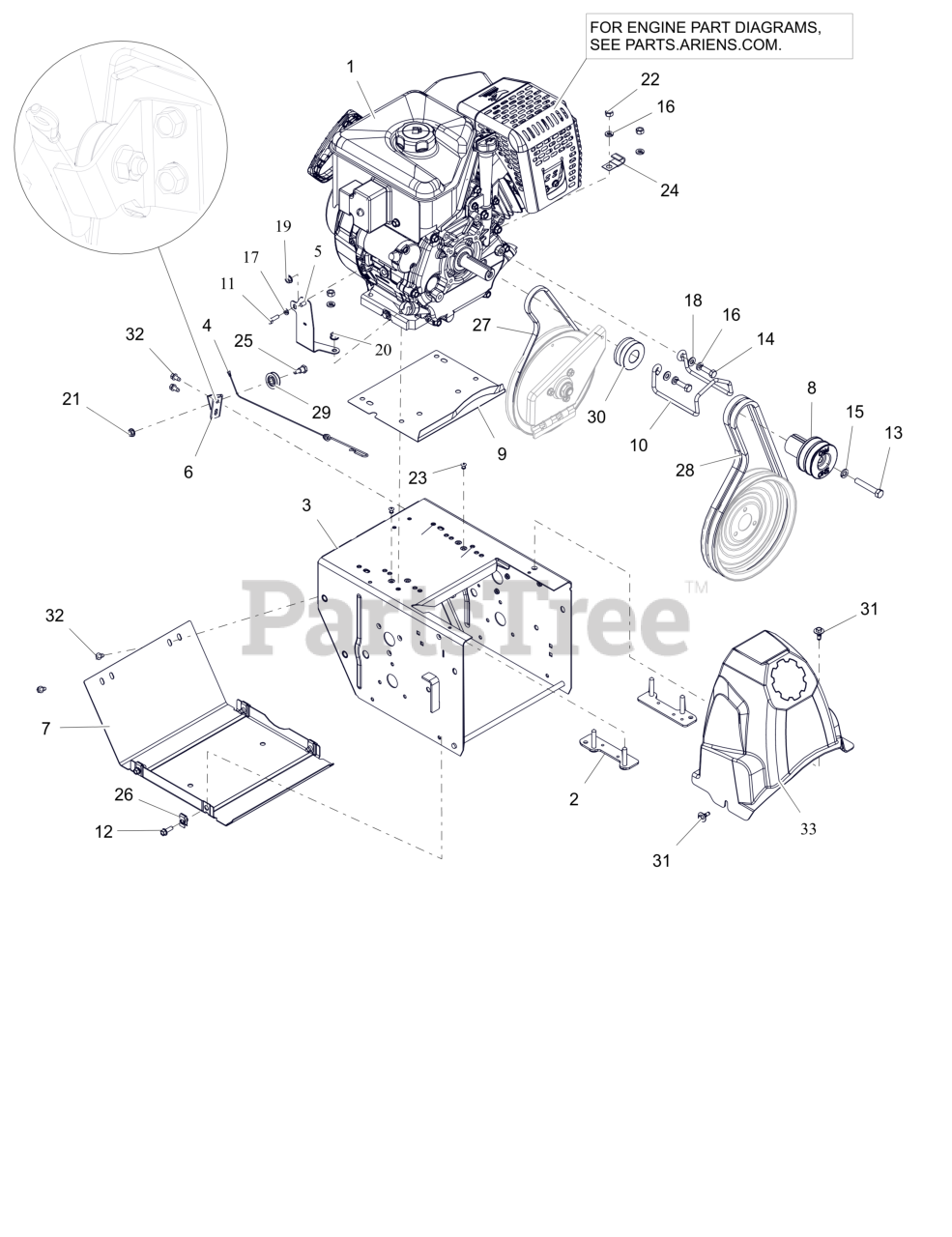

Engine, Frame and Belt Drive - AX306 - EFI Parts Diagram

  • Title

1

Ariens 08201216

ENGINE,EFI306 GEN3 120V/60W

$

$

Not available

2

Ariens 04999700

STRAP, ENGINE-MEDIUM BLOCK

$12.99

$

Usually ships in 4-12 days

0

3

Ariens 05250559

FRAME, MAIN - 14GA DELUXE (ORANGE)

$179.99

$

Usually ships in 4-12 days

0

4

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, Qty 13

0

5

Ariens 09482200

WLDMT- MED BLOCK FUSE MOUNT

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

7

Ariens 00375100

COVER, BOTTOM

$

$

Currently unavailable

8

Ariens 04957500

SHEAVE,ATTACHMENT-SHO 2 GRV

$

$

Not available

9

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

10

Ariens 05273200

FINGER, BELT

$18.99

$

In Stock, only 2 left!

0

11

Ariens 05901610

BLT,HEX M6-1X20 G8.8 ZC120

$

$

Not available

12

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

14

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$

$

Not available

15

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06500938

NUT, HEX .312-18 ZCC

$0.99

$

In Stock, Qty 10

0

23

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

24

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

25

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

26

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07200101

V-BELT, 3L-WRAPPED

$20.99

$

In Stock, Qty 20+

0

28

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$53.99

$

In Stock, Qty 20+

0

29

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

30

Ariens 07348500

SHEAVE, TRACTION (KEYLESS)

$25.99

$

In Stock, only 1 left!

0

31

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

33

Ariens 09382100

COVER, BELT

$11.99

$

Usually ships in 4-12 days

0
