921049 - Ariens Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine (SN: 038007 - 099999) Electrical - EFI Parts Diagram

Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine

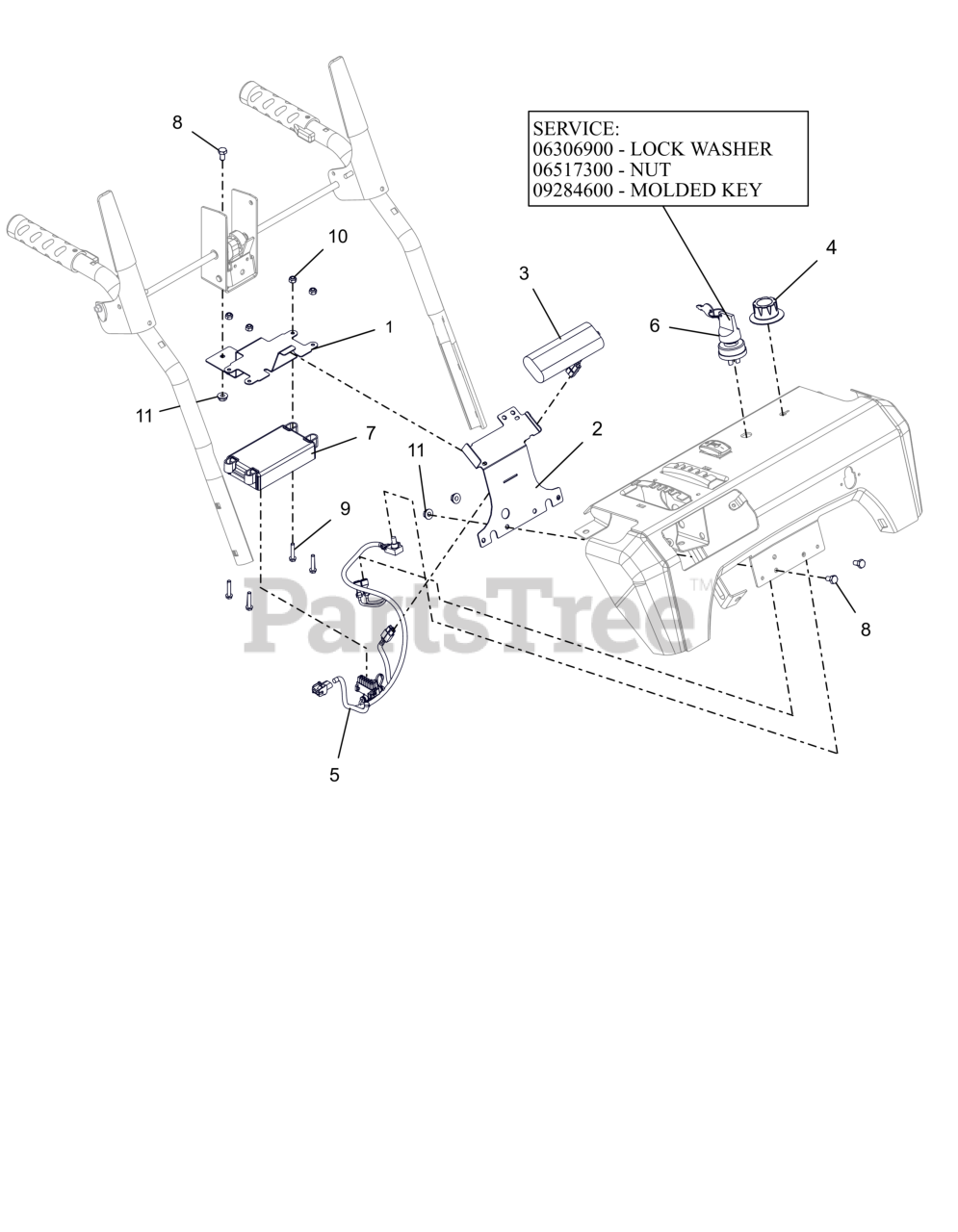

Electrical - EFI Parts Diagram

  • Title

Not Shown

Ariens 05079500

CHARGER, BATTERY - EFI 7.2V

Note: Item Not Shown

$37.99

$

In Stock, only 4 left!

0

1

Ariens 04996651

BRACKET, ENGINE EFI-LCT LOWER

$18.99

$

Usually ships in 4-12 days

0

2

Ariens 04996751

BRACKET, ENGINE EFI-LCT UPPER

$

$

Not available

3

Ariens 05076500

BATTERY, SNOW EFI - 7.2V

$68.99

$

In Stock, only 2 left!

0

4

Ariens 05079400

KNOB, CONTROL - 2.063 ID

$28.99

$

In Stock, only 1 left!

0

5

Ariens 04992800

HARNESS,WIRE - EFI ECU

$79.99

$

In Stock, only 3 left!

0

6

Ariens 05079600

IGNITION SWITCH ASM - 2 POS

$35.99

$

Usually ships in 4-12 days

0

6

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: SERVICE PART

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: SERVICE PART

$7.99

$

Usually ships in 4-12 days

0

6

Ariens 09284600

KEY W/ SHIELD

Note: SERVICE PART

$18.99

$

Usually ships in 4-12 days

0

7

Ariens 20003127

ECU SERVICE LCT/CSI - 306CC

$258.99

$

In Stock, only 1 left!

0

8

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 05901838

BLT, HWH #10-24X1.00 ZCC

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0
