921049 - Ariens Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine (SN: 038007 - 099999) Dash - EFI Parts Diagram

Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine

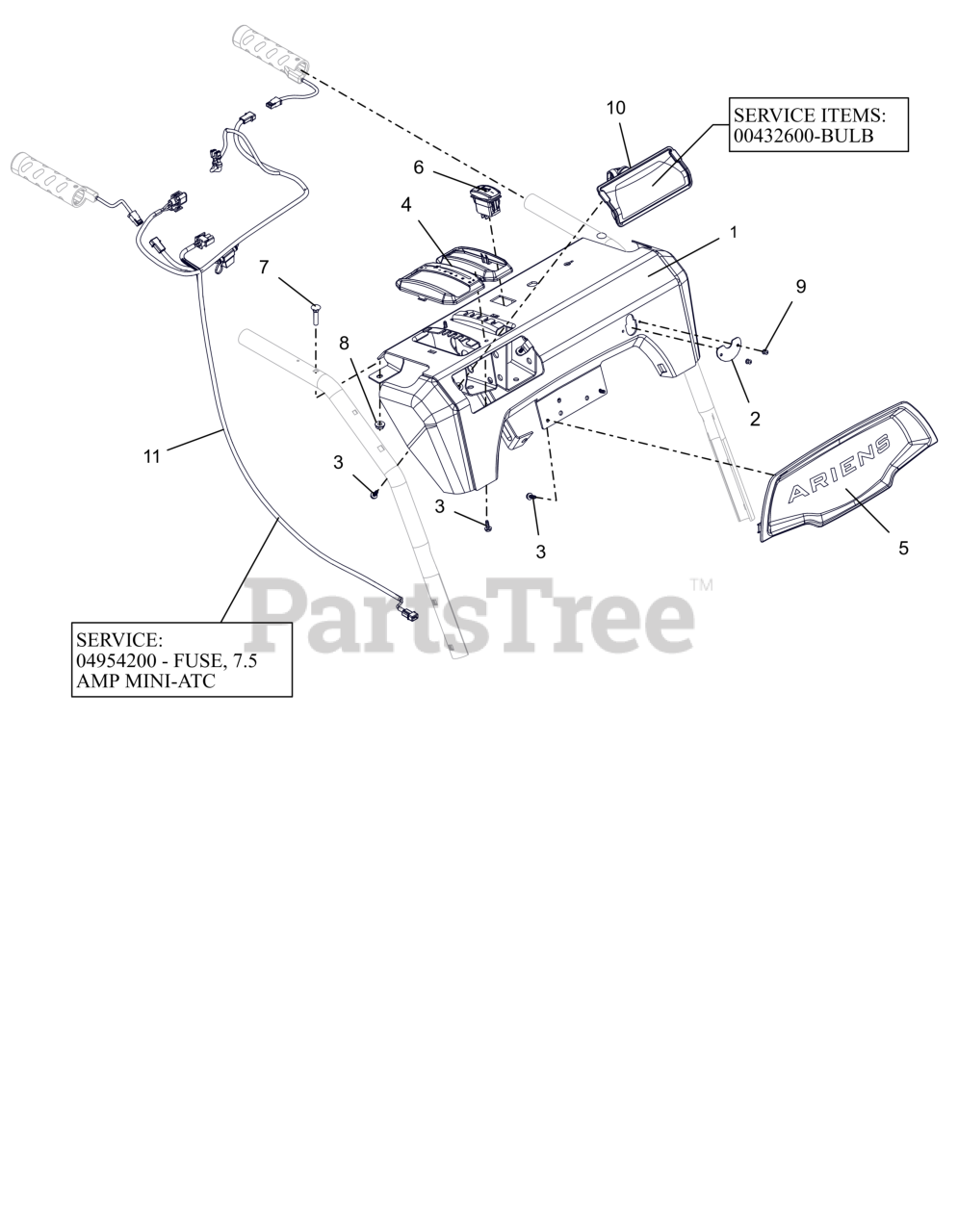

Dash - EFI Parts Diagram

  • Title
1

Ariens 52109500

PANEL, CONTROL-EFI ID W/DECAL

$257.99

$

Usually ships in 4-12 days

0

2

Ariens 04784500

COVER, DASH BRKT, ID

$7.49

$

In Stock, only 1 left!

0

3

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 05126500

BEZEL, SHIFT - FRICTION SNOW

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$27.99

$

Usually ships in 4-12 days

0

6

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$19.99

$

In Stock, Qty 5

0

7

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available

10

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 9

0

10

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: SERVICE PART

$14.99

$

In Stock, Qty 17

0

11

Ariens 05071800

HARNESS,LIGHT&WARMER - EFI

$56.99

$

Usually ships in 4-12 days

0

11

Ariens 04954200

FUSE, 7.5 AMP MINI-ATC

Note: SERVICE PART

$

$

Not available
