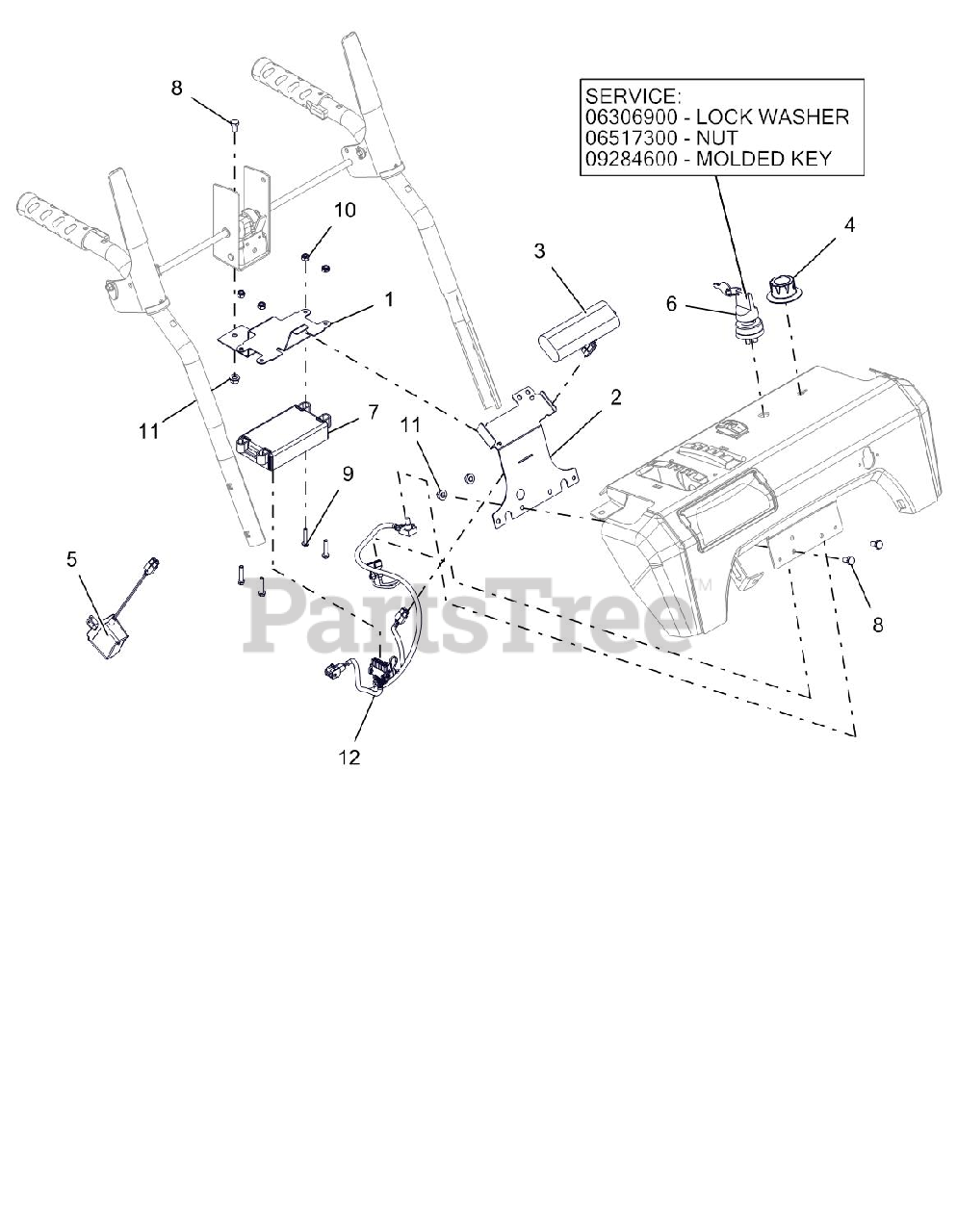

921049 - Ariens Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine (SN: 000101 - 034999) Electrical - EFI Parts Diagram

Deluxe 30" EFI Snow Blower, Ariens AX 306cc EFI engine

Electrical - EFI Parts Diagram

  • Title

1

Ariens 04996651

BRACKET, ENGINE EFI-LCT LOWER

$18.99

$

Usually ships in 4-12 days

0

2

Ariens 04996751

BRACKET, ENGINE EFI-LCT UPPER

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 05076500

BATTERY, SNOW EFI - 7.2V

$77.99

$

Usually ships in 4-12 days

0

4

Ariens 05079400

KNOB, CONTROL - 2.063 ID

$28.99

$

In Stock, only 1 left!

0

5

Ariens 05079500

CHARGER, BATTERY - EFI 7.2V

$42.99

$

In Stock, only 1 left!

0

6

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: SERVICE PART

$7.99

$

Usually ships in 4-12 days

0

6

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: SERVICE PART

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 09284600

KEY W/ SHIELD

Note: SERVICE PART

$18.99

$

Usually ships in 4-12 days

0

6

Ariens 05079600

IGNITION SWITCH ASM - 2 POS

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 20003127

ECU SERVICE LCT/CSI - 306CC

$284.99

$

Usually ships in 4-12 days

0

8

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06118500

@SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 04992800

HARNESS,WIRE - EFI ECU

$91.99

$

In Stock, only 2 left!

0
