921048 - Ariens Deluxe 28" SHO Snow Blower, Ariens AX 306cc engine (SN: 200000 & Above) Controls - Small Dash Parts Diagram

Deluxe 28" SHO Snow Blower, Ariens AX 306cc engine

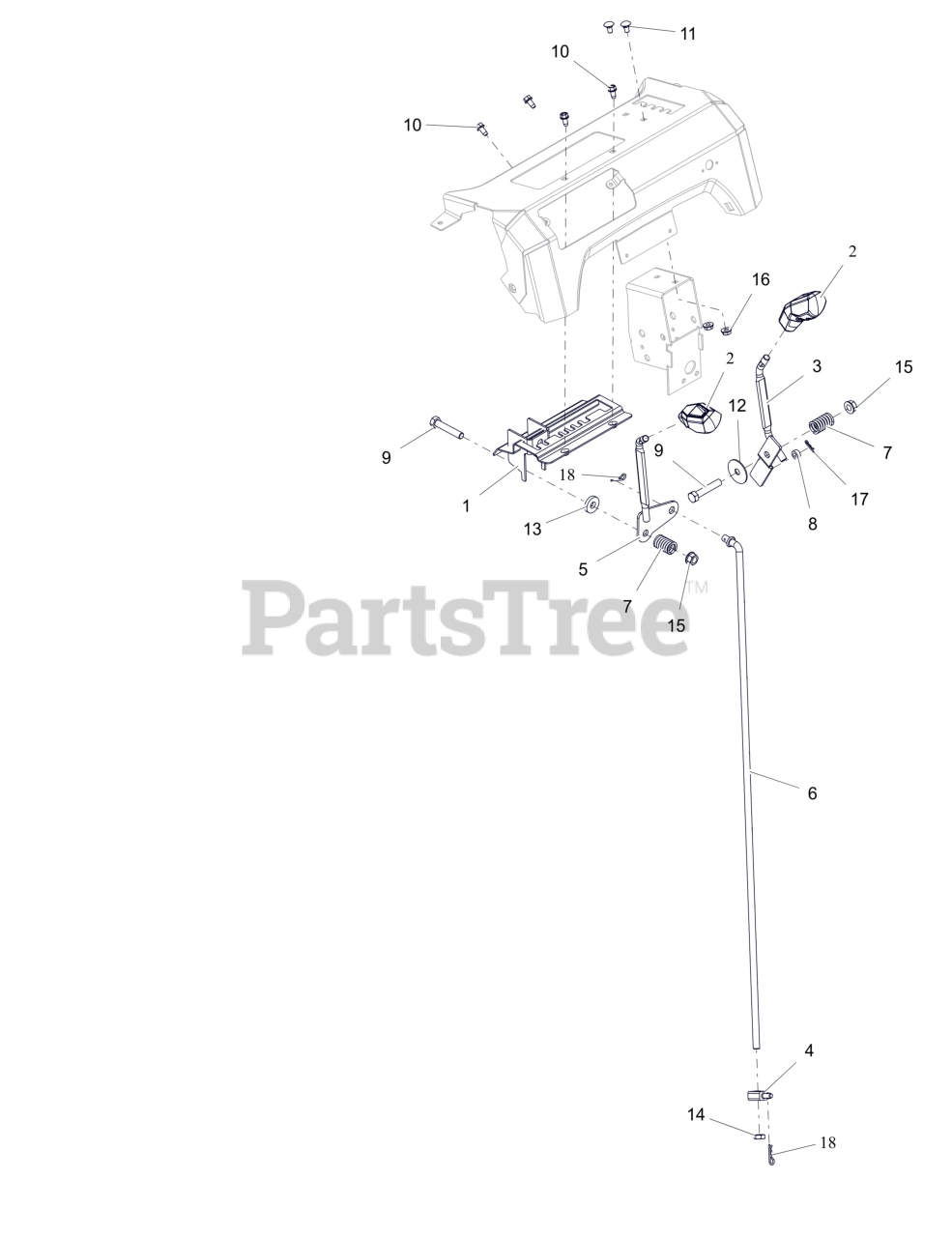

Controls - Small Dash Parts Diagram

  • Title

1

Ariens 04317751

WELDMENT, DETENT PLATE-COMPACT

$

$

Not available

2

Ariens 09382800

KNOB, CONTROL

$11.99

$

In Stock, Qty 5

0

3

Ariens 04846600

WELDMENT,SM DASH DEFL CONTROL

$

$

Not available

4

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 17

0

5

Ariens 04846700

LEVER, CONTROL-SHIFT(WELDMENT)

$

$

Not available

6

Ariens 09167600

ROD, SHIFT - SMALL DASH DELUXE

$28.99

$

In Stock, only 2 left!

0

7

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

8

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 12

0

9

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

10

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

13

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 12

0

18

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0
