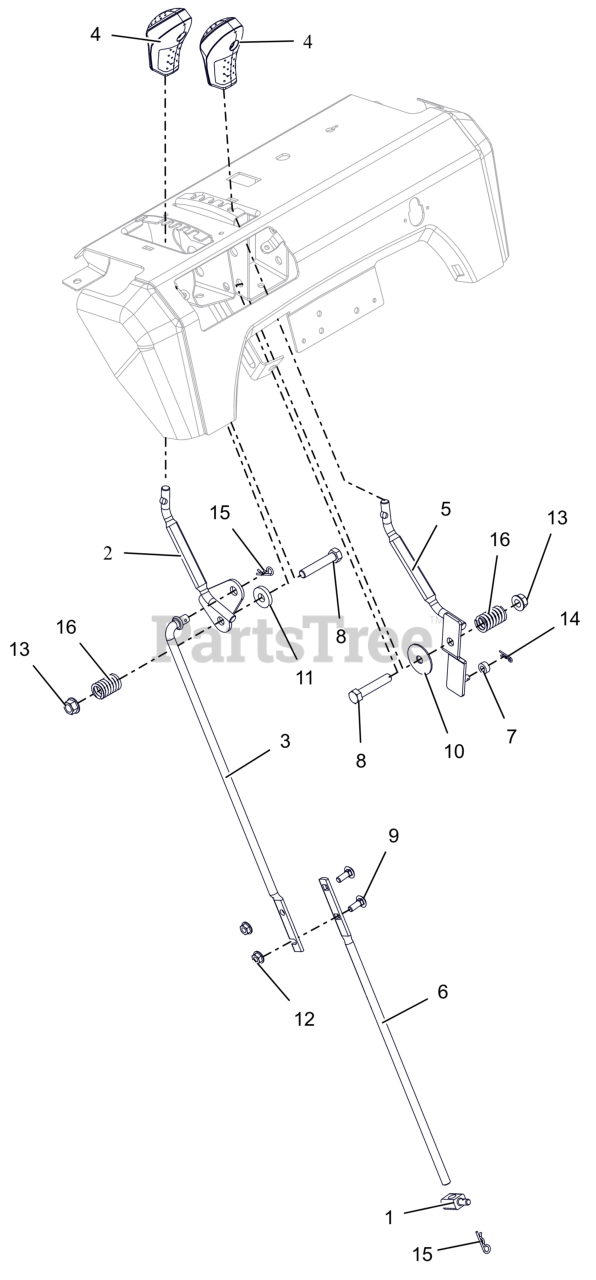

921047 - Ariens Deluxe 30" Snow Blower, Ariens AX 306cc engine (SN: 100000 - 179999) Controls - Large Dash Parts Diagram

Deluxe 30" Snow Blower, Ariens AX 306cc engine

Controls - Large Dash Parts Diagram

  • Title

1

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 17

0

2

Ariens 04846900

WELDMENT,LG DASH SPEED CONTROL

$

$

Not available

3

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 04816300

KNOB, CONTROL, DASH

$7.99

$

In Stock, Qty 11

0

5

Ariens 04846800

WELDMENT,LG DASH DEFL CONTROL

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 04995967

ROD, SHIFT-LOWER (LG DASH DLX)
(Superseded to 04995900)

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 12

0

8

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

9

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

11

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 13

0

15

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0
