921046 - Ariens Deluxe 28" Snow Blower, Ariens AX 254cc engine (SN: 009264 - 034999) Engine, Frame And Belt Drive - AX 254 Parts Diagram

Deluxe 28" Snow Blower, Ariens AX 254cc engine

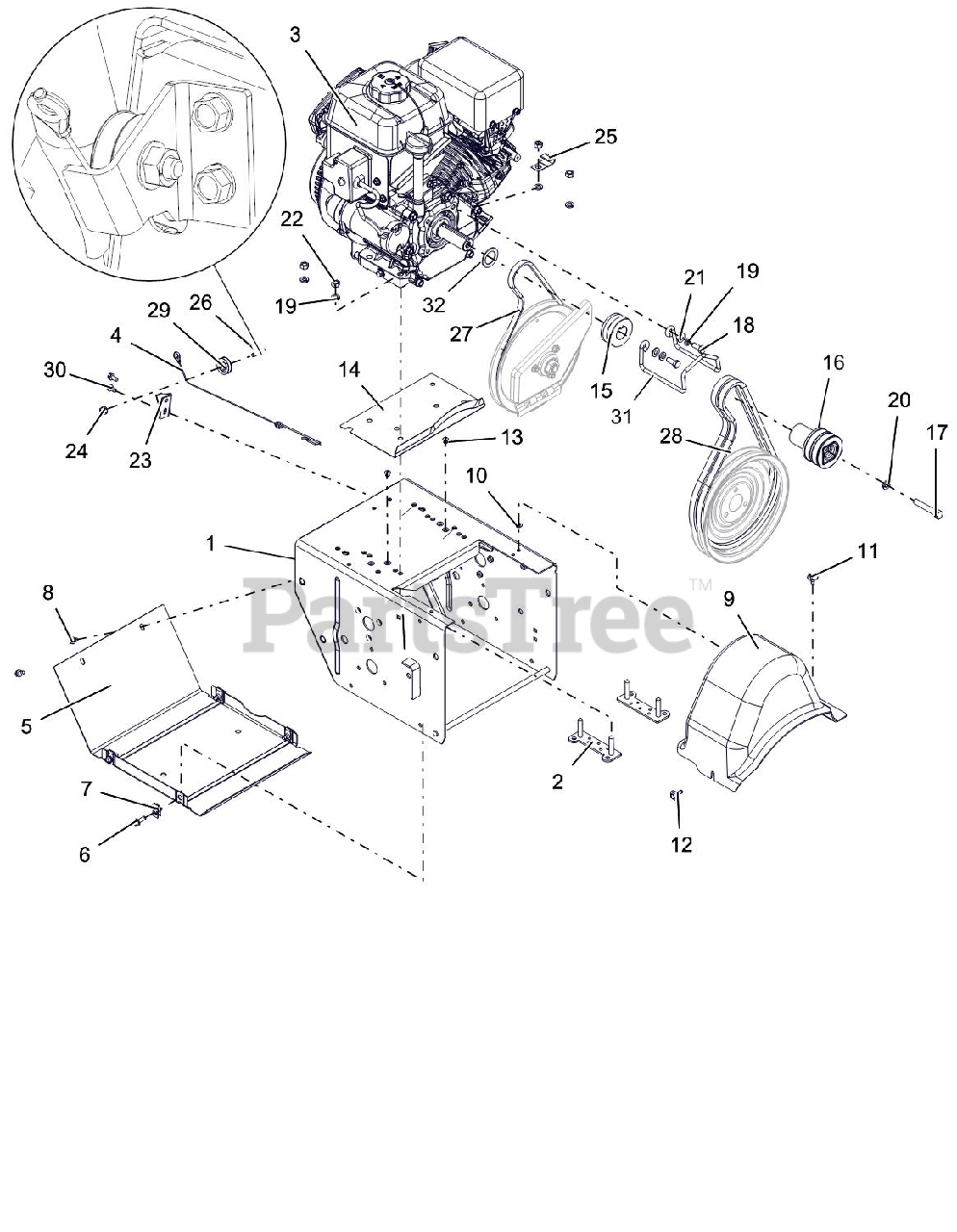

Engine, Frame And Belt Drive - AX 254 Parts Diagram

  • Title

1

Ariens 04984659

FRAME, MAIN-DELUXE(WELDMENT)
(Superseded to 05250559)

$179.99

$

Usually ships in 4-12 days

0

2

Ariens 04999800

STRAP, BOLT - SMALL ENGINE

$

$

Not available

3

Ariens 08201024

ENGINE, AX254 GEN 2 120V/60W

$

$

Not available

4

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, only 4 left!

0

5

Ariens 00375159

COVER, BOTTOM

$82.99

$

Usually ships in 4-12 days

0

6

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 04989200

COVER, BELT-SMALL

$

$

Not available

10

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

11

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

12

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0

14

Ariens 04985351

BAFFLE, WATER-SMALL

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 04999200

SHEAVE, DRIVE
(Superseded to 07348500)

$25.99

$

Usually ships in 4-12 days

0

16

Ariens 04999300

SHEAVE, ATTACHMENT 2-GRV
(Superseded to 04818400)

$23.99

$

Usually ships in 4-12 days

0

17

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

23

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

24

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

26

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

27

Ariens 07200633

V-BELT, 3L-WRAPPED

$17.99

$

In Stock, Qty 20+

0

28

Ariens 07200802

V-BELT, HA-RAW EDGE (SET)

$58.99

$

In Stock, Qty 17

0

29

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

30

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 02968300

FINGER, BELT
(Superseded to 05273200)

$18.99

$

In Stock, only 1 left!

0

32

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0
