921040 - Ariens Platinum 30" SHO Snow Blower, Ariens AX 414cc engine (SN: 100000 & Above) Electrical And Wiring Diagrams Parts Diagram

Platinum 30" SHO Snow Blower, Ariens AX 414cc engine

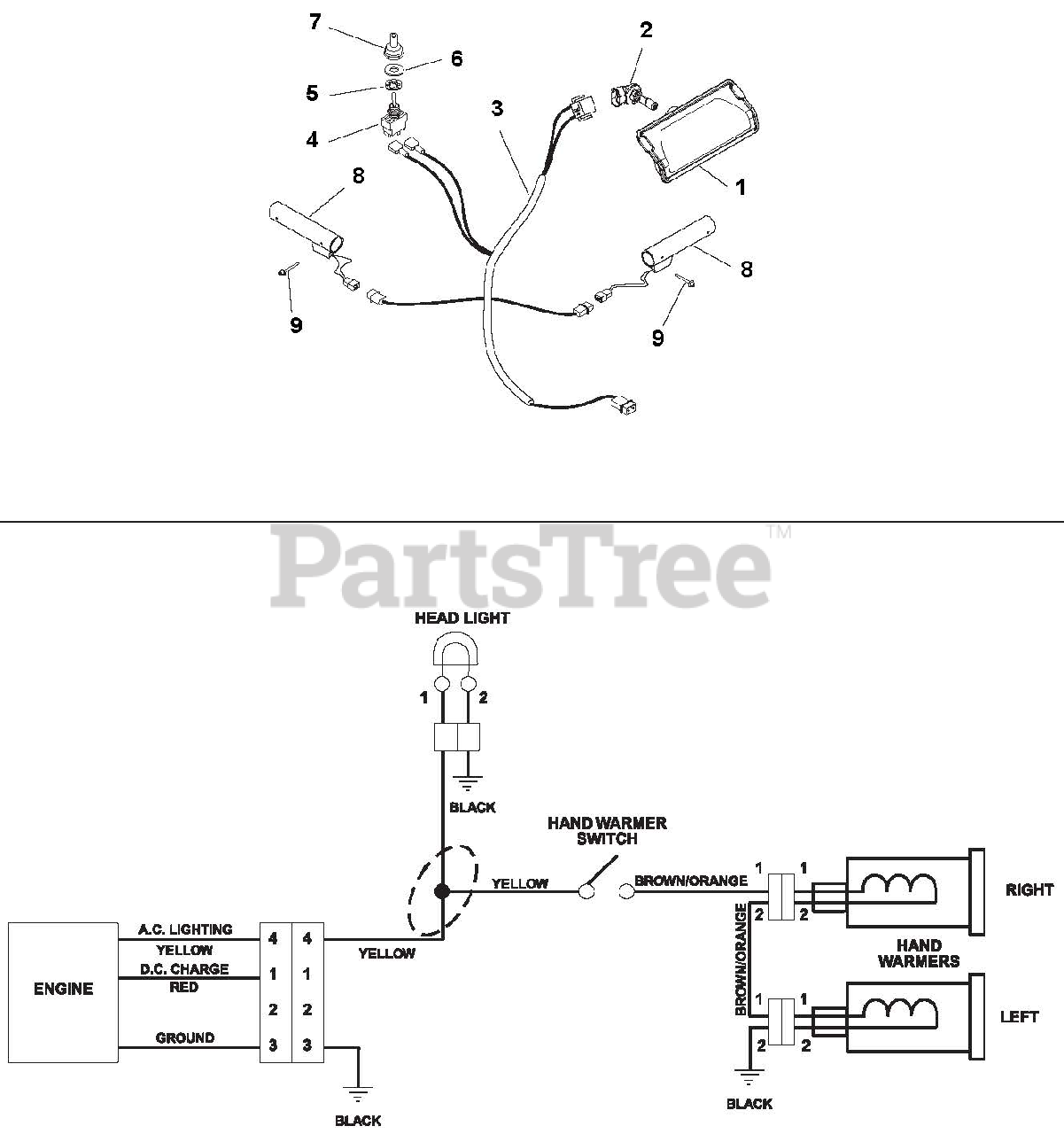

Electrical And Wiring Diagrams Parts Diagram

  • Title
1

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

Note: (Includes Item 2)

$42.99

$

In Stock, Qty 7

0

2

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$14.99

$

In Stock, Qty 7

0

3

Ariens 04329600

HARNESS, LIGHT & WARMER

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0

5

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

$2.49

$

In Stock, only 2 left!

0

6

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

7

Ariens 09207600

BOOT, SWITCH

Note: (Optional)

$45.99

$

Usually ships in 4-12 days

0

8

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

$46.99

$

In Stock, only 2 left!

0

9

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available
