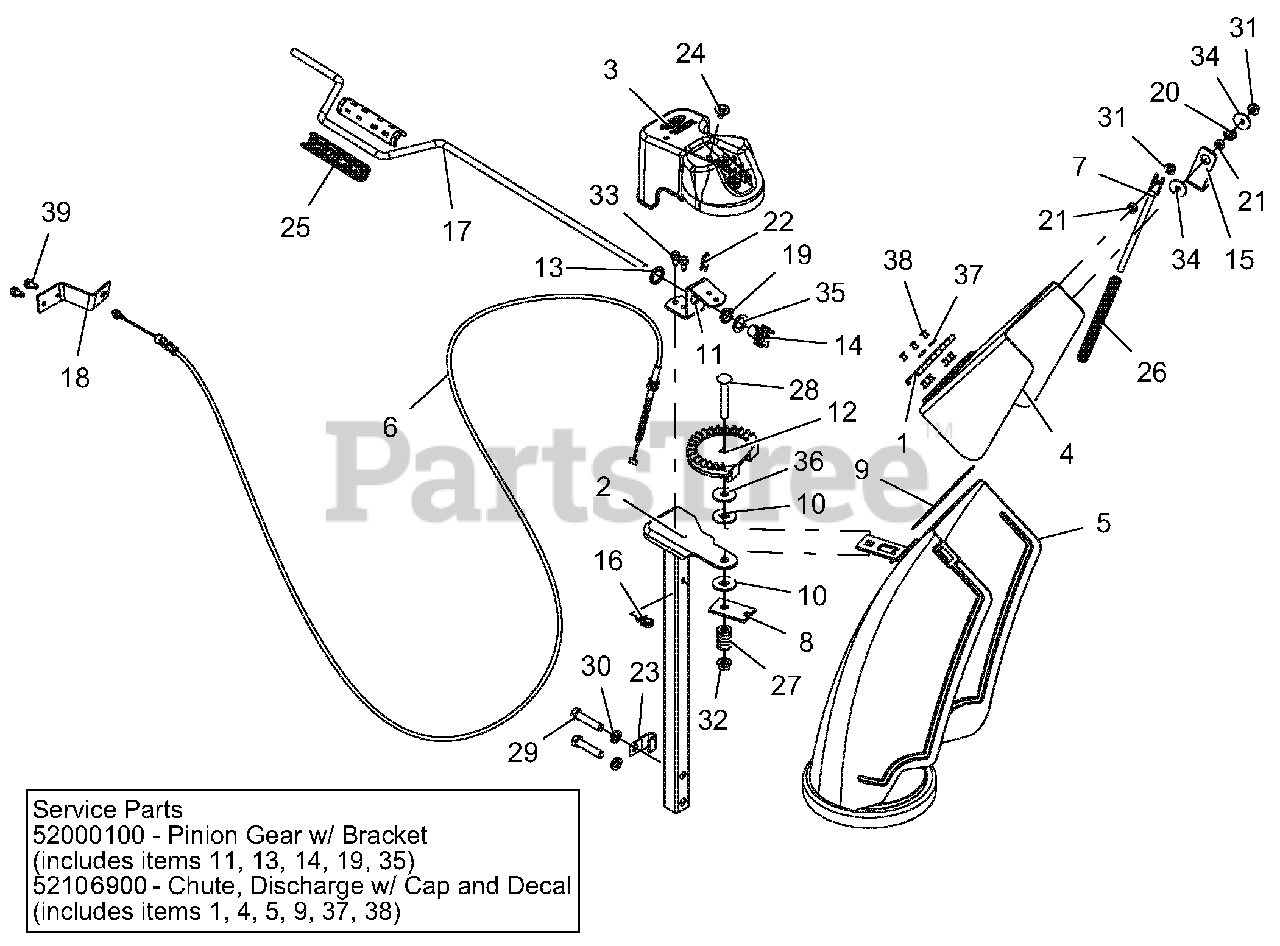

921032 - Ariens Deluxe 30" Snow Blower, Ariens AX engine (SN: 100000 - 149999) Discharge Chute Parts Diagram

Deluxe 30" Snow Blower, Ariens AX engine

Discharge Chute Parts Diagram

  • Title

1

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

2

Ariens 00658351

PEDESTAL, CHUTE - CRANK

$55.99

$

Usually ships in 4-12 days

0

3

Ariens 04456500

GEAR COVER ASSY LG SHEAR BOLT
(Superseded to 52105600)

$

$

Not available

4

Ariens 04750759

CAP,LARGE,REMOTE
(Superseded to 52110100)

$45.99

$

In Stock, only 1 left!

0

5

Ariens 04750959

CHUTE,DISCHARGE,RMT,ID

$79.99

$

Usually ships in 4-12 days

0

6

Ariens 06900614

CABLE, DEFLECTOR - DELUXE

$51.99

$

In Stock, Qty 16

0

7

Ariens 00389000

ROD, DEFLECTOR CAP

$14.99

$

In Stock, only 4 left!

0

8

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 11

0

9

Ariens 00628400

CAP SEAL 5.50

$4.99

$

Usually ships in 4-12 days

0

10

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

11

Ariens 01972451

BRACKET, PINION GEAR

$

$

Not available

12

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 20+

0

13

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 13

0

14

Ariens 03735300

PINION GEAR - CHUTE

$14.99

$

In Stock, only 1 left!

0

15

Ariens 04115359

BRACKET, CABLE ANCHOR

$60.99

$

Usually ships in 4-12 days

0

16

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0

17

Ariens 04749800

ROD, CHUTE CRANK

$

$

Not available

18

Ariens 04754600

ANCHOR, DEFLECTOR CABLE

$13.99

$

Usually ships in 4-12 days

0

19

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 13

0

20

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 20+

0

21

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 12

0

22

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

24

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

25

Ariens 07500020

KNOB, CRANK-SNAP

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.49

$

In Stock, Qty 9

0

27

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 19

0

28

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

29

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

36

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$

$

Not available

38

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 14

0

39

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
