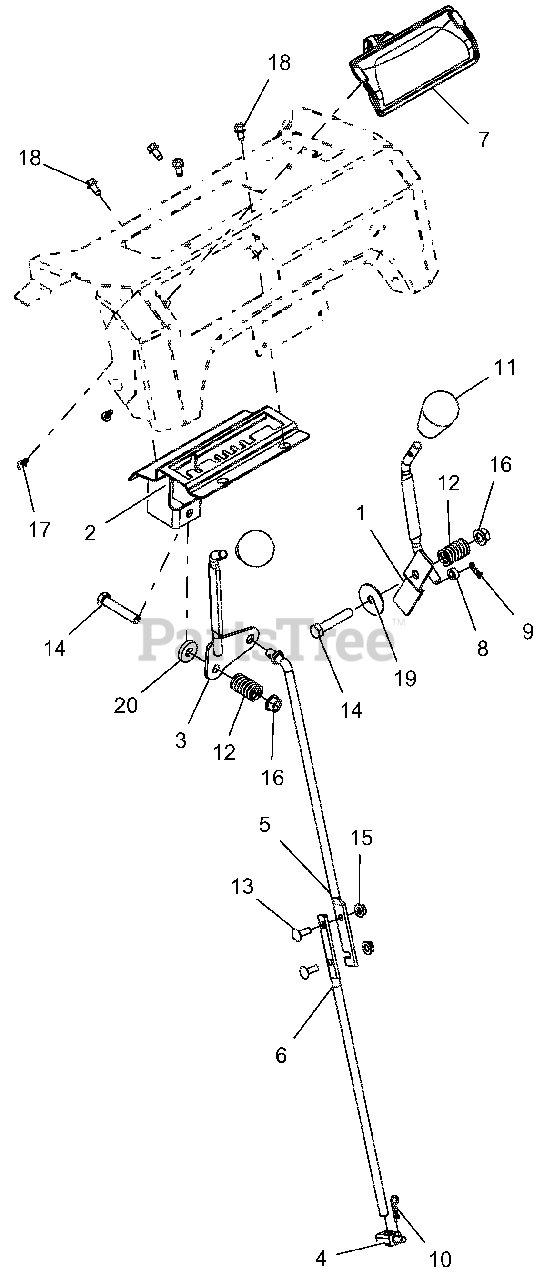

921030 - Ariens Deluxe 28" Snow Blower, Ariens AX 254cc engine (SN: 100000 - 149999) Controls Parts Diagram

Deluxe 28" Snow Blower, Ariens AX 254cc engine

Controls Parts Diagram

  • Title
1

Ariens 04317300

WELDMENT, CONTROL LEVER (DEFL)

Note: (DEFL)

$37.99

$

Usually ships in 4-12 days

0

2

Ariens 04317751

WELDMENT, DETENT PLATE-COMPACT

$

$

Not available

3

Ariens 04321700

LEVER, CONTROL-SHIFT(WELDMENT)
(Superseded to 04846700)

Note: (SHIFT)

$

$

Not available

4

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

Note: (TRUNN)

$7.99

$

In Stock, Qty 14

0

5

Ariens 04334967

ROD, SHIFT - UPPER
(Superseded to 04334900)

$34.99

$

Usually ships in 4-12 days

0

6

Ariens 04425767

ROD, SHIFT - LOWER

Note: (BLACK)

$24.99

$

Usually ships in 4-12 days

0

7

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 7

0

8

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 10

0

9

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

10

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 07500209

KNOB,SOFT TEARDROP,PUSH-ON GRY

$10.99

$

Usually ships in 4-12 days

0

12

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

14

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

15

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

20

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0
