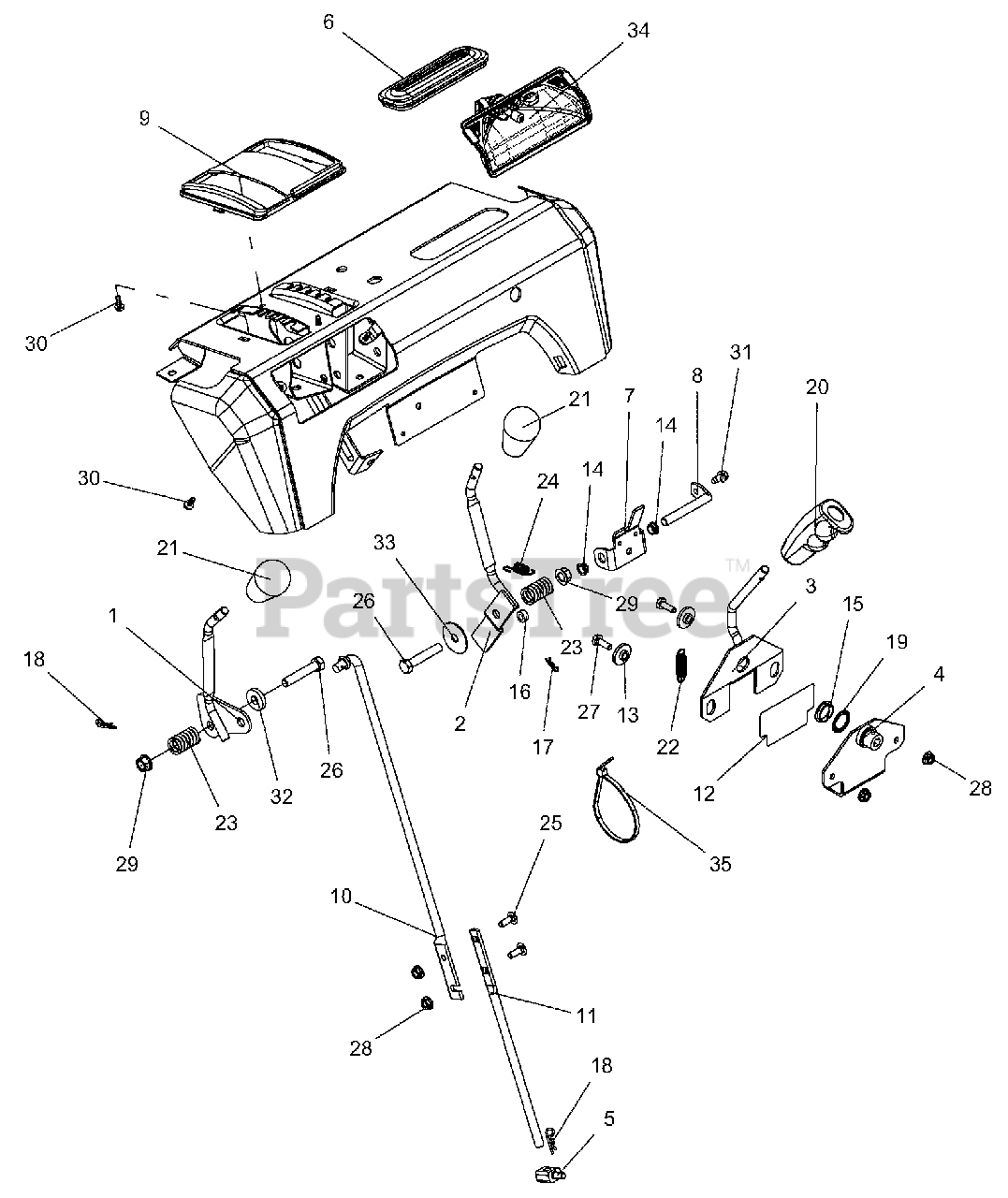

921028 - Ariens Deluxe Platinum 24" Snow Blower, Ariens AX 291cc engine (SN: 000101 & Above) Controls - Quick Turn Parts Diagram

Deluxe Platinum 24" Snow Blower, Ariens AX 291cc engine

Controls - Quick Turn Parts Diagram

  • Title

1

Ariens 04320200

WELDMENT, CONTROL LEVER(SHIFT)

Note: (SHIFT)

$26.99

$

Usually ships in 4-12 days

0

2

Ariens 04320300

WELDMENT, CONTROL LEVER (DEFL)

Note: (DEFL)

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 04321800

LEVER, CHUTE CONTROL

$

$

Not available

4

Ariens 00184800

MOUNT, CHUTE CONTROL

$58.99

$

Usually ships in 4-12 days

0

5

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

Note: (TRUNN)

$7.99

$

In Stock, Qty 17

0

6

Ariens 04318600

GROMMET-BOOT, QUICKTURN

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 04320400

BRACKET, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

9

Ariens 04323300

BEZEL, SHIFT

$21.99

$

Usually ships in 4-12 days

0

10

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

11

Ariens 04343867

ROD, SHIFT - LOWER

$24.99

$

Usually ships in 4-12 days

0

12

Ariens 04532300

TAPE, DIE CUT - QUICK TURN

$

$

Not available

13

Ariens 05500004

BSHG-FLG .265X.448X.243X1.00

$3.49

$

In Stock, only 4 left!

0

14

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

15

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

16

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 12

0

17

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

18

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07000036

NUT, PUSH -.75" SHAFT

$

$

Not available

20

Ariens 07500205

CONTROL HANDLE, QUICK TURN

$9.99

$

In Stock, only 1 left!

0

21

Ariens 07500209

KNOB,SOFT TEARDROP,PUSH-ON GRY

$10.99

$

Usually ships in 4-12 days

0

22

Ariens 08310900

SG-TENS .048X.44X1.75 WLD 9

$5.99

$

In Stock, Qty 11

0

23

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

24

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 19

0

25

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

27

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

33

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

34

Ariens 04307600

HEADLIGHT ASSY, HALOGEN 20W
(Superseded to 04812300)

$42.99

$

In Stock, Qty 9

0

35

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available
