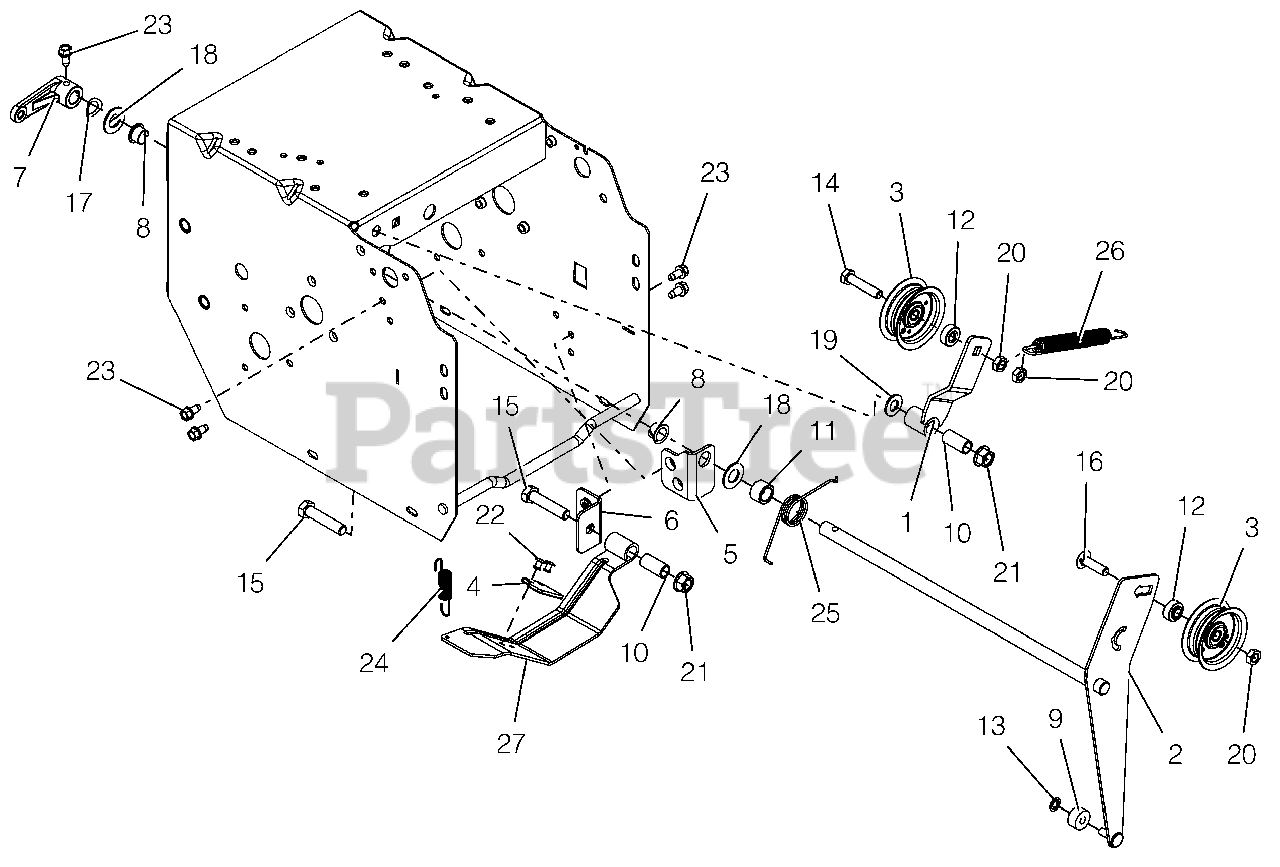

921026 - Gravely 28" Power Brush, Subaru (SN: 057000 & Above) Brake And Idlers Parts Diagram

28" Power Brush, Subaru

Brake And Idlers Parts Diagram

  • Title
1

Gravely 00493667

ARM, TRACTION IDLER
(Superseded to 00493600)

$16.99

$

Usually ships in 4-12 days

0

2

Gravely 04892167

WELDMENT, ATTACHMENT IDLER ARM
(Superseded to 04892100)

$37.99

$

Usually ships in 4-12 days

0

3

Gravely 07338900

IDLER, FLAT - 2.00"

$22.99

$

In Stock, only 1 left!

0

4

Gravely 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 7

0

5

Gravely 00495051

BRACKET, MOUNT - IDLER ARM

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

8

Gravely 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

10

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05501115

SPCR, BRG .315X.500X.358X.281

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

14

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

15

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06200124

BLT-RDHDSQSHNK.31-18X1.13 G5YZ
(Superseded to 06200334)

$

$

Not available

17

Gravely 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

18

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

21

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0

23

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 08300104

SPRING-EXT .437 X .438 X 2.64

$3.49

$

In Stock, Qty 5

0

25

Gravely 08300326

SG-TORS .075 X .955

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 08300538

SPRING, SWIVEL HOOK EXTENSION

$14.99

$

In Stock, Qty 20+

0

27

Gravely 52000500

BRAKE ARM W/PAD

$22.99

$

In Stock, only 1 left!

0
