921026 - Gravely 28" Power Brush, Subaru (SN: 055000 - 055999) Brush Frame Parts Diagram

28" Power Brush, Subaru

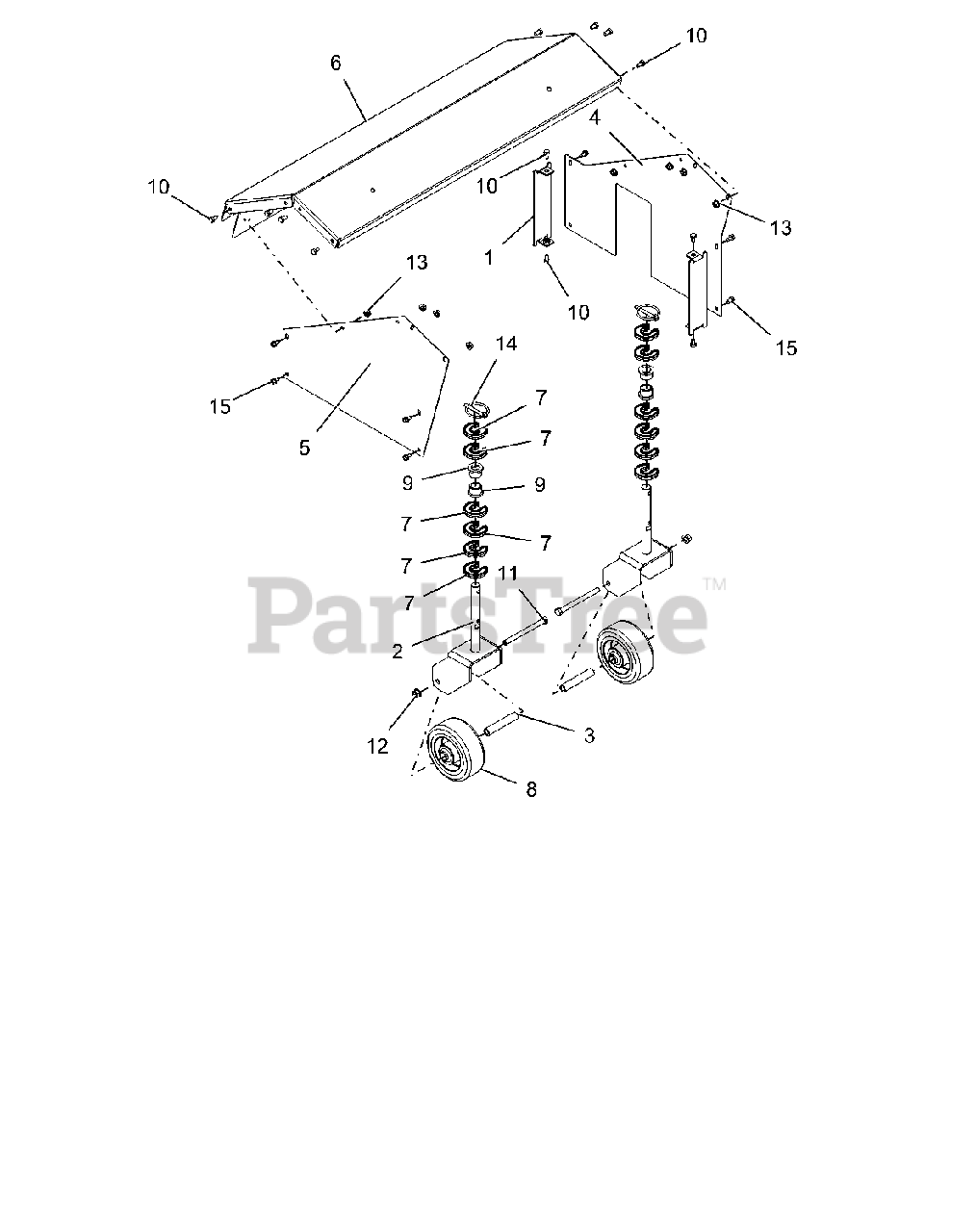

Brush Frame Parts Diagram

  • Title

1

Gravely 00267451

COVER,END

Note: BLACK

$16.99

$

Usually ships in 4-12 days

0

2

Gravely 03278551

FORK, CASTER-BRUSH
(Superseded to 09484251)

Note: BLACK

$62.99

$

Usually ships in 4-12 days

0

3

Gravely 00188000

SPACER, CASTER WHEEL

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 00256653

COVER, LH SIDE-BRUSH

Note: RED

$50.99

$

Usually ships in 4-12 days

0

5

Gravely 00258153

COVER, RH SIDE-BRUSH

Note: RED

$50.99

$

Usually ships in 4-12 days

0

6

Gravely 00261500

COVER, TOP-28" BRUSH

Note: RED

$

$

Not available

7

Gravely 03265100

CLIP-HOC FIXED

$3.49

$

In Stock, only 4 left!

0

8

Gravely 07101101

WHEEL, CASTER - 5"OD

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 03985500

BUSHING, FLANGE .75X.75X1.0

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05970400

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06700204

PIN, LYNCH - .25 X 1.25
(Superseded to 06700226)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
