921026 - Gravely 28" Power Brush, Subaru (SN: 042000 - 054999) Handlebars And Controls Parts Diagram

28" Power Brush, Subaru

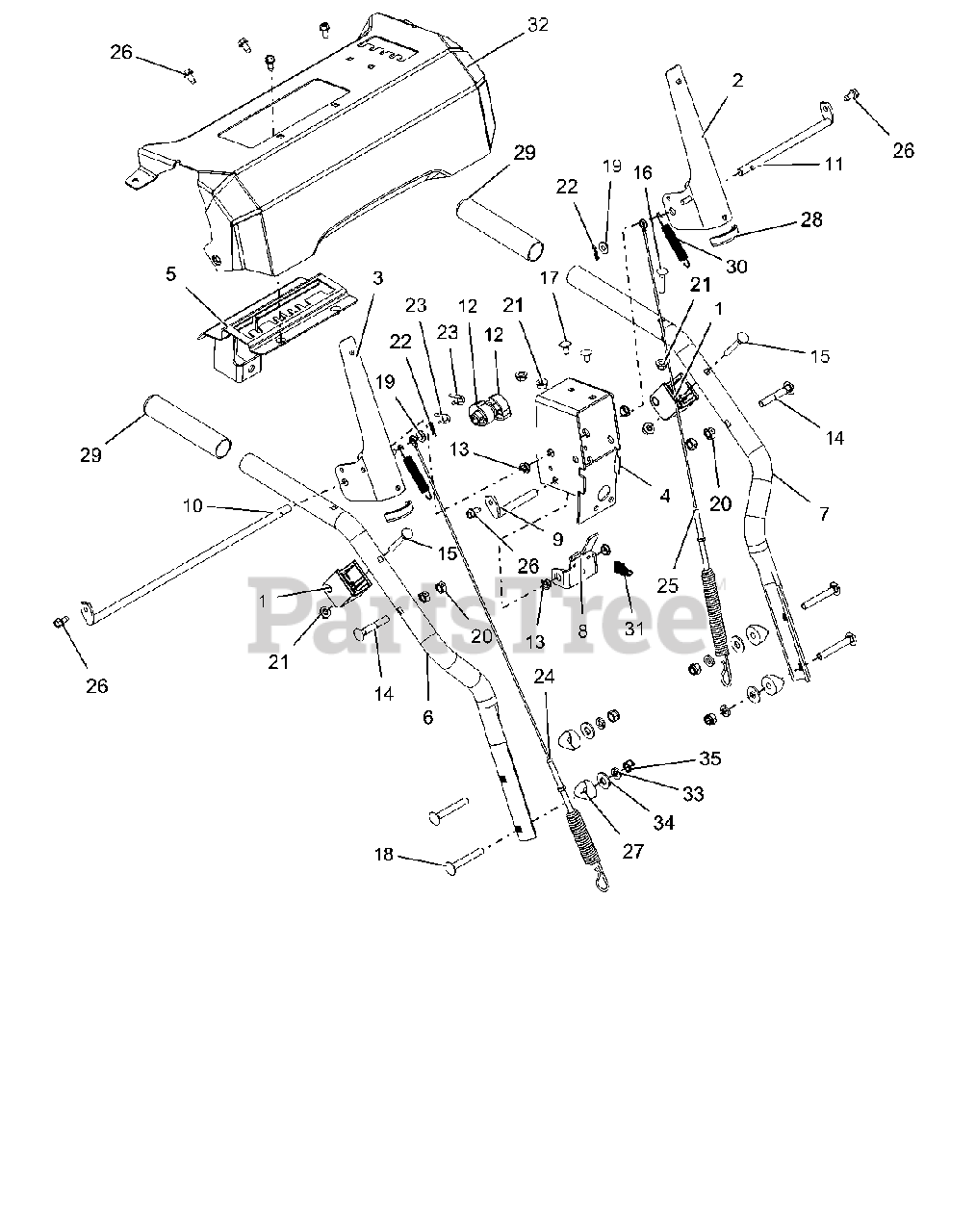

Handlebars And Controls Parts Diagram

  • Title

1

Gravely 04310100

BLOCK, CLUTCH HANDLE
(Superseded to 05193600)

$

$

Not available

2

Gravely 04310451

WLDMT, CLUTCH HANDLE - LH

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 04310551

WLDMT, CLUTCH HANDLE - RH

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 04316651

WLDMT, BRKT - INTERLOCK

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 04317751

WLDMT, DETENT PLATE-COMPACT

$

$

Not available

6

Gravely 04318351

HANDLEBAR, UPPER - RH

$37.99

$

In Stock, only 2 left!

0

7

Gravely 04318451

HANDLEBAR, UPPER - LH

$37.99

$

Usually ships in 4-12 days

0

8

Gravely 04320400

BRKT, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

10

Gravely 04321500

ROD, PADDLE MOUNT - LONG

$19.99

$

Usually ships in 4-12 days

0

11

Gravely 04321600

ROD, PADDLE MOUNT - SHORT

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 04322100

CAM, INTERLOCK

$3.99

$

In Stock, Qty 7

0

13

Gravely 05500020

BSHG, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06200207

BLT, RDHD XLSQNK .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06209300

BLT, RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06220100

BLT, RDHDXLSQNK .25-20X1.25 G5YZ

$2.49

$

In Stock, only 2 left!

0

17

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5 Y
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5 Y
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 15

0

23

Gravely 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06900439

CABLE, AUGER (DELUXE & PRO)

$28.99

$

In Stock, Qty 20+

0

25

Gravely 06900502

CABLE, UPPER TRACTION

$31.99

$

In Stock, Qty 20+

0

26

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07500005

SPCR, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07500103

STRIP, EDGE - CLUTCH HANDLE

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 07500336

GRIP, HANDLE

$3.49

$

In Stock, Qty 10

0

30

Gravely 08300527

SPRG, EXTENSION

$3.49

$

In Stock, Qty 12

0

31

Gravely 08337000

SPRG, EXTENSION

$5.99

$

In Stock, Qty 20+

0

32

Gravely 52004600

PANEL, CONTROL - W/DECAL 08000736

$156.99

$

Usually ships in 4-12 days

0

33

Gravely 06307400

WSHR-LK .31X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
