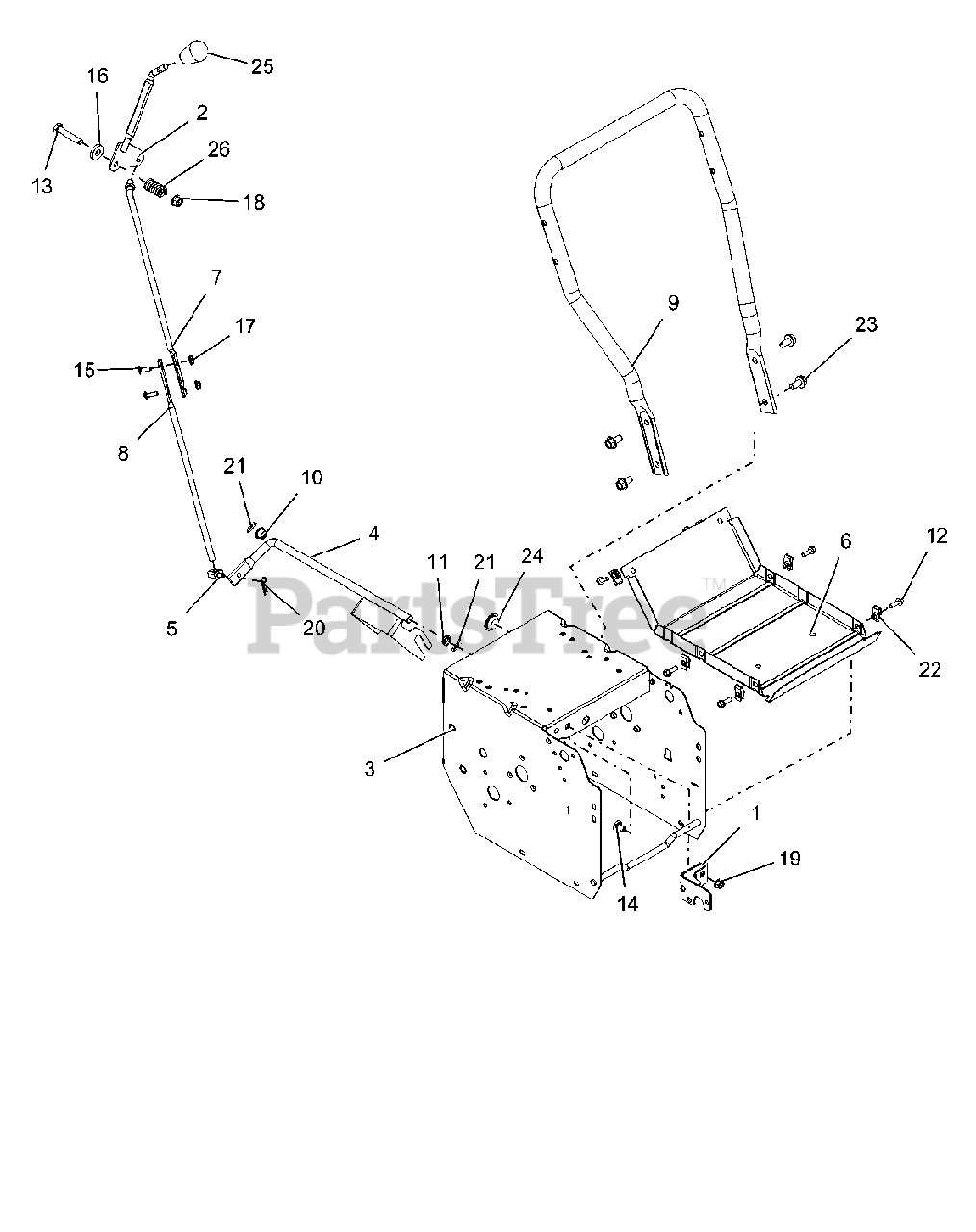

921026 - Gravely 28" Power Brush, Subaru (SN: 042000 - 054999) Frame And Shift Controls Parts Diagram

28" Power Brush, Subaru

Frame And Shift Controls Parts Diagram

  • Title

1

Gravely 00657053

WLDMT, FRAME BRKT

$30.99

$

Usually ships in 4-12 days

0

2

Gravely 04321700

LEVER, CONTROL - SHIFT (WELDMENT)
(Superseded to 04846700)

$

$

Not available

3

Gravely 04585053

WELDMENT, FRAME - DELUXE 16"

$

$

Not available

4

Gravely 04655300

WLDMT, SHIFT FORK

$45.99

$

Usually ships in 4-12 days

0

5

Gravely 00386700

PIVOT, SHIFT ROD .375-16 (TRUNN)

$7.99

$

In Stock, Qty 18

0

6

Gravely 00492353

COVER, BOTTOM

$

$

Not available

7

Gravely 04334967

ROD, SHIFT UPPER
(Superseded to 04334900)

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 04425767

ROD, SHIFT - LOWER (BLACK)

$24.99

$

Usually ships in 4-12 days

0

9

Gravely 04749451

HANDLEBAR, LOWER - SM DELUXE

$102.99

$

Usually ships in 4-12 days

0

10

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05500028

BSHG, POLYLINER - .50 SNAP-IN

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05900019

BLT-HEX .25-20X.75 HWH YWZC GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

14

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 06500710

NUT, LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06713500

PIN, HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07009000

NUT, RTNR .25-20 X .56

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07500023

PLUG, HOLE - .875"

$1.49

$

Usually ships in 4-12 days

0

25

Gravely 07500224

KNOB, SOFT TEARDROP, PUSH-ON BLK

$

$

Not available

26

Gravely 08335700

SPRG, COMPRESSION

$9.49

$

In Stock, only 1 left!

0
