921026 - Gravely 28" Power Brush, Subaru (SN: 042000 - 054999) Brush Drive Unit Parts Diagram

28" Power Brush, Subaru

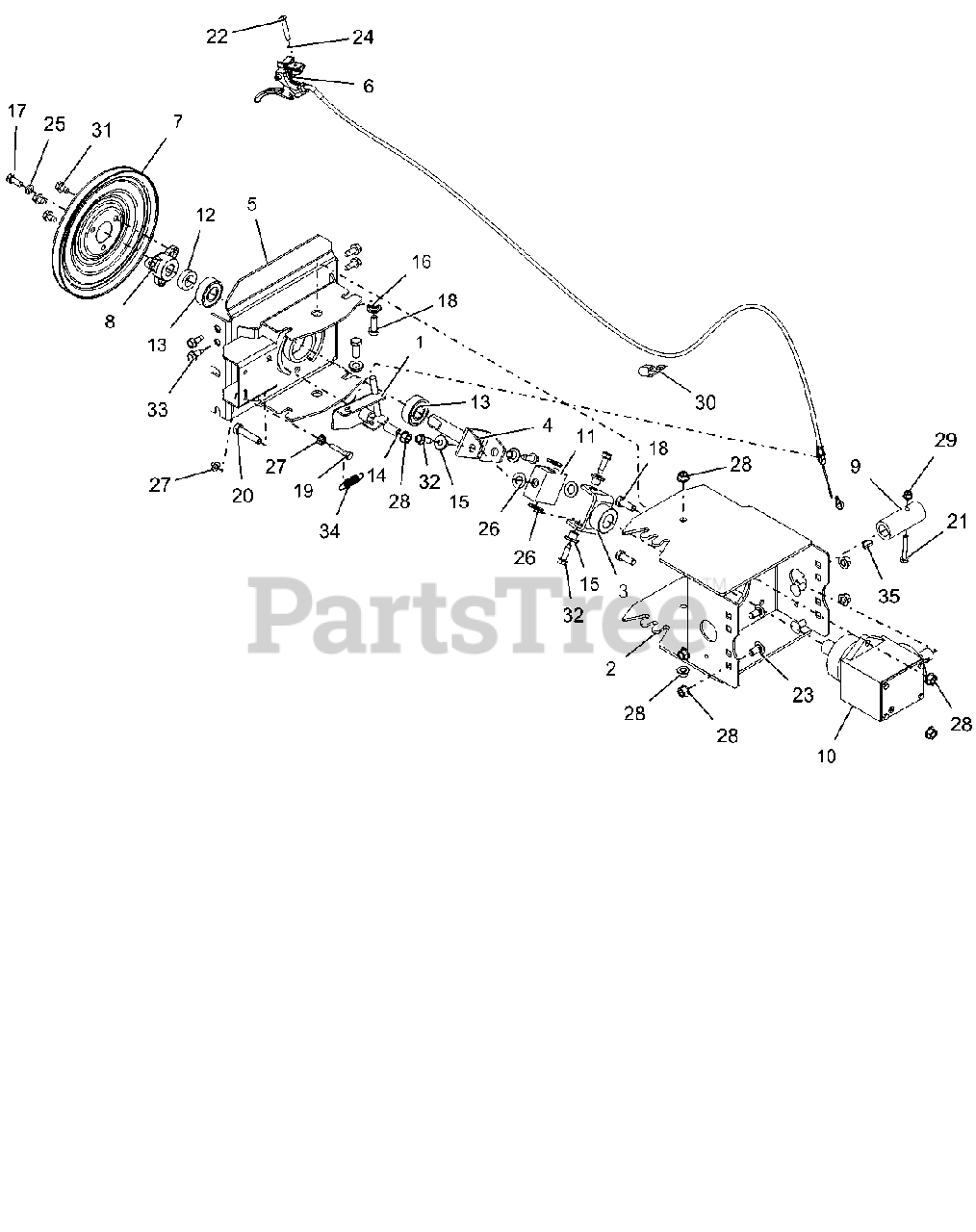

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 00262251

ARM, PIVOT LOCK (BLACK)

$

$

Not available

2

Gravely 02998351

ADAPTOR, BRUSH FRAME (BLACK)

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 02999751

JOINT,UNIVERSAL (BLACK)

$39.99

$

In Stock, only 1 left!

0

4

Gravely 03100051

JOINT, UNIVERSAL (BLACK)

$45.99

$

In Stock, only 2 left!

0

5

Gravely 03295351

ADAPTOR, FRAME -20000 SERIES (BLACK)

$168.99

$

Usually ships in 4-12 days

0

6

Gravely 06900517

CABLE, REMOTE BRUSH LOCK

$52.99

$

In Stock, only 2 left!

0

7

Gravely 00268900

PULLEY, SPIN FORM SINGLE GROOVE
(Superseded to 00268951)

$

$

Not available

8

Gravely 00268901

HUB, ATTACHMENT PULLEY

$9.49

$

In Stock, only 1 left!

0

9

Gravely 00297800

HUB, COUPLING

$58.99

$

Usually ships in 4-12 days

0

10

Gravely 02499300

GEARBOX, 1:1 CCW-CW W/CRSBOR

$408.99

$

Usually ships in 4-12 days

0

11

Gravely 03291400

BLOCK, UNV

$71.99

$

In Stock, only 1 left!

0

12

Gravely 03634600

SPACER, .755x1.250x.370

$7.99

$

Usually ships in 4-12 days

0

13

Gravely 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

14

Gravely 05500106

BSHG, SLV .385 X .500 X 1.045

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05514900

BSHG, FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

16

Gravely 05515800

BSHG, FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

17

Gravely 05947300

BLT-HEX .31-24X.75 GR5 YWZC
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

20

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

22

Gravely 06100007

SCR, -- MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5 YWZC
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

24

Gravely 06305200

WSHR, LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 06307400

WSHR-LK .31X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06418100

WSHR-HDND .515X.970X.062

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 5

0

31

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 07413900

SCR-TAP .31-18X1.00 HWH TR YZ
(Superseded to 07400202)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

34

Gravely 08300029

SPRG, EXTENSION

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 06600300

KEY, WDRF - .188X.75X.313 REV

$1.49

$

In Stock, Qty 11

0
