921026 - Gravely 28" Power Brush, Subaru (SN: 040000 - 041999) Engine And Belt Drive Parts Diagram

28" Power Brush, Subaru

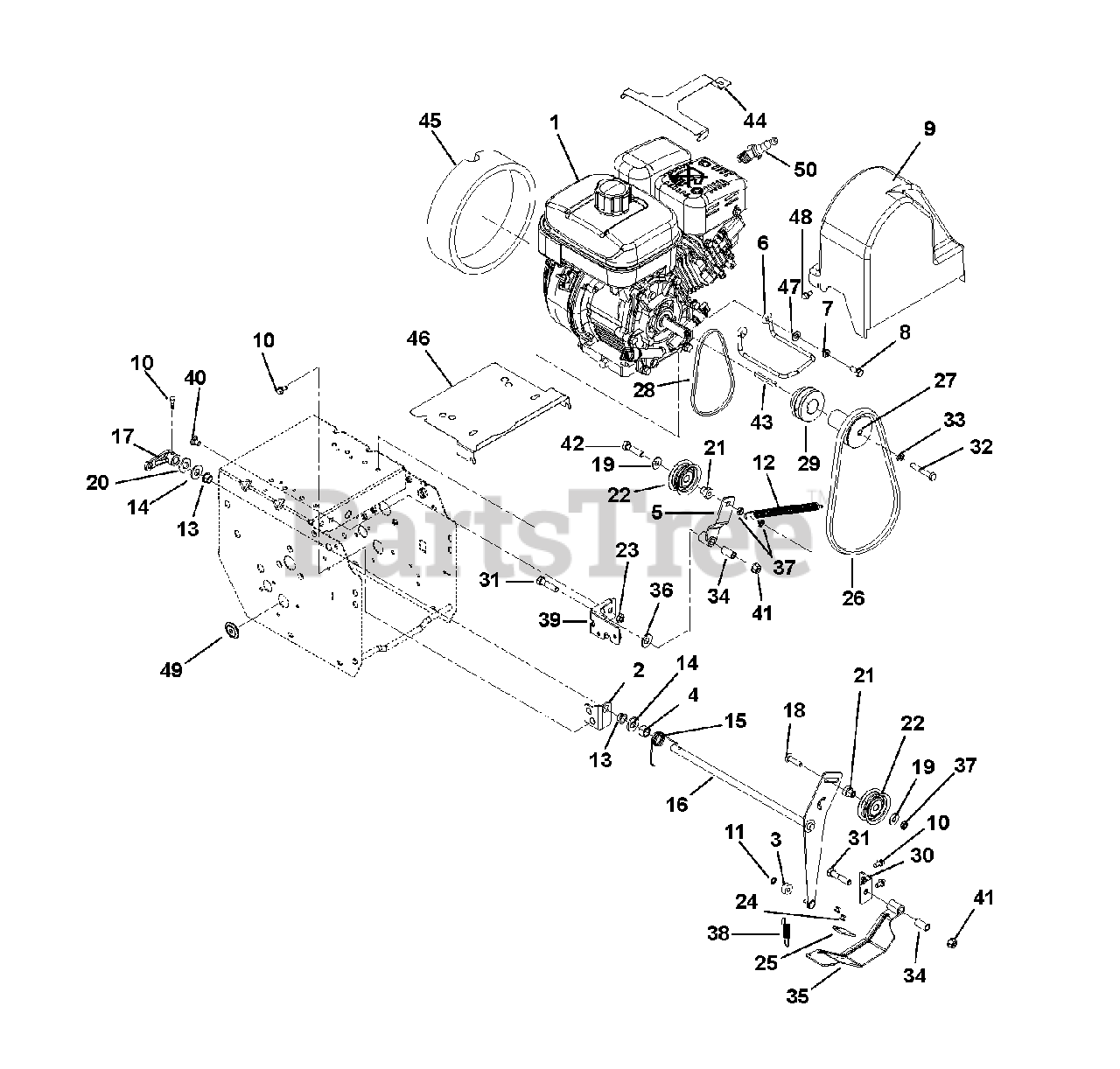

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 08200611

Engine, Subaru EX17 All Season 120V

$

$

Not available

2

Gravely 00495051

Bracket, Mount – Idler Arm

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 05500037

Bushing, Sleeve

$

$

Not available

4

Gravely 05500107

Bushing, Sleeve

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00493600

Traction Idler Arm

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 03731800

Belt Finger

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 06307400

Washer, Lock .31 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05947300

Bolt, Hex .31-24 x .75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04209900

Belt Cover

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05717600

Ring, Retaining, External .250 x .010

$0.99

$

In Stock, Qty 17

0

12

Gravely 08300528

Spring
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

13

Gravely 05500026

Bushing, Polyliner

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06425300

Washer, Flat Steel .531 x 1.00 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 08300326

Spring

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 00495167

Attachment Idler Arm
(Superseded to 04892167)

$37.99

$

Usually ships in 4-12 days

0

17

Gravely 01987100

Arm, Clutch, Attachment

$

$

Not available

18

Gravely 06200124

Bolt, Round Head Square Short Neck .31-18 x 1.13
(Superseded to 06200334)

$

$

Not available

19

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06400005

Washer, Wave

$2.99

$

In Stock, only 2 left!

0

21

Gravely 01213100

Spacer

$3.49

$

In Stock, only 2 left!

0

22

Gravely 02457400

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

23

Gravely 06543100

Nut, Locking, Top, Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06800028

Rivet, Pop .187 (Included with Item 35)
(Superseded to 06800140)

Note: (Included with Item 35)

$0.99

$

In Stock, Qty 7

0

25

Gravely 00180500

Brake Pad (Included with Item 35)

Note: (Included with Item 35)

$10.99

$

In Stock, Qty 7

0

26

Gravely 07238500

V-Belt, Attachment

$29.99

$

In Stock, Qty 20+

0

27

Gravely 04502900

Sheave, Attachment

$

$

Not available

28

Gravely 07200111

V-Belt, Traction

$22.99

$

In Stock, Qty 20+

0

29

Gravely 00187900

Pulley, Traction

$77.99

$

Usually ships in 4-12 days

0

30

Gravely 00495251

Bracket, Mount, Brake

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 05958500

Bolt, Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05901401

Bolt, Hex .31-24 x 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

33

Gravely 06307400

Washer, Lock .31 x .097
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 05500106

Bushing, Sleeve

$1.99

$

In Stock, Qty 20+

0

35

Gravely 52000500

Brake Arm w/Pad (Includes Items 24 and 25)

Note: (Includes Items 24 and 25)

$22.99

$

In Stock, only 1 left!

0

36

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06500011

Nut, Locking Center Jam .31-18
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

38

Gravely 08300104

Spring

$3.49

$

In Stock, Qty 5

0

39

Gravely 00657051

Frame Bracket

$30.99

$

Usually ships in 4-12 days

0

40

Gravely 06212200

Bolt, Round Head Square Short Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 05952400

Bolt, Hex .31-18 x 1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

43

Gravely 06606100

Key, Square .188 x .75 x .188

$3.99

$

In Stock, Qty 11

0

44

Gravely 04258451

Guard, Snow

$

$

Not available

45

Gravely 03972500

Foam Cover, Recoil

$20.99

$

Usually ships in 4-12 days

0

46

Gravely 03880851

Baffle

$64.99

$

Usually ships in 4-12 days

0

47

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 07400108

Screw, Tapping Captive .25-20 x .50

$2.49

$

Usually ships in 4-12 days

0

49

Gravely 07500023

Plug, Hole

$1.49

$

Usually ships in 4-12 days

0

50

Gravely 21530400

Spark Plug

$

$

Not available
