921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Friction Drive Parts Diagram

28" Power Brush, Subaru

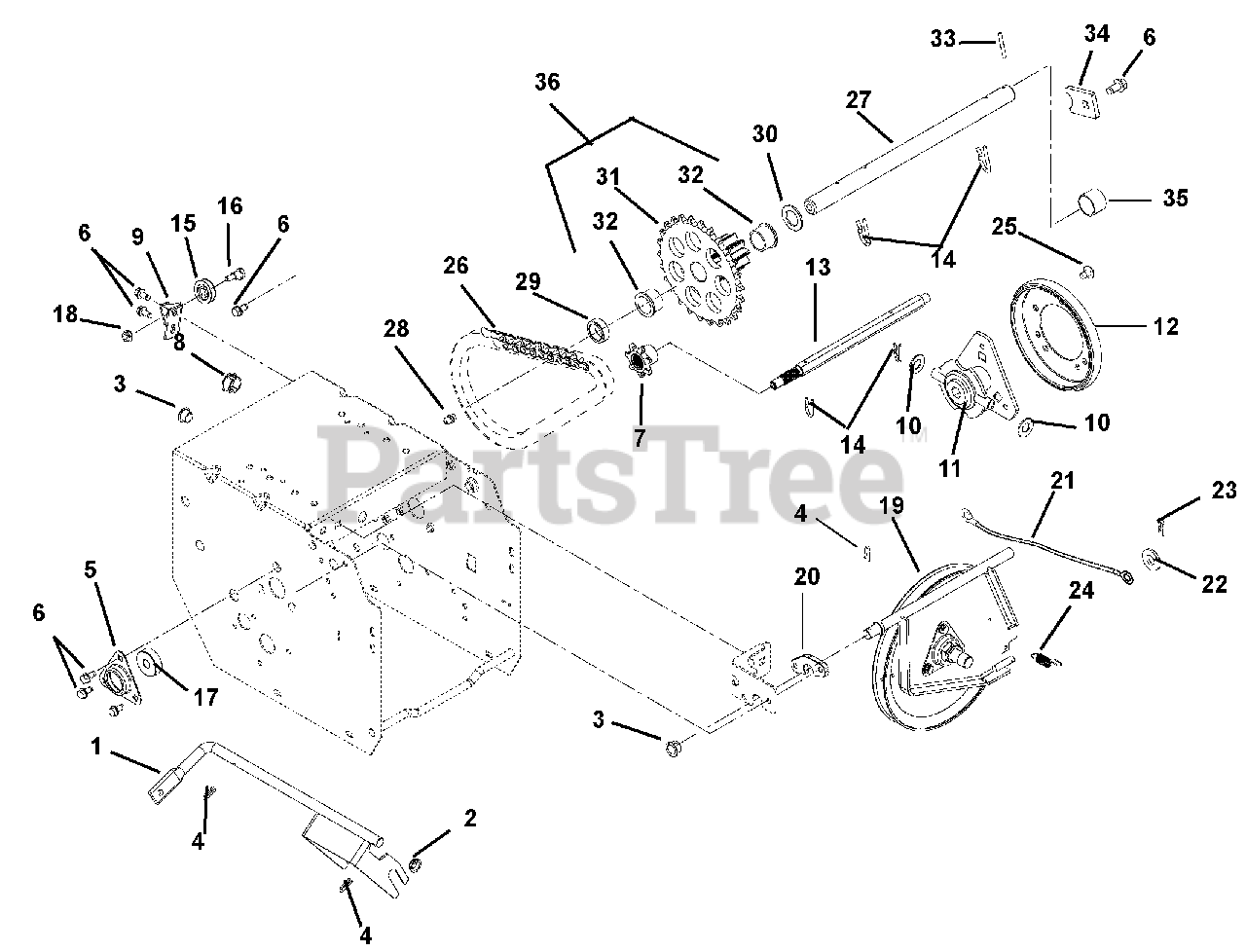

Friction Drive Parts Diagram

  • Title

1

Gravely 00494051

Weldment, Shift Fork

$82.99

$

Usually ships in 4-12 days

0

2

Gravely 05500028

Bushing, Polyliner-.50 Snap-in

$2.49

$

In Stock, Qty 20+

0

3

Gravely 05500026

Bushing, Polyliner-.50 Split

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

5

Gravely 07400034

2 Flange, Bearing
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 07400034

Screw, Tapping Hex Washer Head .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04092600

Spocket, Pinion, 7 Tooth w/Spline
(Superseded to 09478400)

$

$

Not available

8

Gravely 07500023

Plug, Hole- .875" Nylon (017, 018, 023, 304, 307, 308, 309, 311)

Note: (017, 018, 023, 304, 307, 308, 309, 311)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 00373051

Bracket, Cable Pulley
(Superseded to 00373000)

$

$

Not available

10

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00383100

Carrier, Drive Disc

$117.99

$

In Stock, Qty 11

0

12

Gravely 00170800

Friction Disc
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

13

Gravely 04149500

Hex Shaft w/spline

$31.99

$

In Stock, Qty 8

0

14

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07300120

Pulley, Cable

$

$

Not available

16

Gravely 07000021

Bolt, Shoulder .375 x .375 x .25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

17

Gravely 05435200

Bearing, Ball

$9.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 52100200

Plate, Swing Assembly

$113.99

$

In Stock, Qty 5

0

20

Gravely 05500113

Spacer, Swing Gate

$5.99

$

In Stock, only 1 left!

0

21

Gravely 06900313

Cable, Traction - Tractor

$14.99

$

In Stock, Qty 5

0

22

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 08300036

Spring, Extension

$2.49

$

In Stock, only 4 left!

0

25

Gravely 07400009

Screw, Tapping Serrated Round Head Torx .31-18 x .50
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 02466200

Chain, #41, 32 Pitches

$6.99

$

In Stock, Qty 12

0

27

Gravely 00657900

Shaft, Pinion

$30.99

$

In Stock, Qty 7

0

28

Gravely 07061300

Zerk, Fitting .25 x .125 Drive-In

$3.99

$

In Stock, Qty 20+

0

29

Gravely 05500035

Bushing, Sleeve

$3.99

$

In Stock, Qty 20+

0

30

Gravely 06436100

Washer, Flat Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 00190600

Pinion and Sprocket (included in item 36)

Note: (included in item 36)

$34.99

$

Usually ships in 4-12 days

0

32

Gravely 05500111

Bushing, Flange (included in item 36)

Note: (included in item 36)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 05800205

Pin, Groove .125 x 1.00 Type E Alloy

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 00503500

Tab, Anti-Rotation

$4.99

$

In Stock, only 2 left!

0

35

Gravely 05500029

Spacer

$2.49

$

In Stock, Qty 5

0

36

Gravely 52601500

Pinion and Sprocket w/Bushings (includes items 31 and 32)

Note: (includes items 31 and 32)

$45.99

$

In Stock, Qty 14

0
