921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Brush Drive Unit Parts Diagram

28" Power Brush, Subaru

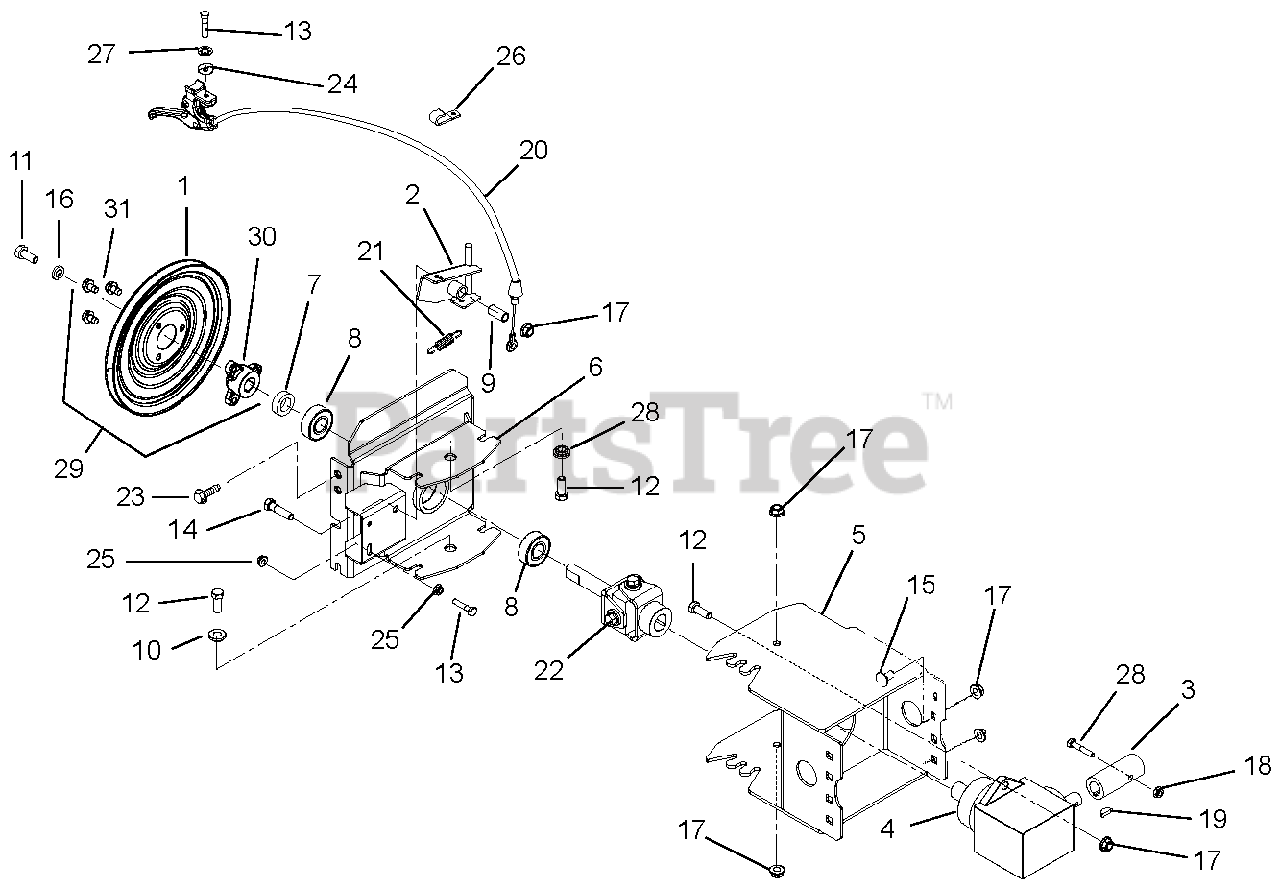

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 00268951

Pulley, Single Groove

$

$

Not available

2

Gravely 00262251

Arm, Pivot Lock

$

$

Not available

3

Gravely 00297800

Hub, Coupling

$58.99

$

Usually ships in 4-12 days

0

4

Gravely 02499300

Gear Box Assembly

$408.99

$

Usually ships in 4-12 days

0

5

Gravely 53216200

Adapter with Decal, Brush Frame

$

$

Not available

6

Gravely 03295351

Adapter, Broom Frame - 20000 Series

$168.99

$

Usually ships in 4-12 days

0

7

Gravely 03634600

Spacer, .755 x 1.250 x .370

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 05412000

Bearing, Ball .750 x 1.781 x .61

$13.99

$

In Stock, Qty 7

0

9

Gravely 05500106

Bushing, Sleeve .385 x .500 x 1.045

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05515800

Bushing, Flange .406 x .88 x .270 x .140

$9.49

$

In Stock, only 4 left!

0

11

Gravely 05947300

Bolt, Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05952500

Bolt, Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

14

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

16

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06600300

Key, Woodruff .188 x .75 x .313 SAE 9

$1.49

$

In Stock, Qty 11

0

20

Gravely 06900324

Cable, Remote Brush Lock
(Superseded to 06900517)

$52.99

$

In Stock, only 2 left!

0

21

Gravely 08300029

Spring, Tension .06 x .46 x 2.00

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 53216300

Universal Joint Assembly

$206.99

$

Usually ships in 4-12 days

0

23

Gravely 07414400

Screw, Tapping .31-18 x .75 Hex Washer Head
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

24

Gravely 07500005

Spacer, Handlebar

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06530100

Nut, Locking Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 5

0

27

Gravely 06305200

Washer, Locking-Internal .250

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 05964700

Bolt, Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

29

Gravely 52001800

Pulley Assembly (Includes items 1, 30, 31)

Note: (Includes items 1, 30, 31)

$

$

Not available

30

Gravely 00268901

Hub, Pulley, 0.75 Bore

$9.49

$

In Stock, only 1 left!

0

31

Gravely 07411500

Screw, Tapping, .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0
