921025 - Ariens 28" Power Brush, Subaru (SN: 042000 - 054999) Brush Drive Unit Parts Diagram

28" Power Brush, Subaru

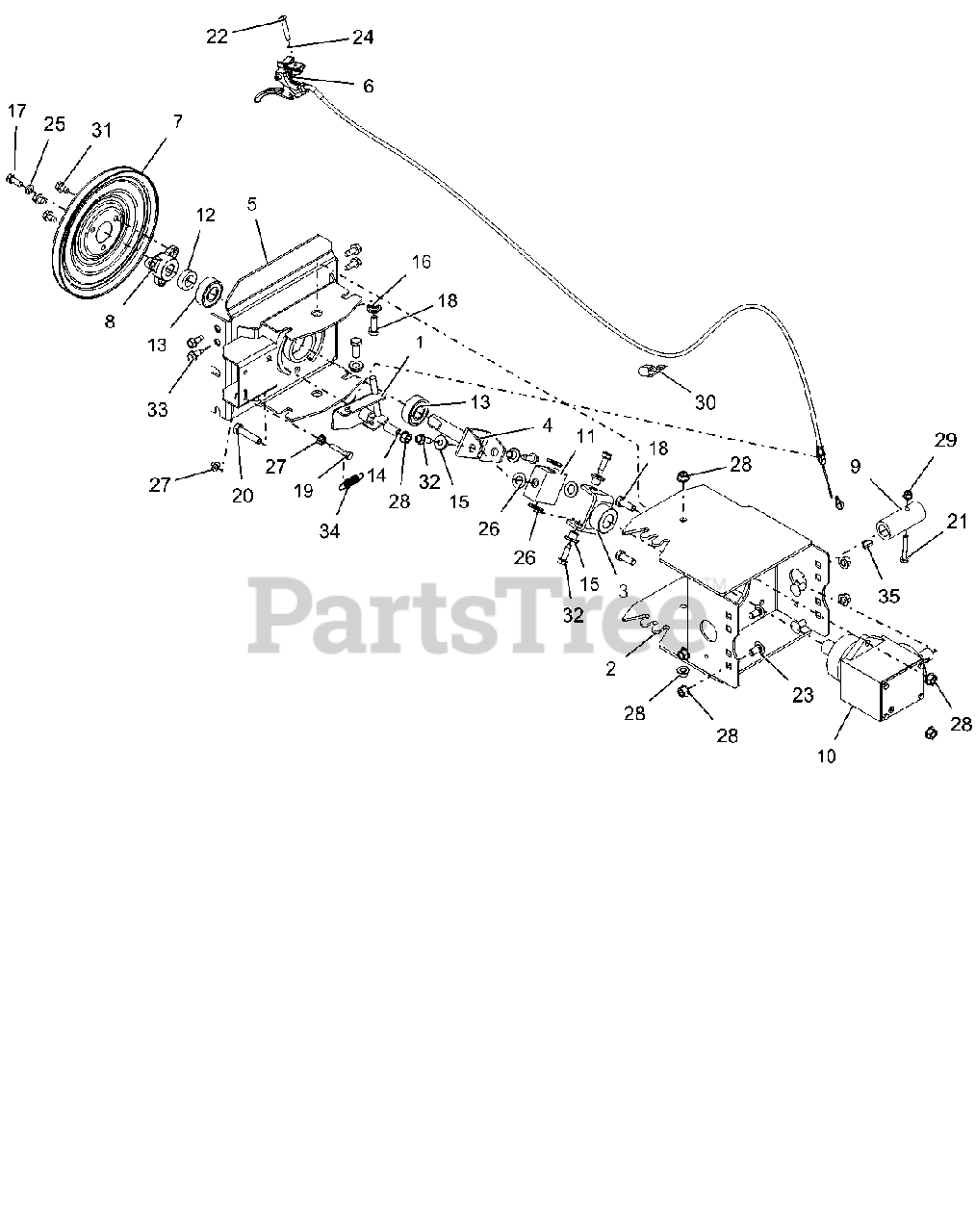

Brush Drive Unit Parts Diagram

  • Title

1

Ariens 00262251

ARM, PIVOT LOCK

$

$

Not available

2

Ariens 02998351

ADAPTER, BROOM FRAME

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 02999751

JOINT,UNIVERSAL

$39.99

$

In Stock, only 1 left!

0

4

Ariens 03100051

JOINT,UNIVERSAL

$45.99

$

In Stock, only 2 left!

0

5

Ariens 03295351

ADAPTER, FRAME-20000 SERIES

$168.99

$

Usually ships in 4-12 days

0

6

Ariens 06900517

CABLE, REMOTE BRUSH LOCK

$52.99

$

In Stock, only 2 left!

0

7

Ariens 00268900

PULLEY,SPIN FORM SINGLE GROOVE
(Superseded to 00268951)

$

$

Not available

8

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.49

$

In Stock, only 1 left!

0

9

Ariens 00297800

HUB, COUPLING

$58.99

$

Usually ships in 4-12 days

0

10

Ariens 02499300

GEAR BOX ASSEMBLY

$408.99

$

Usually ships in 4-12 days

0

11

Ariens 03291400

BLOCK, UNIVERSAL

$71.99

$

In Stock, only 2 left!

0

12

Ariens 03634600

SPACER .755X1.250X.370

$7.99

$

Usually ships in 4-12 days

0

13

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

14

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

15

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

16

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

17

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

22

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 4 left!

0

23

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

24

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06418100

WSHR-HDND-STL-THR.515X.97X.062

$3.99

$

In Stock, only 4 left!

0

27

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

31

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 07413900

@SCR-TAP .31-18X1.00 HWH TR YZ
(Superseded to 07400202)

$3.99

$

In Stock, only 2 left!

0

33

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 12

0

34

Ariens 08300029

SG-TENS .06X.46X2.00

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0
