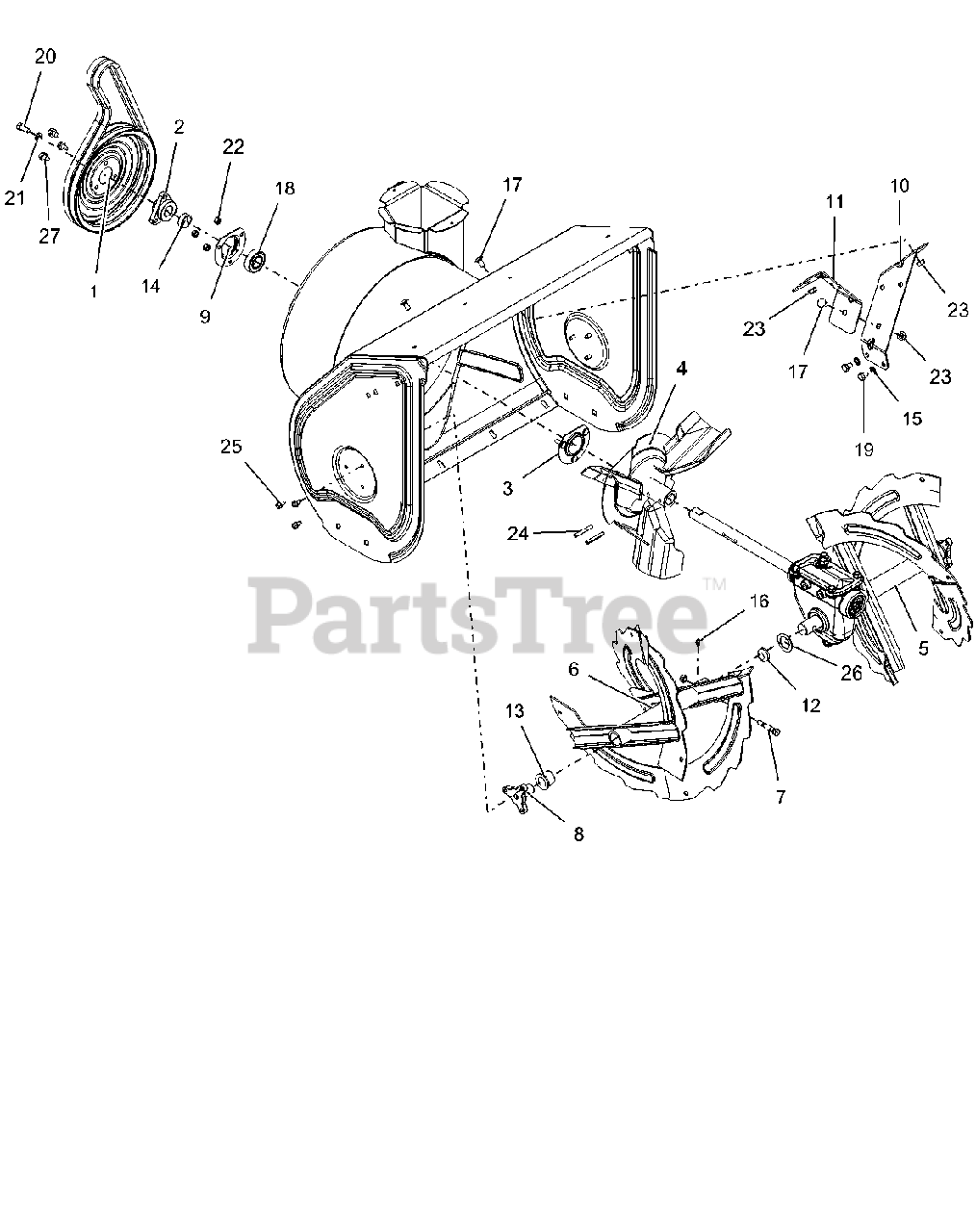

921024 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 150000 & Above) Auger And Impeller Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 254cc engine

Auger And Impeller Parts Diagram

  • Title

1

Ariens 00268700

PULLEY, SPIN FORM DUAL GROOVE
(Superseded to 00268751)

$39.99

$

In Stock, Qty 5

0

2

Ariens 00268702

PULLEY HUB, D-BORE .87 DELUXE

$14.99

$

In Stock, Qty 6

0

3

Ariens 00428700

BEARING FLANGE

$18.99

$

In Stock, Qty 5

0

4

Ariens 00485551

IMPELLER, 3 BLADE-14"

$102.99

$

In Stock, only 1 left!

0

5

Ariens 52102600

RAKE, LH W/ZERK - 24"

$95.99

$

In Stock, only 1 left!

0

6

Ariens 52102700

RAKE, RH W/ZERK - 24"

$94.99

$

Usually ships in 4-12 days

0

7

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

8

Ariens 00659200

SUPPORT, RAKE BUSHING

$20.99

$

In Stock, Qty 20+

0

9

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

10

Ariens 04319151

BRACKET, GEARCASE SUPPORT - LH

$20.99

$

Usually ships in 4-12 days

0

11

Ariens 04319251

BRACKET, GEARCASE SUPPORT - RH

$20.99

$

Usually ships in 4-12 days

0

12

Ariens 04444000

PLUG, RAKE TUBE

$

$

Not available

13

Ariens 05500114

BSHG-FLG, NY.778 ID X 1.018 OD

$3.99

$

In Stock, Qty 20+

0

14

Ariens 05501109

BSHG-SPCR .895IDX1.065ODX.353

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 16

0

17

Ariens 06200118

BLT-RDHDSQSHNK.31-18X.62 YZ-LK
(Superseded to 06200304)

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 20+

0

19

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

20

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0
