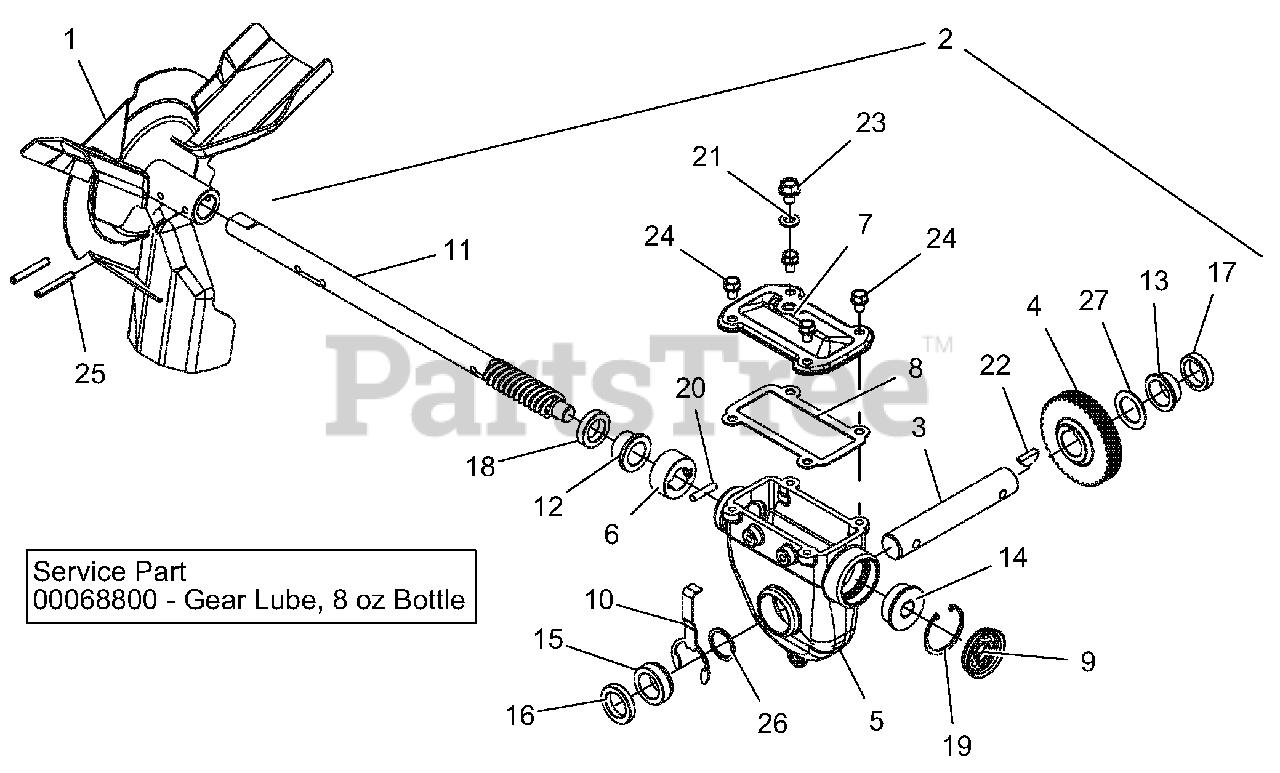

921024 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 100000 - 149999) Gear Case And Impeller Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 254cc engine

Gear Case And Impeller Parts Diagram

  • Title
1

Ariens 00485551

IMPELLER, 3 BLADE-14"

$102.99

$

Usually ships in 4-12 days

0

2

Ariens 62111000

GEAR CASE GROUP, DELUXE

$

$

Not available

3

Ariens 00485400

RAKE SHAFT, SHORT-COMMON

$

$

Not available

4

Ariens 00600000

WORM GEAR

Note: This part is only sold in kit 52104000

$

$

Not available

5

Ariens 04276900

GEARCASE, LARGE MACHINED

$116.99

$

Usually ships in 4-12 days

0

6

Ariens 04277100

THRUST COLLAR, .875"ID SLIPFIT

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 04280351

COVER, TOP - LARGE IRON

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 04282500

GASKET, TOP - LARGE GEARCASE

$3.99

$

In Stock, only 4 left!

0

9

Ariens 04302900

COVER, GEAR CASE 1.75"

$15.99

$

In Stock, only 4 left!

0

10

Ariens 04323700

BUSHING RETAINER, LARGE

$

$

Not available

11

Ariens 04332100

SHAFT, WORM - DELUXE

Note: This part is only sold in kit 52104000

$125.99

$

Usually ships in 4-12 days

0

12

Ariens 05501024

BSHG-FLG .879X1.128X.75X1.45

$10.99

$

In Stock, only 1 left!

0

13

Ariens 05501025

BSHG-FLG 1.006X1.128X.555X1.45

$5.99

$

In Stock, only 1 left!

0

14

Ariens 05501027

BSHG-FLG .628X1.503X.58X1.725

$

$

Not available

15

Ariens 05501033

BSHG-FLG LARGE, RIGHT

$9.99

$

In Stock, Qty 10

0

16

Ariens 05600510

SEAL-OIL .999X1.500X.250 TBC29

$7.99

$

In Stock, Qty 20+

0

17

Ariens 05600511

SEAL-OIL .999X1.375X.312 TBC29

$6.99

$

In Stock, Qty 17

0

18

Ariens 05600512

SEAL-OIL .873X1.375X.312 TBC29

$6.49

$

In Stock, Qty 15

0

19

Ariens 05702100

RG-RTNG-INT 1.750X.062

$5.99

$

In Stock, only 1 left!

0

20

Ariens 05800208

PIN-STR .250X1.12 6150

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 06400920

WSHR-BND-SEAL .38X.75X.11 GALV

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06608800

KEY-WDRF .25X.875 HRD #A

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 07400110

@SCR-ROLOK .38-16X.50 HWH YWZC
(Superseded to 07400201)

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 05901509

BOLT, SEMS .31-18X.50 GR5 YWZC
(Superseded to 05902008)

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06400332

WSHR-FL-STL 1.010X1.250X.068YZ
(Superseded to 06401134)

$3.99

$

In Stock, Qty 11

0

27

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0
