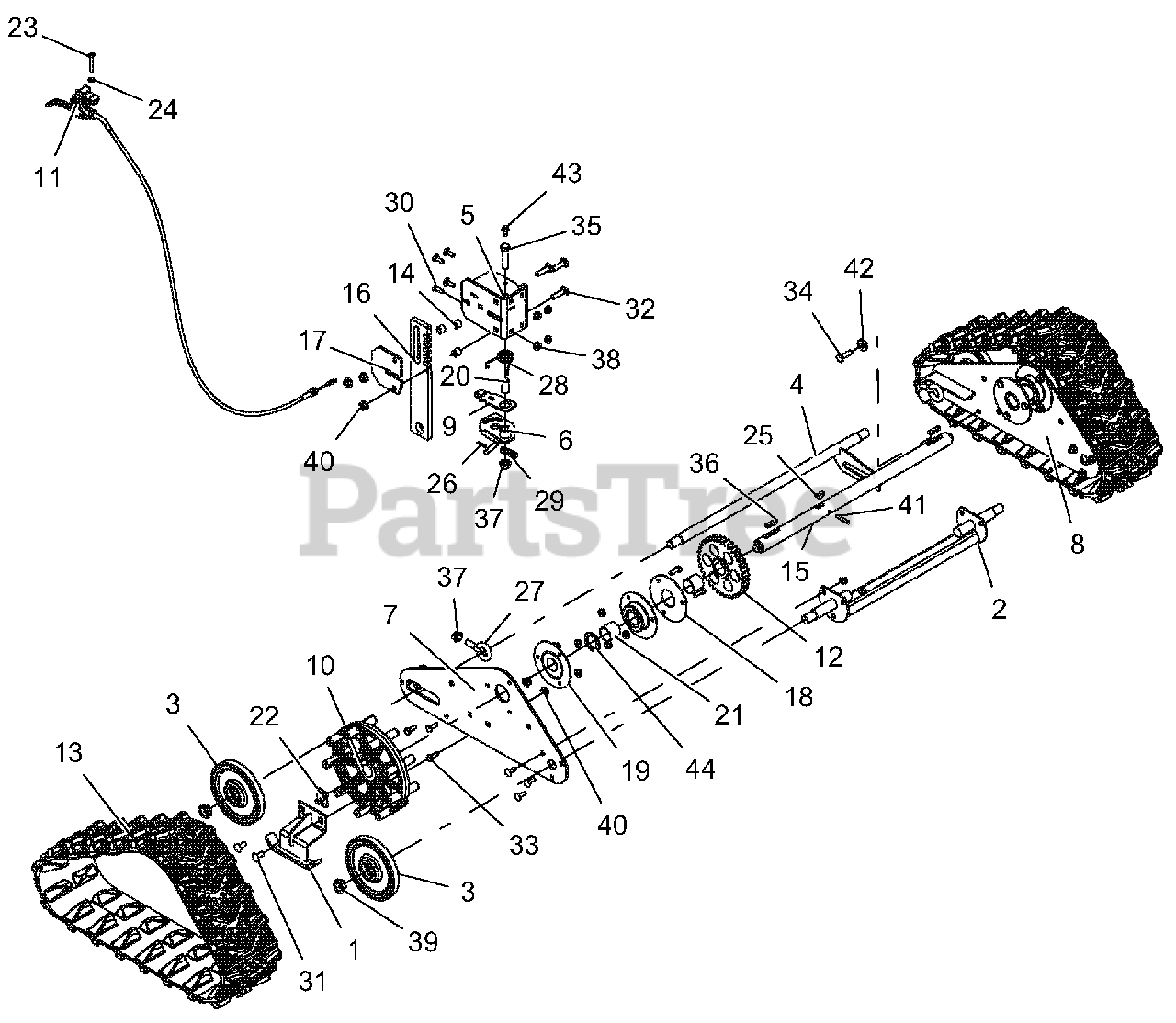

921023 - Ariens Deluxe 28" Track Snow Blower, Briggs & Stratton (SN: 100000 & Above) Track Parts Diagram

Deluxe 28" Track Snow Blower, Briggs & Stratton

Track Parts Diagram

  • Title

1

Ariens 00660751

RUNNER, GUIDE-TRACK

$

$

Not available

2

Ariens 03275800

AXLE, FRONT-DELUXE TRACK

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$

$

Not available

4

Ariens 03293700

AXLE, REAR - DELUXE TRACK

$64.99

$

Usually ships in 4-12 days

0

5

Ariens 03293951

BRACKET, HEIGHT ADJUSTER

$23.99

$

Usually ships in 4-12 days

0

6

Ariens 03294000

LOCK, HEIGHT ADJUSTER

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 03375751

SIDE PLATE, RH-DELUXE TRACK

$77.99

$

Usually ships in 4-12 days

0

8

Ariens 03375851

SIDE PLATE, LH-DELUXE TRACK

$77.99

$

Usually ships in 4-12 days

0

9

Ariens 03376200

ARM, OVERTRAVEL

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 04520000

WHEEL, MACHINED DRIVE

$142.99

$

Usually ships in 4-12 days

0

11

Ariens 06900510

CABLE, TRACK REMOTE

$59.99

$

Usually ships in 4-12 days

0

12

Ariens 00371000

GEAR, SPUR

$53.99

$

In Stock, only 1 left!

0

13

Ariens 00669700

TRACK, RUBBER

$182.99

$

Usually ships in 4-12 days

0

14

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

15

Ariens 03291500

AXLE, TRACK-DELUXE

$

$

Not available

16

Ariens 03293851

STOP, HEIGHT ADJUSTER - DELUXE

$51.99

$

Usually ships in 4-12 days

0

17

Ariens 03294151

PLATE, HEIGHT ADJUSTER

$

$

Not available

18

Ariens 03389051

PLATE, BEARING SPACER
(Superseded to 04796351)

$

$

Not available

19

Ariens 05400706

BRG-FLG 1.003/1.000 3 BOLT
(Superseded to 05400723)

$43.99

$

In Stock, Qty 20+

0

20

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

21

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

22

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 3 left!

0

24

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

26

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

27

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$6.99

$

Usually ships in 4-12 days

0

28

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

29

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$2.49

$

In Stock, Qty 20+

0

30

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

31

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

33

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$3.99

$

In Stock, only 2 left!

0

40

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

42

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

43

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0
