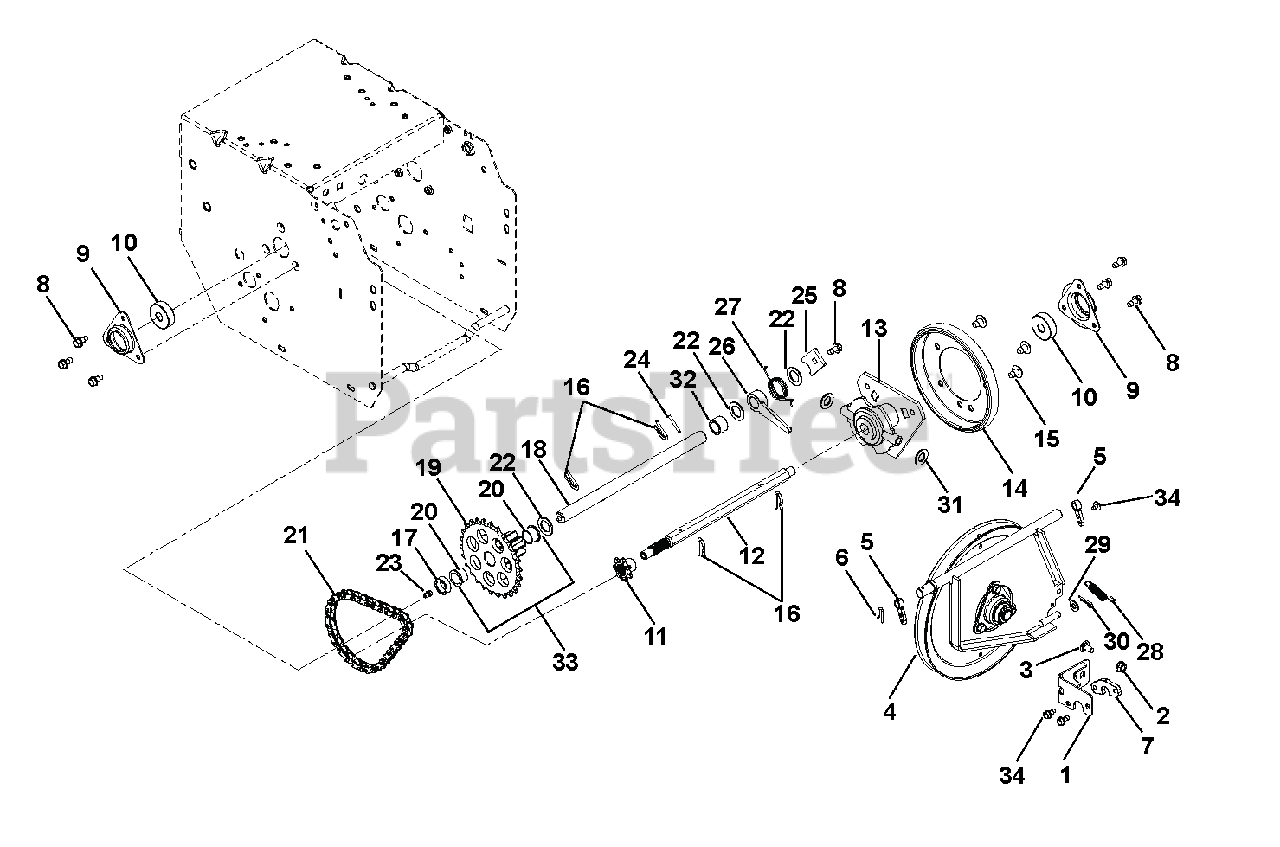

921023 - Ariens Deluxe 28" Track Snow Blower, Briggs & Stratton (SN: 075000 - 094999) Friction Drive Parts Diagram

Deluxe 28" Track Snow Blower, Briggs & Stratton

Friction Drive Parts Diagram

  • Title

1

Ariens 00657059

WELDMENT, FRAME BRACKET

$33.99

$

Usually ships in 4-12 days

0

2

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 52105000

PLATE, SWING - ASSEMBLY

$85.99

$

In Stock, only 3 left!

0

5

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 2 left!

0

6

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

10

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

11

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$

$

Not available

12

Ariens 04149500

SHAFT, HEX W/SPLINE

Note: (921013, 017, 018, 022, 027, 031, 314, 315, 318)

$31.99

$

In Stock, Qty 6

0

Ariens 04512800

SHAFT, HEX W/SPLINE TRACK

Note: (921023, 316, 317)

$30.99

$

Usually ships in 4-12 days

0

13

Ariens 00383100

CARRIER, DRIVE DISK

$117.99

$

In Stock, Qty 11

0

14

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

15

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

17

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 16

0

18

Ariens 00657900

SHAFT, PINION

Note: (921013, 017, 018, 022, 027, 031, 314, 315, 318)

$30.99

$

In Stock, only 4 left!

0

Ariens 04512900

SHAFT, PINION TRACK

Note: (921023, 316, 317)

$45.99

$

Usually ships in 4-12 days

0

19

Ariens 00190600

PINION & SPROCKET

Note: (Included in Item 33)

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

Note: (Included in Item 33)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 02466200

CHAIN - #41, 32 PITCHES

$6.99

$

In Stock, Qty 10

0

22

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (921013, 022, 027)

$0.99

$

In Stock, Qty 20+

0

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (921017, 018, 023, 031, 314, 315, 316, 317, 318)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 16

0

24

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

26

Ariens 00391200

LEVER, LOCK ARM

Note: (921013, 022, 027)

$19.99

$

In Stock, only 3 left!

0

27

Ariens 00391300

SPRING, TORSION

Note: (921013, 022, 027)

$3.49

$

In Stock, Qty 7

0

28

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 2 left!

0

29

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 05500029

SPACER, .635X.880X.611

Note: (921017, 018, 023, 031, 314, 315, 316, 317, 318)

$2.49

$

In Stock, only 3 left!

0

33

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: (Includes Items 19 and 20)

$45.99

$

In Stock, Qty 12

0

34

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0
