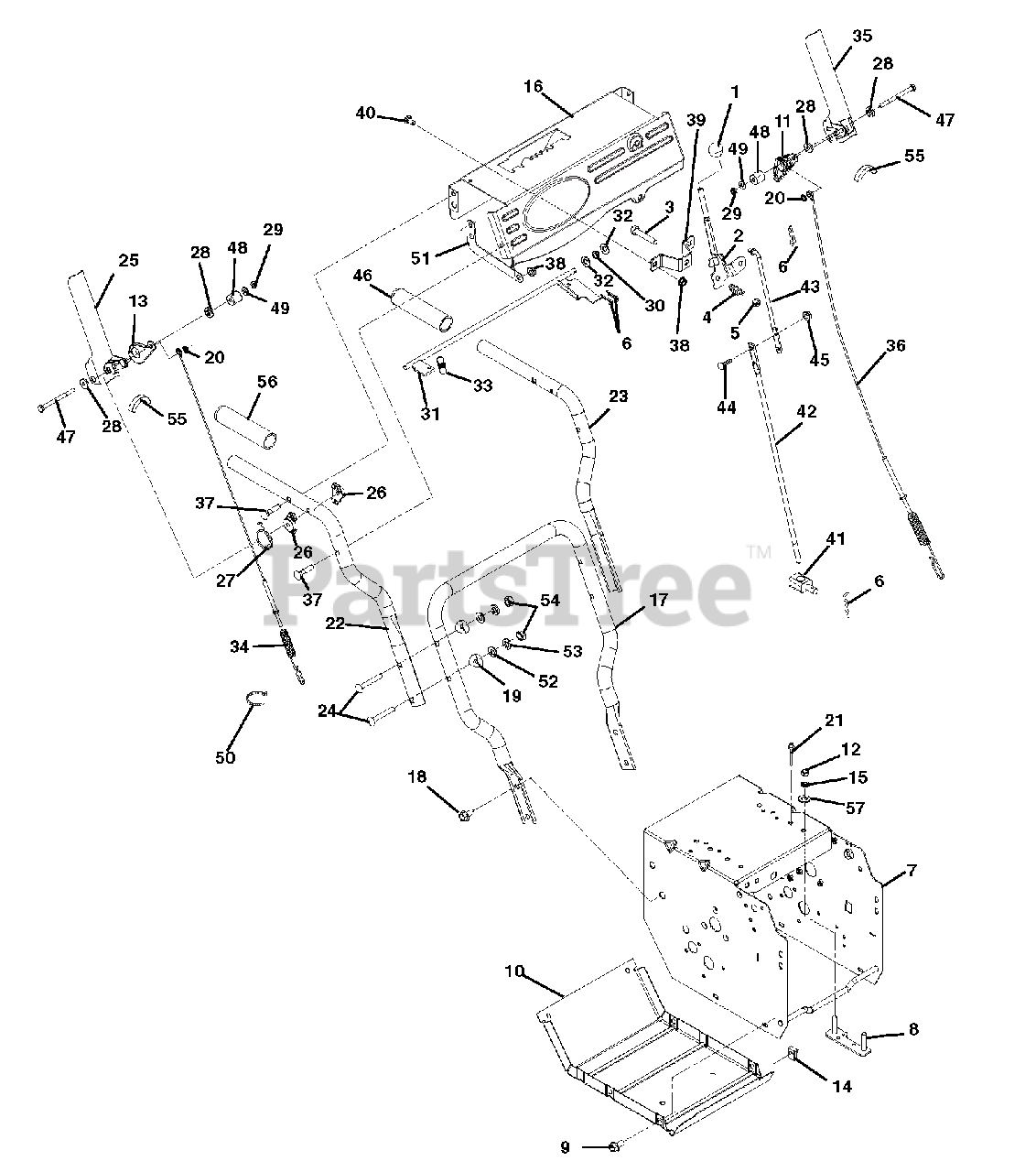

921019 - Ariens Deluxe 24" Snow Blower, Subaru (SN: 000101 & Above) Handlebars And Controls Parts Diagram

Deluxe 24" Snow Blower, Subaru

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 8

0

2

Ariens 03247900

WMT, SHIFT LEVER

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03884259

FRAME, 920/921

$258.99

$

Usually ships in 4-12 days

0

8

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$

$

Not available

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

11

Ariens 03386500

CAM, INTERLOCK - LH

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

13

Ariens 03386600

CAM, INTERLOCK - RH

$4.99

$

Usually ships in 4-12 days

0

14

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 52001400

CONTROL PANEL W/DECAL

Note: (921011, 019)

$41.99

$

Usually ships in 4-12 days

0

16

Ariens 52102500

CONTROL PANEL W/DECAL

Note: (921014)

$

$

Not available

17

Ariens 00656151

HANDLEBAR, LOWER - DELUXE

$83.99

$

In Stock, only 1 left!

0

18

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 16

0

22

Ariens 00656251

HANDLEBAR, UPPER - RH COMP/DEL

Note: (921011, 019)

$85.99

$

In Stock, only 2 left!

0

22

Ariens 03785151

HANDLEBAR, UPPER-RH 920 BRUSH

Note: (921014)

$

$

Not available

23

Ariens 00656351

HANDLEBAR, UPPER - LH COMP/DEL

$37.99

$

Usually ships in 4-12 days

0

24

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 00398351

PADDLE, CLUTCH - RH COMPACT

$25.99

$

In Stock, only 2 left!

0

26

Ariens 05500040

SPACER, HANDLEBAR

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 08300026

SPRING, TORSION

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$

$

Not available

29

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 9

0

30

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

31

Ariens 03387000

WELDMENT, INTERLOCK SHAFT

$61.99

$

Usually ships in 4-12 days

0

32

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 08300432

SPRING, EXTENSION

$3.49

$

Usually ships in 4-12 days

0

34

Ariens 06900312

CABLE, ATTACHMENT

$34.99

$

In Stock, Qty 14

0

35

Ariens 00398151

PADDLE, CLUTCH - LH COMPACT

$40.99

$

In Stock, only 2 left!

0

36

Ariens 06900301

CABLE, TRACTION - DELUXE

$20.99

$

In Stock, Qty 5

0

37

Ariens 06200009

BLT-RDHDXLSQNK .31-18X1.5 G5YZ
(Superseded to 06119100)

$

$

Not available

38

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 03886951

BRKT, SHIFT MOUNT

$

$

Not available

40

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 20+

0

42

Ariens 00494900

ROD, SHIFT - LOWER
(Superseded to 00494967)

$28.99

$

Usually ships in 4-12 days

0

43

Ariens 00494800

ROD, SHIFT - UPPER
(Superseded to 00494867)

$34.99

$

Usually ships in 4-12 days

0

44

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

47

Ariens 05965300

@BLT-HEX .25-20X3.25 YWZC

$

$

Not available

48

Ariens 00589800

BSHG, SLV .266 X .750 X .750

$3.99

$

In Stock, only 1 left!

0

49

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

51

Ariens 03387151

STRAP, SUPPORT - DASH PANEL

$17.99

$

Usually ships in 4-12 days

0

52

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.49

$

Usually ships in 4-12 days

0

56

Ariens 07500113

HANDLE GRIP - SHORT

Note: (921014)

$

$

Not available

56

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

Note: (921011, 019)

$3.99

$

In Stock, Qty 20+

0

57

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (921011, 014)

$0.99

$

In Stock, Qty 20+

0

57

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (921019)

$0.99

$

In Stock, Qty 20+

0
