921018 - Ariens Deluxe Platinum 30" Snow Blower, Briggs & Stratton (SN: 000101 - 004700) Discharge Chute Parts Diagram

Deluxe Platinum 30" Snow Blower, Briggs & Stratton

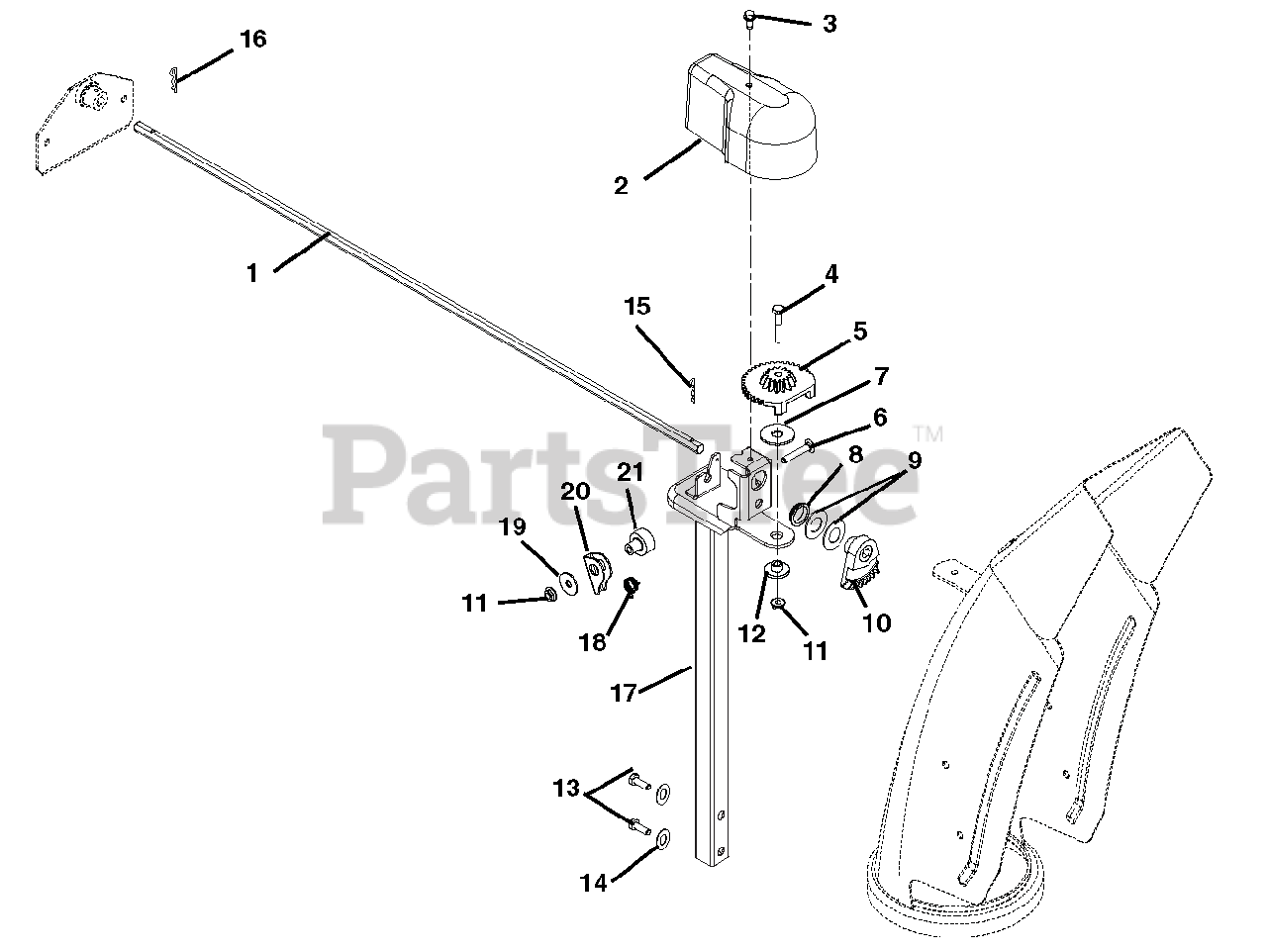

Discharge Chute Parts Diagram

  • Title
1

Ariens 00389200

ROD, CHUTE ROTATION-HEX

$58.99

$

Usually ships in 4-12 days

0

2

Ariens 00261700

COVER, CHUTE GEAR

$9.99

$

In Stock, Qty 13

0

3

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03898700

GEAR, CHUTE
(Superseded to 09478600)

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06400904

WSHR-FLT-NYL .515X1.375X.093

$2.49

$

In Stock, Qty 20+

0

8

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 00184300

GEAR, CHUTE-ACTUATION

$22.99

$

In Stock, Qty 20+

0

11

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05500920

BSHG-FLG .265X.477X.375X1.00

$3.99

$

In Stock, Qty 17

0

13

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

17

Ariens 03897451

PEDESTAL, CHUTE - QUICK STICK

$41.99

$

Usually ships in 4-12 days

0

18

Ariens 08300014

SG-TORS

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 00180900

ARM, LOCKING
(Superseded to 05081900)

$4.99

$

In Stock, Qty 20+

0

21

Ariens 05500024

BUSHING, LOCK ARM

$3.99

$

In Stock, Qty 20+

0
