921012 - Ariens Deluxe 27" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Wheels And Axles Parts Diagram

Deluxe 27" Snow Blower, Briggs & Stratton

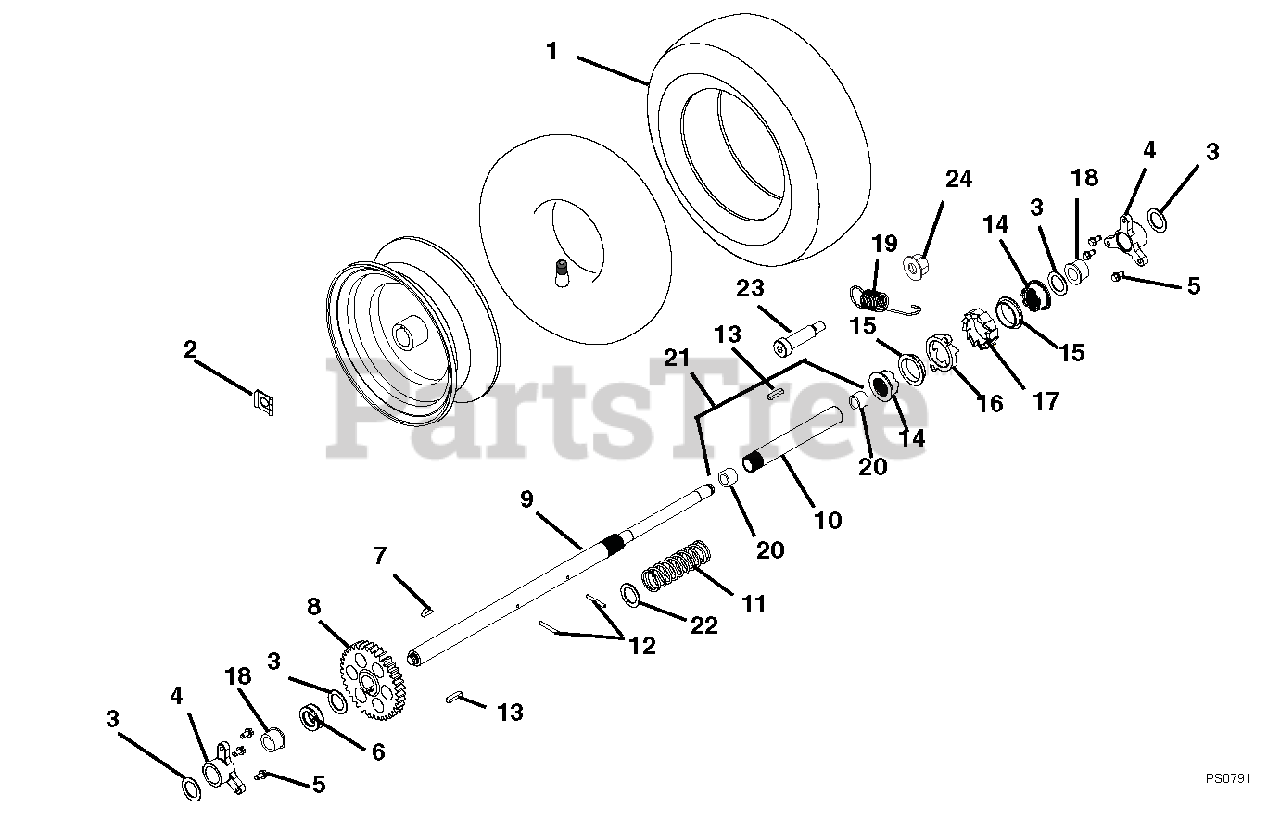

Wheels And Axles Parts Diagram

  • Title
1

Ariens 07100227

TIRE/WHEEL,RH 15X5.00-6 REMOTE

$111.99

$

In Stock, only 3 left!

0

Ariens 07100228

TIRE/WHEEL,LH 15X5.00-6 REMOTE

$113.99

$

Usually ships in 4-12 days

0

Ariens 07100726

TIRE, 15X5.00-6 K478

$69.99

$

In Stock, only 1 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

5

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

7

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

8

Ariens 00371000

GEAR, SPUR

$53.99

$

In Stock, only 1 left!

0

9

Ariens 00865600

AXLE, LONG - CLICKER

$258.99

$

In Stock, only 1 left!

0

10

Ariens 00865700

AXLE, SHORT - CLICKER
(Superseded to 52101100)

$103.99

$

In Stock, Qty 6

0

11

Ariens 00427700

SPRING, COMPRESSION

$3.99

$

In Stock, Qty 7

0

12

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

14

Ariens 00386900

CLUTCH, DOG - SLIDING

$20.99

$

In Stock, Qty 10

0

15

Ariens 00391100

BUSHING, FLANGE

$2.49

$

In Stock, Qty 20+

0

16

Ariens 00387100

GEAR, CLUTCH

$28.99

$

In Stock, only 3 left!

0

17

Ariens 00387000

GEAR, RATCHET

$21.99

$

In Stock, only 3 left!

0

18

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

19

Ariens 08300023

SG-TENS .06X.62X2.94

$9.49

$

In Stock, Qty 9

0

20

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

21

Ariens 52101100

AXLE, CLICKER W/BUSHINGS

Note: (Includes 10 and 20)

$103.99

$

In Stock, Qty 6

0

22

Ariens 06400332

WSHR-FL-STL 1.010X1.250X.068YZ
(Superseded to 06401134)

$3.99

$

In Stock, Qty 11

0

23

Ariens 05900602

BLT-SHLDR .50X1.50 .38-16X.625
(Superseded to 05901432)

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
