921010 (ST 27 LE) - Ariens 27" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

27" Snow Blower, Briggs & Stratton

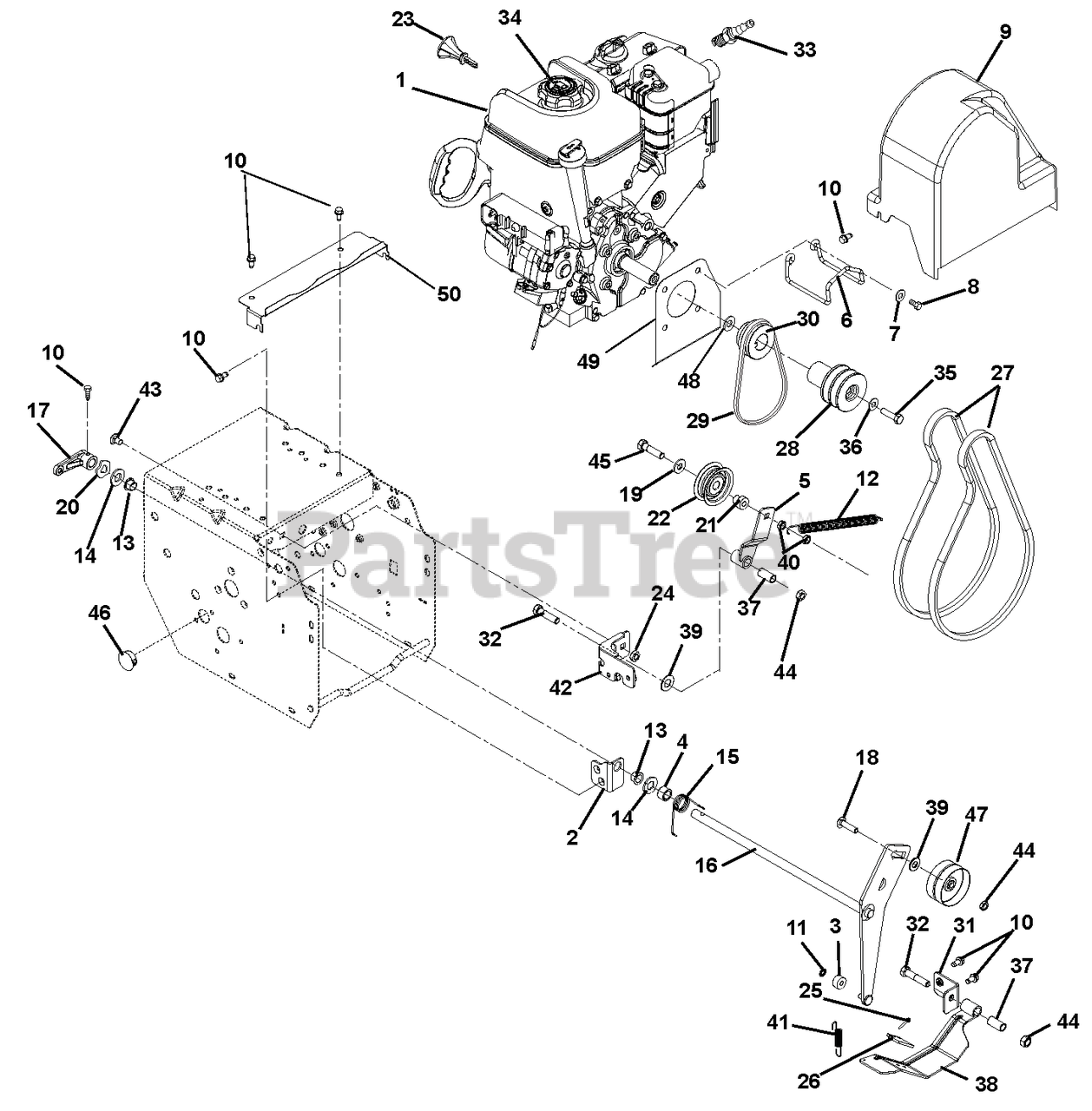

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 08200435

ENGINE,BRIGGS 20 SNOW MAX 120V

$

$

Not available

2

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$12.99

$

Usually ships in 4-12 days

0

3

Ariens 05500820

BSHG,SLV .270 X .750 X .250

$2.49

$

In Stock, Qty 20+

0

4

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$16.99

$

Usually ships in 4-12 days

0

6

Ariens 02968300

FINGER, BELT
(Superseded to 05273200)

$18.99

$

In Stock, only 1 left!

0

7

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00659600

PLZ SEE SERVICE LETTER #L-2166

$

$

Not available

10

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

12

Ariens 08300538

SPRING, SWIVEL HOOK EXTENSION

$14.99

$

In Stock, Qty 20+

0

13

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

14

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 08300326

SG-TORS .075 X .955

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 02956700

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

17

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

18

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

21

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

22

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

23

Ariens 07500012

KEY, IGNITION PUSH/PULL B&S

$13.99

$

Usually ships in 4-12 days

0

24

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (Included with item 38)

$0.99

$

In Stock, Qty 7

0

26

Ariens 00180500

PAD, BRAKE

Note: (Included with item 38)

$10.99

$

In Stock, Qty 7

0

27

Ariens 07200431

V-BELT, HA-RAW EDGE (SET)

$58.99

$

In Stock, Qty 6

0

28

Ariens 00657400

SHEAVE, ATTACHMENT 2-GRV
(Superseded to 04957500)

$

$

Not available

29

Ariens 07200111

V-BELT, 3L-WRAPPED

$22.99

$

In Stock, Qty 20+

0

30

Ariens 00659400

SHEAVE, DRIVE

$28.99

$

Usually ships in 4-12 days

0

31

Ariens 00657551

BRACKET, BRAKE MOUNT

$

$

Not available

32

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 21534100

PLUG, SPARK

$4.49

$

In Stock, Qty 20+

0

34

Ariens 07500013

CAP, FUEL - BRIGGS

$17.99

$

Usually ships in 4-12 days

0

35

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$3.99

$

Usually ships in 4-12 days

0

36

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

38

Ariens 52000500

BRAKE ARM W/PAD

Note: (Includes items 25 and 26)

$22.99

$

In Stock, only 1 left!

0

39

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

41

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$2.49

$

In Stock, Qty 20+

0

42

Ariens 00657051

WELDMENT, FRAME BRACKET

$30.99

$

Usually ships in 4-12 days

0

43

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

46

Ariens 07500023

PLUG, HOLE - .875" NYLON

$1.49

$

Usually ships in 4-12 days

0

47

Ariens 07314600

IDLER-FLAT 2.75X.38 PAINTED
(Superseded to 07333500)

$22.99

$

In Stock, Qty 8

0

48

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

49

Ariens 03815251

BAFFLE, PRIMARY WATER

$

$

Not available

50

Ariens 03815351

BAFFLE, SECONDARY WATER

$

$

Not available
