921010 (ST 27 LE) - Ariens 27" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Discharge Chute Parts Diagram

27" Snow Blower, Briggs & Stratton

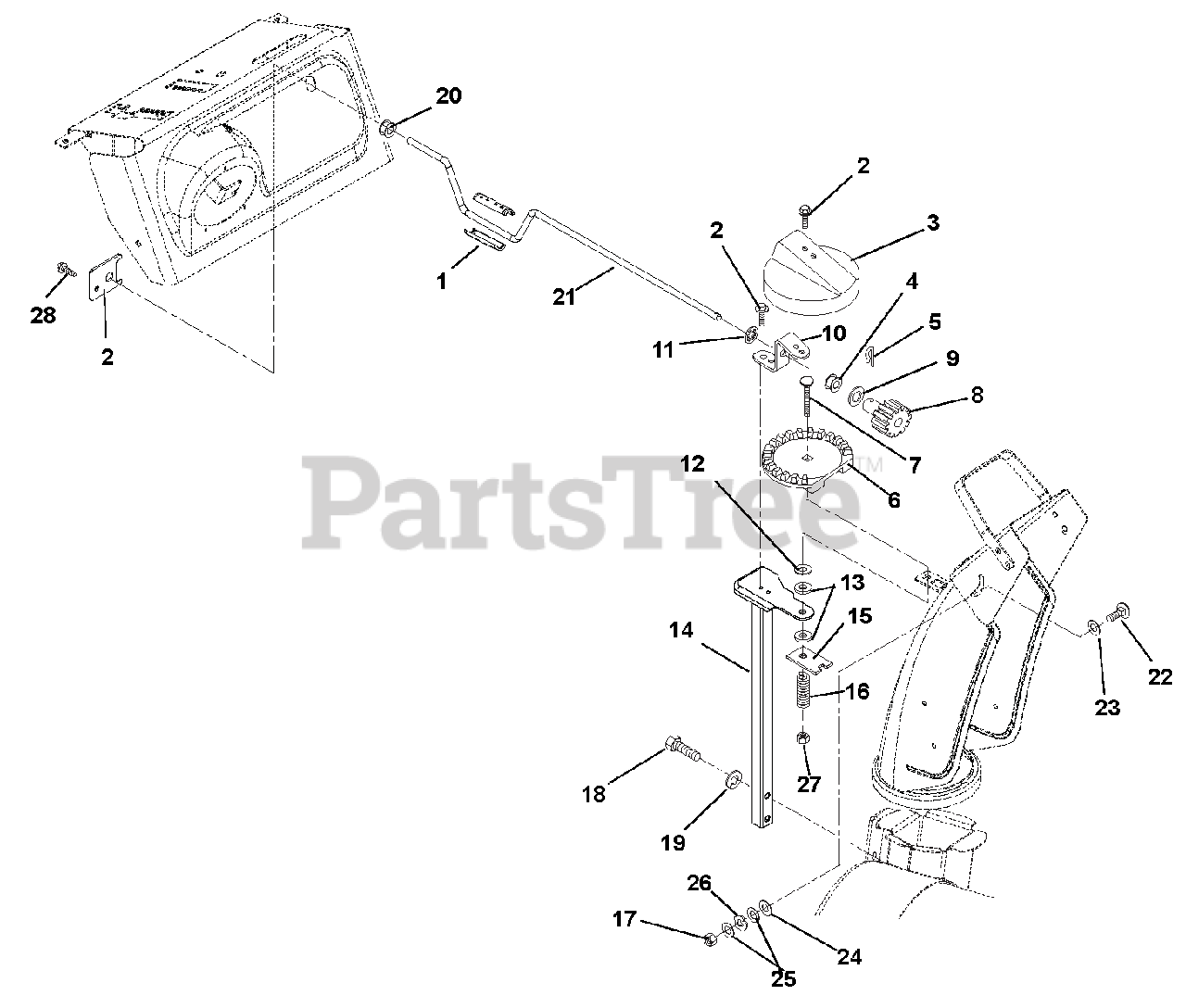

Discharge Chute Parts Diagram

  • Title
1

Ariens 07500020

KNOB, CRANK-SNAP

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 03223000

GEAR COVER

$12.99

$

In Stock, only 4 left!

0

4

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 13

0

5

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

6

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 20+

0

7

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

8

Ariens 52000100

PINION GEAR W/BRACKET

Note: (Contains Items 4, 9, 10, 11)

$28.99

$

In Stock, Qty 6

0

9

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

10

Ariens 01972451

BRACKET, PINION GEAR

$

$

Not available

11

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 13

0

12

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

13

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

14

Ariens 00658351

PEDESTAL, CHUTE - CRANK

$55.99

$

Usually ships in 4-12 days

0

15

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 11

0

16

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 19

0

17

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

21

Ariens 00956500

ROD, CHUTE CRANK

$34.99

$

Usually ships in 4-12 days

0

22

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

24

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 11

0

25

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

27

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 03390151

BRACKET, CHUTE CRANK

$16.99

$

Usually ships in 4-12 days

0
