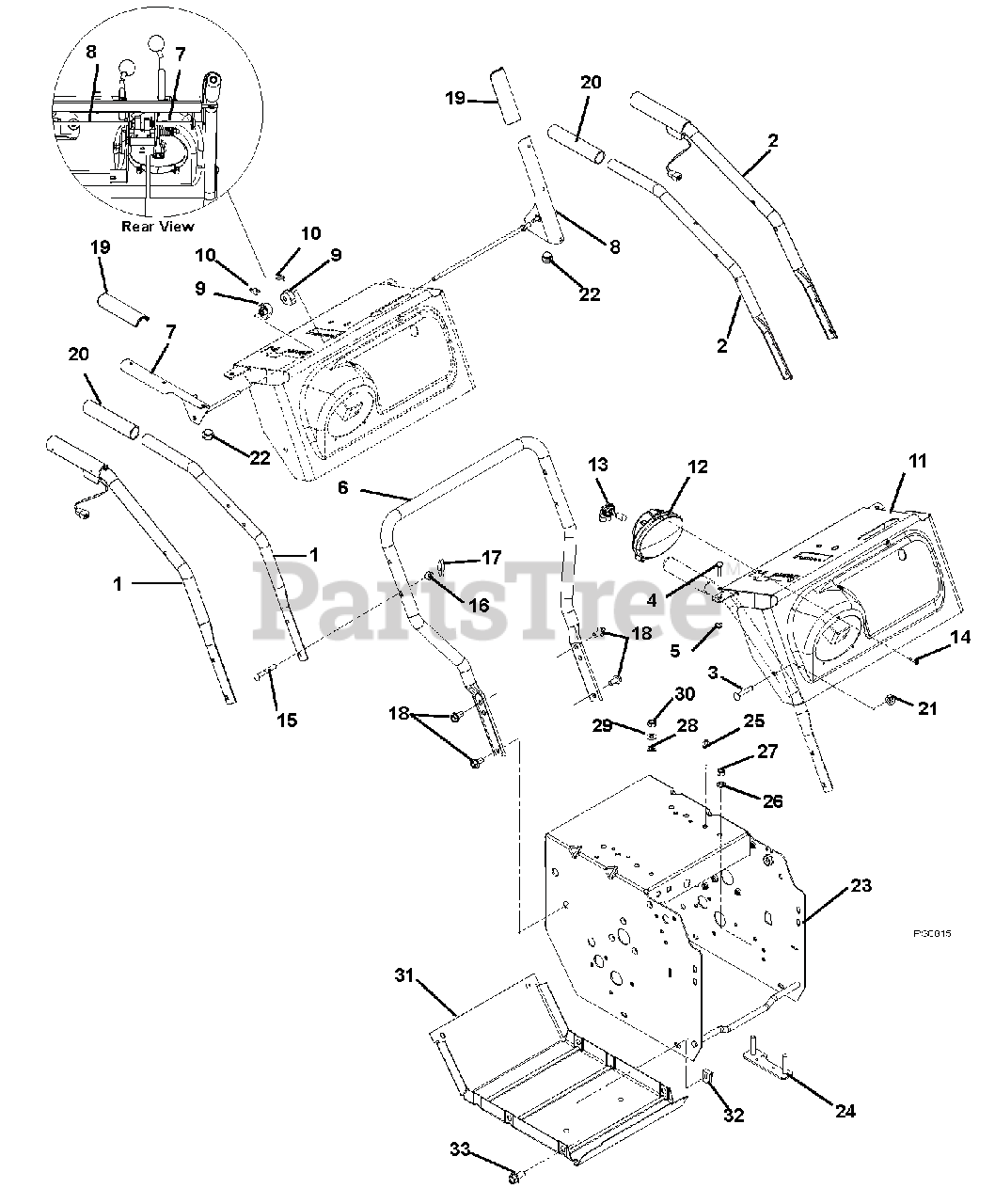

921004 (ST 924 DLE) - Ariens 24" Snow Blower, 9.25hp Tecumseh (SN: 000101 - 002000) Handlebars And Controls Parts Diagram

24" Snow Blower, 9.25hp Tecumseh

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 00428351

HANDLEBAR, UPPER-RH

Note: (002, 004, 301)

$68.99

$

Usually ships in 4-12 days

0

1

Ariens 52602000

HANDLEBAR, UPPER RH-W/HW

Note: (003)

$156.99

$

Usually ships in 4-12 days

0

2

Ariens 00428451

HANDLEBAR, UPPER-LH

Note: (002, 004, 301)

$75.99

$

Usually ships in 4-12 days

0

2

Ariens 52601900

HANDLEBAR, UPPER LH-W/HW

Note: (003)

$156.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (003, 004)

$2.49

$

In Stock, only 4 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (002, 301)

$2.49

$

In Stock, only 4 left!

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (003, 004)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (002, 301)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00866251

HANDLEBAR, LOWER - DELUXE

$183.99

$

Usually ships in 4-12 days

0

7

Ariens 00393051

LEVER, RH-ATTACHMENT

$63.99

$

In Stock, only 3 left!

0

8

Ariens 00393151

LEVER, LH-TRACTION

$74.99

$

In Stock, only 1 left!

0

9

Ariens 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$7.99

$

In Stock, only 4 left!

0

10

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

11

Ariens 52100300

DASH PANEL W/CONTROL DECAL

Note: (002, 301)

$209.99

$

Usually ships in 4-12 days

0

11

Ariens 52100400

DASH PANEL W/CONTROL DECAL

Note: (003)

$209.99

$

Usually ships in 4-12 days

0

11

Ariens 52601100

PANEL-W/CONTROL DECAL

Note: (004)

$244.99

$

Usually ships in 4-12 days

0

12

Ariens 00432500

LIGHT, HALOGEN ASSY.

$21.99

$

Usually ships in 4-12 days

0

13

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$14.99

$

In Stock, only 2 left!

0

14

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 15

0

17

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

18

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, Qty 10

0

20

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

Note: (002, 004, 301)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 00656859

FRAME, MAIN

$199.99

$

Usually ships in 4-12 days

0

24

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

25

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, only 3 left!

0

26

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (002, 004, 301)

$0.99

$

In Stock, Qty 15

0

26

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (003)

$0.99

$

In Stock, Qty 15

0

27

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (002, 004, 301)

$0.99

$

In Stock, Qty 10

0

27

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (003)

$0.99

$

In Stock, Qty 10

0

28

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (002, 004, 301)

$0.99

$

In Stock, only 3 left!

0

29

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (002, 004, 301)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (002, 004, 301)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

32

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

33

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 13

0
