921004 (ST 924 DLE) - Ariens 24" Snow Blower, 9.25hp Tecumseh (SN: 000101 - 002000) Friction Drive Parts Diagram

24" Snow Blower, 9.25hp Tecumseh

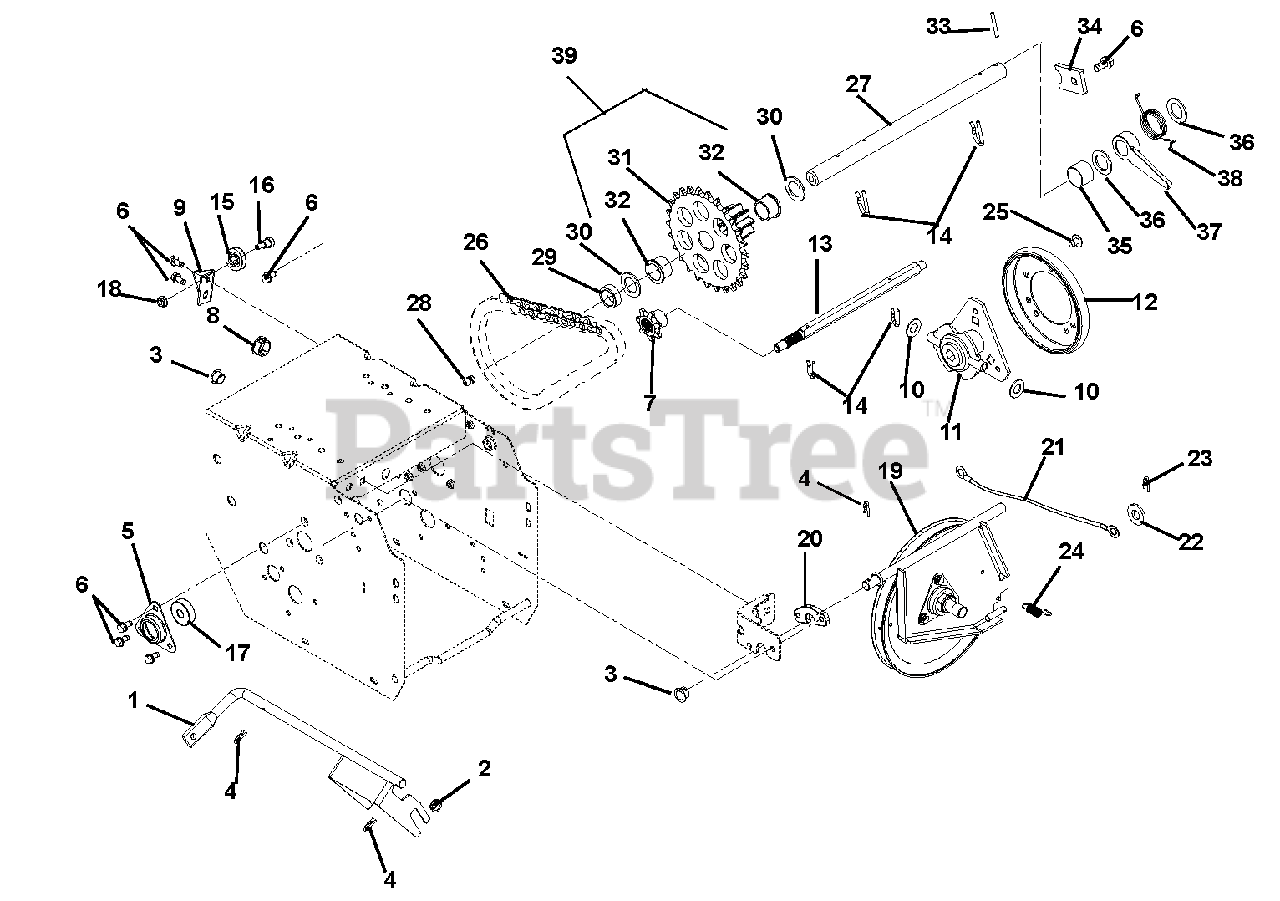

Friction Drive Parts Diagram

  • Title

1

Ariens 00494051

WELDMENT, SHIFT FORK

$82.99

$

Usually ships in 4-12 days

0

2

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 18

0

3

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

4

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

5

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

6

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00385800

SPROCKET, PINION 7T W/SPLINE

$9.49

$

In Stock, Qty 9

0

8

Ariens 07500023

PLUG, HOLE - .875" NYLON

Note: (921001, 003, 004, 300)

$1.49

$

Usually ships in 4-12 days

0

9

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

10

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 00383100

CARRIER, DRIVE DISK

$117.99

$

In Stock, Qty 11

0

12

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

13

Ariens 00657600

SHAFT, HEX W/SPLINE

$62.99

$

Usually ships in 4-12 days

0

14

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

15

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

16

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

17

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 52100200

PLATE, SWING - ASSEMBLY

$113.99

$

In Stock, only 3 left!

0

20

Ariens 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

21

Ariens 06900313

CABLE, TRACTION - TRACTOR

$14.99

$

In Stock, only 4 left!

0

22

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 2 left!

0

25

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 02466200

CHAIN - #41, 32 PITCHES

$6.99

$

In Stock, Qty 10

0

27

Ariens 00657900

SHAFT, PINION

$30.99

$

In Stock, only 4 left!

0

28

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 16

0

29

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 16

0

30

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

32

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

33

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

34

Ariens 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

35

Ariens 05500029

SPACER, .635X.880X.611

Note: (921001, 003, 004, 300)

$2.49

$

In Stock, only 3 left!

0

36

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: (921002, 301)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 00391200

LEVER, LOCK ARM

Note: (921002, 301)

$19.99

$

In Stock, only 3 left!

0

38

Ariens 00391300

SPRING, TORSION

Note: (921002, 301)

$3.49

$

In Stock, Qty 7

0

39

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

$45.99

$

In Stock, Qty 12
