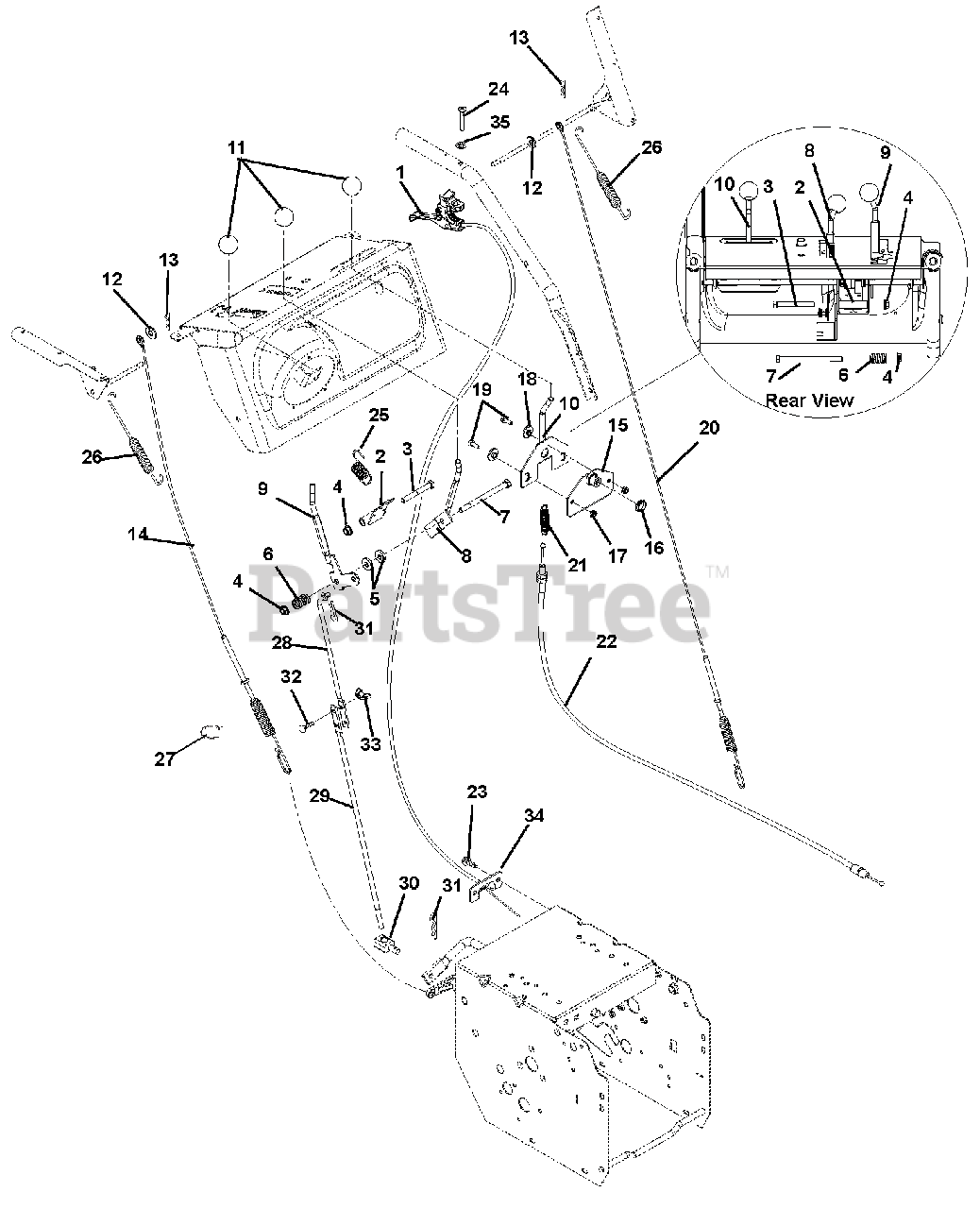

921004 (ST 924 DLE) - Ariens 24" Snow Blower, 9.25hp Tecumseh (SN: 000101 - 002000) Cables And Controls Parts Diagram

24" Snow Blower, 9.25hp Tecumseh

Cables And Controls Parts Diagram

  • Title

1

Ariens 06900302

CABLE-TRIGGER-REMOTE WHEEL-DEL

Note: (002, 301)

$52.99

$

In Stock, Qty 7

0

2

Ariens 00356900

ARM, INTERLOCK

$

$

Not available

3

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

7

Ariens 05957700

@BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 00379100

CONTROL, DEFLECTOR

$42.99

$

Usually ships in 4-12 days

0

9

Ariens 00396900

LEVER, SHIFT

$51.99

$

In Stock, only 1 left!

0

10

Ariens 00180300

LEVER, CHUTE CONTROL

$48.99

$

In Stock, only 1 left!

0

11

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 6

0

12

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

14

Ariens 06900312

CABLE, ATTACHMENT

$34.99

$

In Stock, Qty 11

0

15

Ariens 00184800

MOUNT, CHUTE CONTROL

$58.99

$

Usually ships in 4-12 days

0

16

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05500004

BSHG-FLG .265X.448X.243X1.00

$3.49

$

In Stock, only 2 left!

0

19

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06900301

CABLE, TRACTION - DELUXE

$20.99

$

In Stock, only 4 left!

0

21

Ariens 08310900

SG-TENS .048X.44X1.75 WLD 9

$5.99

$

In Stock, Qty 10

0

22

Ariens 06900019

CABLE, CHUTE LOCK
(Superseded to 52609100)

$59.99

$

In Stock, Qty 8

0

23

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (002, 301)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

Note: (002, 301)

$3.99

$

In Stock, only 1 left!

0

25'

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 16

0

26

Ariens 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0

27

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

28

Ariens 00386000

ROD, SHIFT-UPPER
(Superseded to 52608900)

$83.99

$

In Stock, Qty 6

0

29

Ariens 00386600

ROD, SHIFT-LOWER
(Superseded to 52608900)

$83.99

$

In Stock, Qty 6

0

30

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 14

0

31

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

33

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 13

0

34

Ariens 00956051

BRACKET, CABLE MOUNT

Note: (002, 301)

$37.99

$

Usually ships in 4-12 days

0

35

Ariens 06305200

WSHR-LK-INT .250 TH TYA

Note: (002, 301)

$3.49

$

Usually ships in 4-12 days

0
