9210 - Lawn-Boy Loafer Rear-Engine Riding Mower (SN: 900000001 - 999999999) (1959) MODEL C-50 ENGINE PARTS LIST Parts Diagram

Loafer Rear-Engine Riding Mower

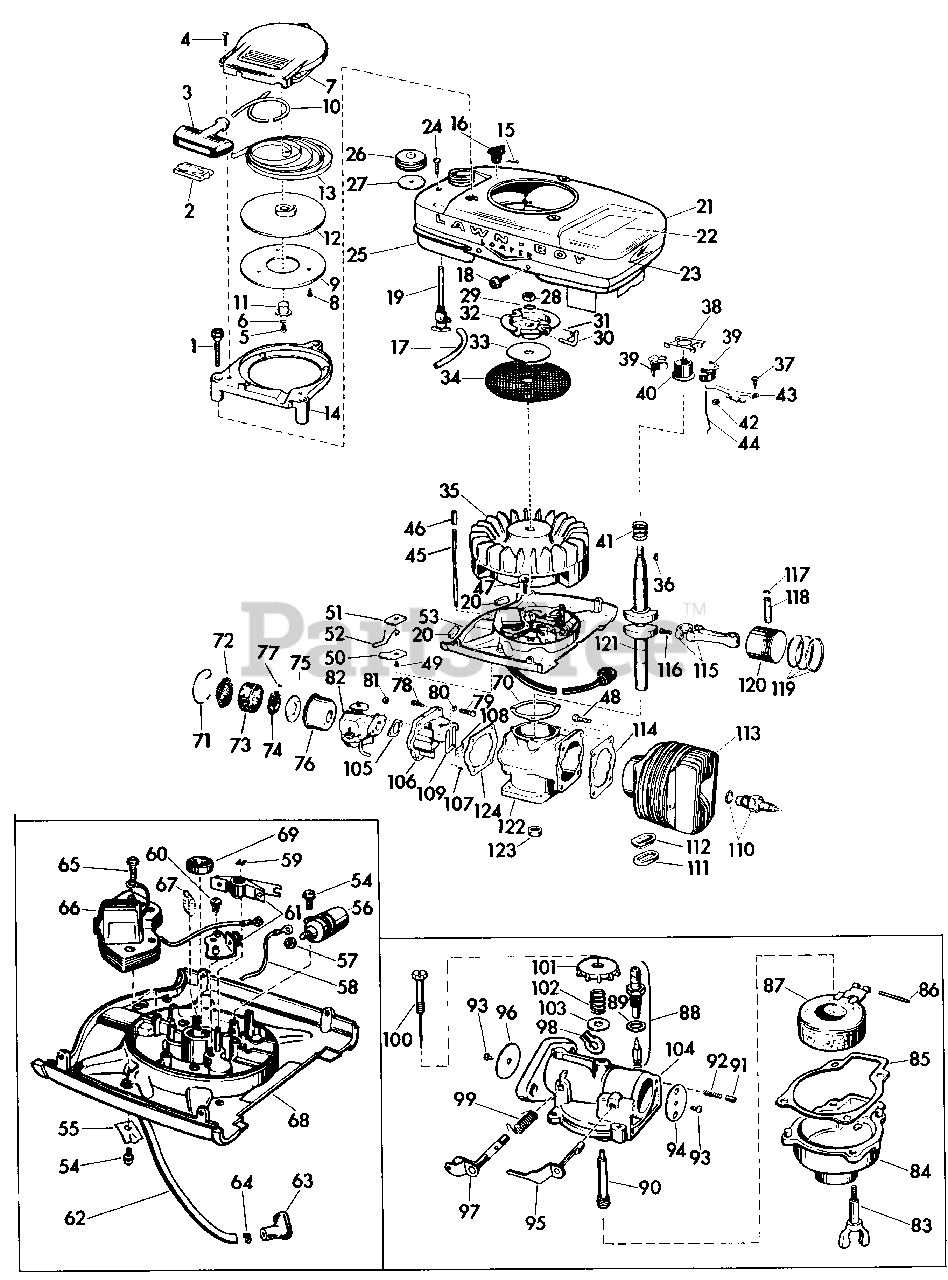

MODEL C-50 ENGINE PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 602840

Screw-Starter to Shroud

$

$

Not available

Lawn-Boy 677346

Starter Assembly

$

$

Not available

2

Lawn-Boy 304325

Anchor-Rope

$

$

Not available

3

Lawn-Boy 602773

Handle-Starter

$

$

Not available

4

Lawn-Boy 304381

Screw-Starter Cap to Base

$

$

Not available

5

Lawn-Boy 306408

Screw-Pulley to Cap

$

$

Not available

6

Lawn-Boy 306396

Washer-Lock, Pulley to Cap

$

$

Currently unavailable

7

Lawn-Boy 602818

Cap-Starter

$

$

Not available

8

Lawn-Boy 602821

Screw-Pulley Plate

$

$

Not available

9

Lawn-Boy 602820

Plate-Pulley

$

$

Not available

10

Lawn-Boy 602823

Rope-Starter

$

$

Not available

11

Lawn-Boy 602609

Bearing-Pulley

$

$

Not available

12

Lawn-Boy 602819

Pulley-Rewind

$

$

Not available

13

Lawn-Boy 602610

Spring-Recoil

$

$

Not available

14

Lawn-Boy 602817

Base-Starter

$

$

Currently unavailable

15

Lawn-Boy 602723

Pin-Cotter, Choke Knob

$

$

Currently unavailable

16

Lawn-Boy 602623

Knob-Choke Bar

$5.49

$

In Stock, Qty 6

0

17

Lawn-Boy 602253

Line-Gas

$

$

Not available

18

Lawn-Boy 602848

Screw-Shroud to Armature Plate

$

$

Not available

19

Lawn-Boy 677052

Shut-Off Valve and Screen Assembly

$22.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 602816

Pad-Rubber, Armature Plate

$

$

Not available

Lawn-Boy 677635

Shroud and Gas Tank Assembly

$

$

Not available

21

Lawn-Boy 677636

Shroud and Shield Assembly

$

$

Not available

Lawn-Boy 677634

Decal Set

$

$

Not available

22

Lawn-Boy 603387

Decal-Instruction

$

$

Not available

23

Lawn-Boy 603376

Decal-"Lawn-Boy"

$

$

Currently unavailable

24

Lawn-Boy 132823

Screw-Machine

$

$

Not available

25

Lawn-Boy 677325

Gas Tank Assembly

$

$

Not available

26

Lawn-Boy 677081

Gas Cap and Gasket Assy.

$

$

Currently unavailable

27

Lawn-Boy 602059

Gasket-Gas Cap

$

$

Not available

28

Lawn-Boy 130981

Nut-Flywheel

$

$

Not available

29

Lawn-Boy 304161

Washer-Lock, Flywheel

$

$

Not available

30

Lawn-Boy 602612

Pin-Starter

$19.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 602613

Spring-Starter Pin

$

$

Not available

32

Lawn-Boy 602615

Pulley-Flywheel

$

$

Not available

33

Lawn-Boy 602617

Washer-Flywheel

$

$

Not available

34

Lawn-Boy 602616

Screen-Flywheel

$

$

Not available

35

Lawn-Boy 677242

Flywheel Assembly

$

$

Not available

36

Lawn-Boy 120395

Key-Woodruff
(Superseded to 607199)

$4.99

$

In Stock, Qty 9

0

37

Lawn-Boy 602640

Screw-Governor

$

$

Not available

Lawn-Boy 677296

Governor Assembly

$

$

Not available

38

Lawn-Boy 602635

Yoke-Governor

$

$

Not available

39

Lawn-Boy 602636

Weight-Governor

$

$

Not available

40

Lawn-Boy 602634

Collar-Governor

$21.99

$

In Stock, only 3 left!

0

41

Lawn-Boy 602633

Spring-Governor

$

$

Not available

42

Lawn-Boy 602639

Block-Wear, Governor

$2.99

$

In Stock, only 2 left!

0

43

Lawn-Boy 677294

Governor Lever and Wear Block Assembly

$19.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 602638

Rod-Governor

$

$

Not available

45

Lawn-Boy 602619

Bar-Choke

$

$

Not available

46

Lawn-Boy 602733

Sleeve-Choke Bar

$

$

Not available

47

Lawn-Boy 603294

Screw-Crankcase to Armature Plate

$

$

Not available

48

Lawn-Boy 603293

Screw-Cylinder to Crankcase

$

$

Not available

49

Lawn-Boy 602625

Screw-Shut-Off Switch

$

$

Currently unavailable

50

Lawn-Boy 602622

Insulator-Shut-Off, Lower

$

$

Not available

51

Lawn-Boy 602621

Insulator-Shut-Off, Upper

$

$

Not available

52

Lawn-Boy 602618

Spring-Shut-Off Switch

$

$

Not available

53

Lawn-Boy 677589

Armature Plate Assembly

$

$

Not available

54

Lawn-Boy 602651

Screw-Condenser and Clamp Mounting
(Superseded to 604344)

$

$

Not available

55

Lawn-Boy 602454

Clamp-High Tension Lead

$

$

Not available

56

Lawn-Boy 677299

Condenser Assembly

$

$

Not available

57

Lawn-Boy 133079

Nut-Condenser Terminal

$2.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 677237

Shut-Off Switch Lead Assy.

$

$

Not available

59

Lawn-Boy 71A1052

Clip-Spring, Breaker Post

$

$

Currently unavailable

60

Lawn-Boy 302812

Screw-Breaker Base

$

$

Not available

61

Lawn-Boy 677254

Breaker Base and Arm Assembly

$52.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 677293

High Tension Lead Assembly
(Superseded to 684179)

$27.99

$

In Stock, only 1 left!

0

63

Lawn-Boy 510232

Cover-Rubber, Spark Plug

$

$

Currently unavailable

64

Lawn-Boy 510231

Terminal-Spring
(Superseded to 684698)

$6.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 510195

Screw-Lamination Mounting

$

$

Not available

66

Lawn-Boy 580184

Coil and Lamination Assembly

$

$

Not available

67

Lawn-Boy 510189

Wick-Oiler

$

$

Currently unavailable

68

Lawn-Boy 677632

Armature Plate, Bearing and Oil Seal Assembly

$

$

Not available

69

Lawn-Boy 602632

Seal-Oil
(Superseded to 611396)

$5.99

$

In Stock, Qty 6

0

70

Lawn-Boy 602590

Gasket-Crankcase to Armature Plate, .005 in.

Note: 677481 Gasket Set

$

$

Not available

70

Lawn-Boy 602763

Gasket-Crankcase to Armature Plate, .010 in.

Note: 677481 Gasket Set

$1.99

$

In Stock, only 2 left!

0

Lawn-Boy 677080

Air Filter Assembly

$

$

Not available

71

Lawn-Boy 602018

Clip-Air Filter

$

$

Not available

72

Lawn-Boy 602017

Screen-Air Filter (Large)

$

$

Not available

73

Lawn-Boy 602016

Element-Air Filter

$5.49

$

In Stock, only 2 left!

0

74

Lawn-Boy 602015

Screen-Air Filter (Small)

$9.49

$

Usually ships in 3-6 days

0

75

Lawn-Boy 602724

Plate-Back-Up, Filter Cup

$4.99

$

Usually ships in 3-6 days

0

76

Lawn-Boy 602014

Cup-Air Filter

$

$

Not available

77

Lawn-Boy 602594

Screw-Air Filter

$

$

Not available

78

Lawn-Boy 602192

Screw-Reed Plate to Crankcase

$8.49

$

Usually ships in 3-6 days

0

79

Lawn-Boy 132492

Screw-Reed Plate to Carburetor

$

$

Not available

80

Lawn-Boy 303630

Washer-Reed Plate to Carburetor Screw

$

$

Not available

81

Lawn-Boy 602201

Nut-Stop, Reed Plate to Carburetor Screw

$

$

Not available

82

Lawn-Boy 677233

Carburetor Assembly

$

$

Not available

83

Lawn-Boy 602849

Screw-Wing

$

$

Not available

84

Lawn-Boy 602712

Float Chamber

$

$

Not available

85

Lawn-Boy 602850

Gasket-Carburetor Body to Float Chamber
(Superseded to 98-1362)

Note: 677271 Carburetor Repair Kit

$2.99

$

In Stock, Qty 20+

0

86

Lawn-Boy 300096

Pin-Float Arm Hinge
(Superseded to 92-6389)

Note: 677271 Carburetor Repair Kit

$5.49

$

In Stock, only 1 left!

0

87

Lawn-Boy 375919

Float and Arm Assembly
(Superseded to 678113)

$

$

Not available

88

Lawn-Boy 486218

Float Valve-Seat, Washer and Spring Assembly
(Superseded to 678736)

Note: 677271 Carburetor Repair Kit

$

$

Not available

89

Lawn-Boy 301996

Washer-Float Valve Seat

$3.49

$

Usually ships in 3-6 days

0

90

Lawn-Boy 601096

Nozzle

Note: 677271 Carburetor Repair Kit

$

$

Not available

91

Lawn-Boy 601098

Plug-Choke Friction

$

$

Not available

92

Lawn-Boy 601097

Spring-Choke Friction

$

$

Not available

93

Lawn-Boy 53X220

Screw-Choke and Throttle Disc

Note: 677271 Carburetor Repair Kit

$

$

Currently unavailable

94

Lawn-Boy 603115

Disc-Choke

$

$

Not available

95

Lawn-Boy 677241

Choke Shaft and Lever Assy.

$102.99

$

Usually ships in 3-6 days

0

96

Lawn-Boy 602290

Disc-Throttle

$

$

Not available

97

Lawn-Boy 677637

Throttle Shaft and Ring Assy.

$

$

Not available

98

Lawn-Boy 603292

Grip Ring

$

$

Not available

99

Lawn-Boy 602685

Spring-Throttle Shaft

Note: 677271 Carburetor Repair Kit

$

$

Not available

100

Lawn-Boy 677039

Needle Assembly

Note: 677271 Carburetor Repair Kit

$

$

Not available

101

Lawn-Boy 602495

Knob-Needle Valve

$7.99

$

In Stock, only 1 left!

0

102

Lawn-Boy 602293

Spring-Needle Adjustment

$

$

Currently unavailable

103

Lawn-Boy 306561

Washer-Needle Adjustment

$

$

Currently unavailable

104

Lawn-Boy 602682

Carburetor Body

$

$

Not available

105

Lawn-Boy 602052

Gasket-Carburetor

Note: 677481 Gasket Set

$3.49

$

In Stock, Qty 19

0

106

Lawn-Boy 677362

Reed Plate Assembly

$

$

Not available

107

Lawn-Boy 303761

Screw-Reed to Reed Plate
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

108

Lawn-Boy 602587

Plate-Back-Up, Reed

$2.99

$

Usually ships in 3-6 days

0

109

Lawn-Boy 602588

Reed

$

$

Not available

110

Lawn-Boy 602721

Spark Plug and Gasket

$

$

Currently unavailable

111

Lawn-Boy 602644

Gasket-Exhaust

Note: 677481 Gasket Set

$

$

Not available

112

Lawn-Boy 602717

Sleeve-Exhaust Gasket

$2.99

$

In Stock, Qty 15

0

113

Lawn-Boy 677607

Cylinder and Sleeve Assembly

$

$

Not available

114

Lawn-Boy 603038

Gasket-Cylinder to Crankcase

Note: 677481 Gasket Set

$

$

Not available

Lawn-Boy 677513

Piston and Connecting Rod Assembly

$

$

Currently unavailable

115

Lawn-Boy 677452

Connecting Rod Assembly

$

$

Not available

116

Lawn-Boy 603148

Screw-Connecting Rod

$

$

Currently unavailable

117

Lawn-Boy 120325

Ring-Spring

$

$

Not available

118

Lawn-Boy 202522

Pin-Wrist

$

$

Not available

119

Lawn-Boy 603181

Ring-Piston

$

$

Not available

120

Lawn-Boy 603180

Piston

$

$

Not available

121

Lawn-Boy 603229

Crankshaft

$

$

Currently unavailable

122

Lawn-Boy 677633

Crankcase, Bearing and Oil Seal

$

$

Not available

123

Lawn-Boy 603101

Seal-Oil

$

$

Not available

124

Lawn-Boy 602841

Gasket-Reed Plate to Crankcase

Note: 677481 Gasket Set

$

$

Not available
