9209 A99 - Electrolux/AYP Lawn Tractor (1999) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

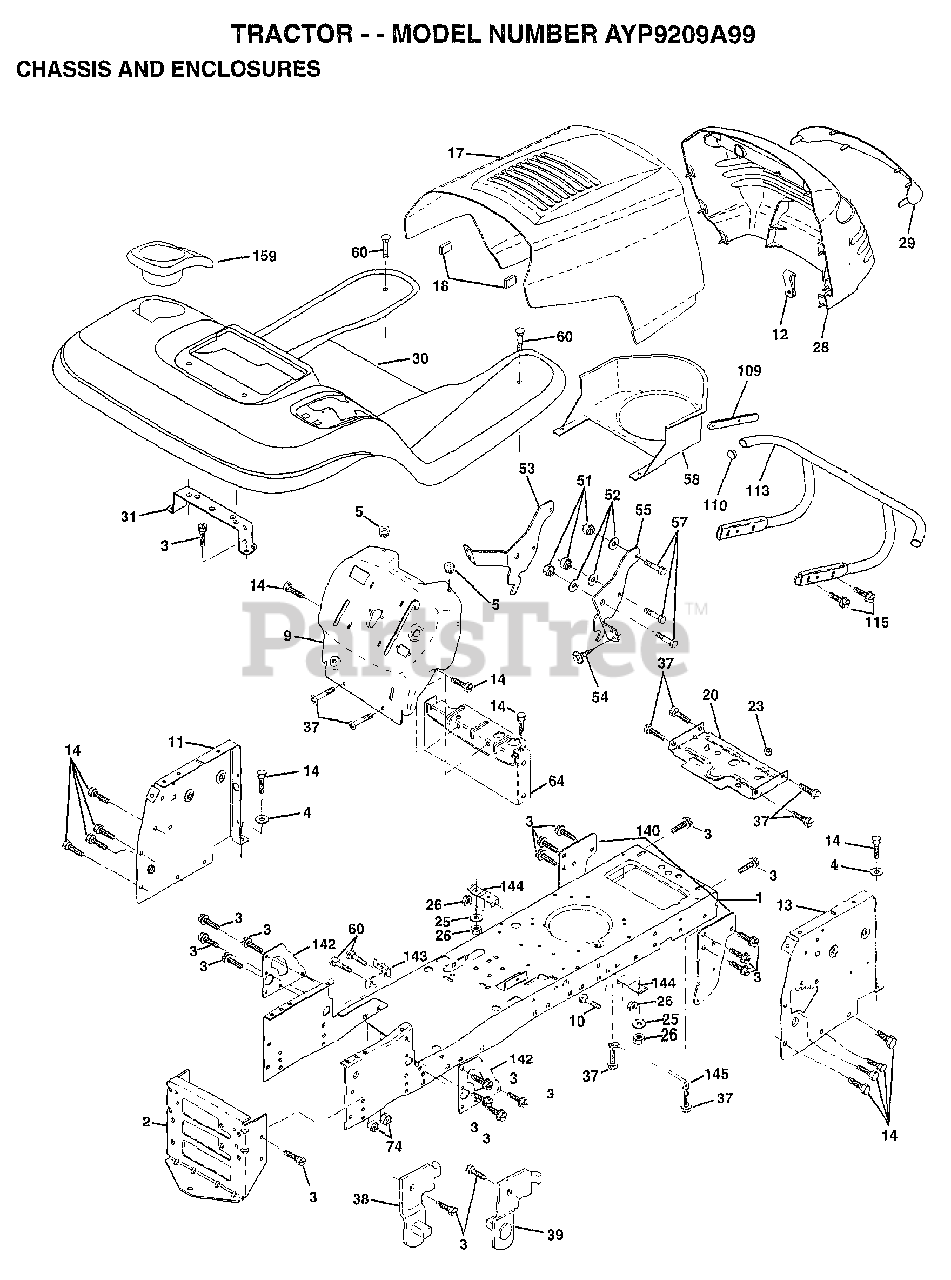

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 166819

CHASSIS.STLT.STAMPING

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 155272

BUMPER-HOOD/DASH
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 154794X011

DASH.PLM.SLKSCR.

$26.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 155927

"PANEL-DASH,LH"
(Superseded to 174996)

$

$

Not available

12

Electrolux/AYP 145660

CLIP.TINNERMAN
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 159639X603

HOOD.STEEL.PRVT

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

20

Electrolux/AYP 156437

"PLATE-MTG,BATT/FU"
(Superseded to 180679)

$11.99

$

Usually ships in 3-10 days

0

23

Murray 124028X

SUB= 532124028

$

$

Not available

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 157428

GRILL
(Superseded to 532179844)

$

$

Not available

29

Electrolux/AYP 146654X599

GRILLE.LENS
(Superseded to 532146654)

$

$

Not available

30

Electrolux/AYP 154791X603

FENDER.FTREST.PNT.ST

$104.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

BRACKET.GRILLE.LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

SCREW.HEX.WS.HD
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

BRACKET.GRILLE.RH
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 162266

AIR DUCT
(Superseded to 532174930)

$

$

Not available

60

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 154798

DASH-LOWER
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 141461

BRACKET.EXT.BUMP.
(Superseded to 170310)

$2.99

$

Usually ships in 3-10 days

0

110

Electrolux/AYP 143679

PLUG.PLASTIC
(Superseded to 532143679)

$2.99

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 150300

BUMPER.ASM
(Superseded to 170311)

$

$

Not available

115

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

140

Electrolux/AYP 158418

BRKT SUSPENSION
(Superseded to 532158418)

$

$

Not available

142

Electrolux/AYP 165867

PLATE.REINFORCEMENT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 154966

"BRKT-S'BAR,CHASSI"
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Electrolux/AYP 154207

BRKT-FOOTREST
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

"ROD POVOT,CHASSIS"
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Electrolux/AYP 155123X428

CUPHOLDER.STLT.BLK
(Superseded to 532155123)

$

$

Not available
