920500 - Ariens Sno-Brush 28" Power Brush, 5hp Tecumseh (SN: 000101 & Above) Friction Drive Parts Diagram

Sno-Brush 28" Power Brush, 5hp Tecumseh

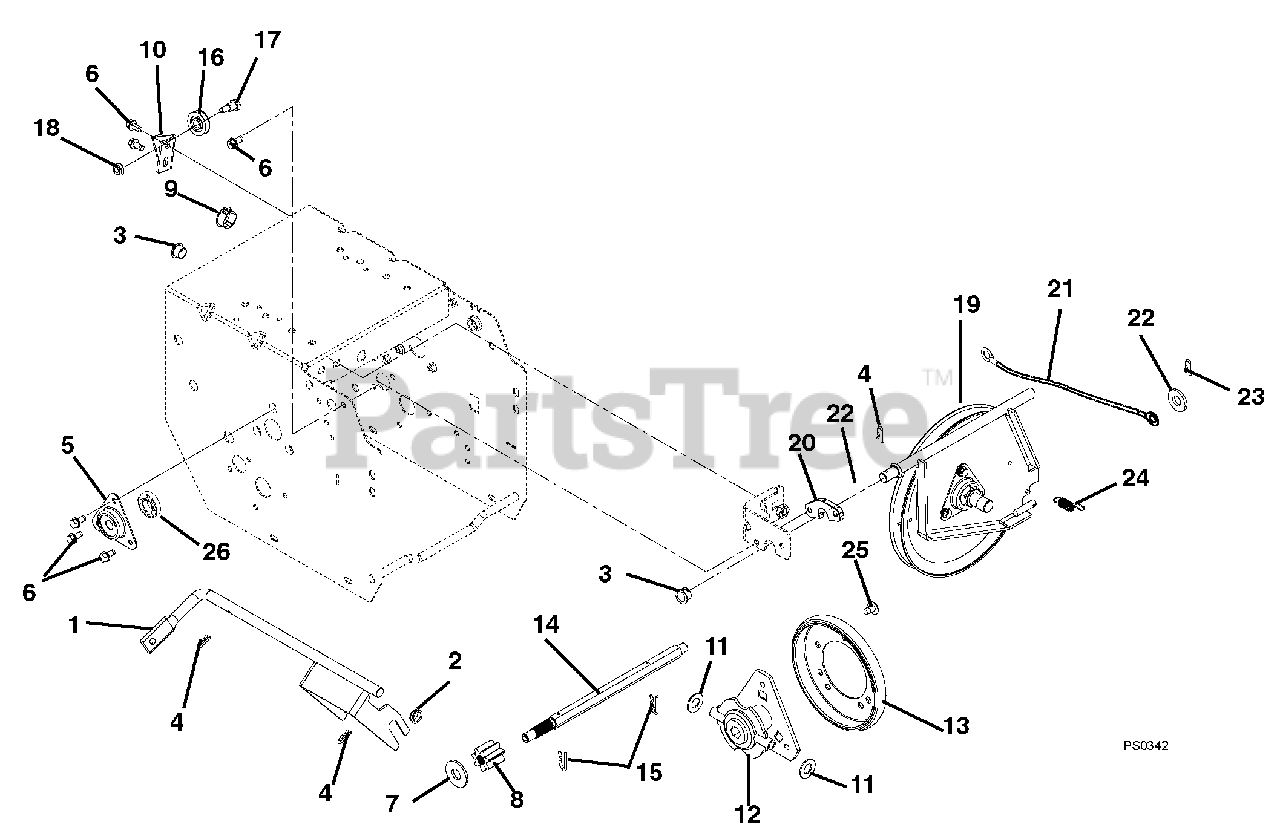

Friction Drive Parts Diagram

  • Title
1

Ariens 00656951

WELDMENT, SHIFT FORK

$103.99

$

Usually ships in 4-12 days

0

2

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 18

0

3

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

4

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

5

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

6

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

8

Ariens 00493900

GEAR, PINION, 7 TOOTH W/SPLINE

$

$

Not available

9

Ariens 07500023

PLUG, HOLE - .875" NYLON

$1.49

$

Usually ships in 4-12 days

0

10

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

11

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 00383100

CARRIER, DRIVE DISK

$117.99

$

In Stock, Qty 11

0

13

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

14

Ariens 00493800

SHAFT, HEX W/SPLINE

$64.99

$

Usually ships in 4-12 days

0

15

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

16

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

17

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 52100200

PLATE, SWING - ASSEMBLY

$113.99

$

In Stock, only 3 left!

0

20

Ariens 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

21

Ariens 06900313

CABLE, TRACTION - TRACTOR

$14.99

$

In Stock, only 4 left!

0

22

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 2 left!

0

25

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0
