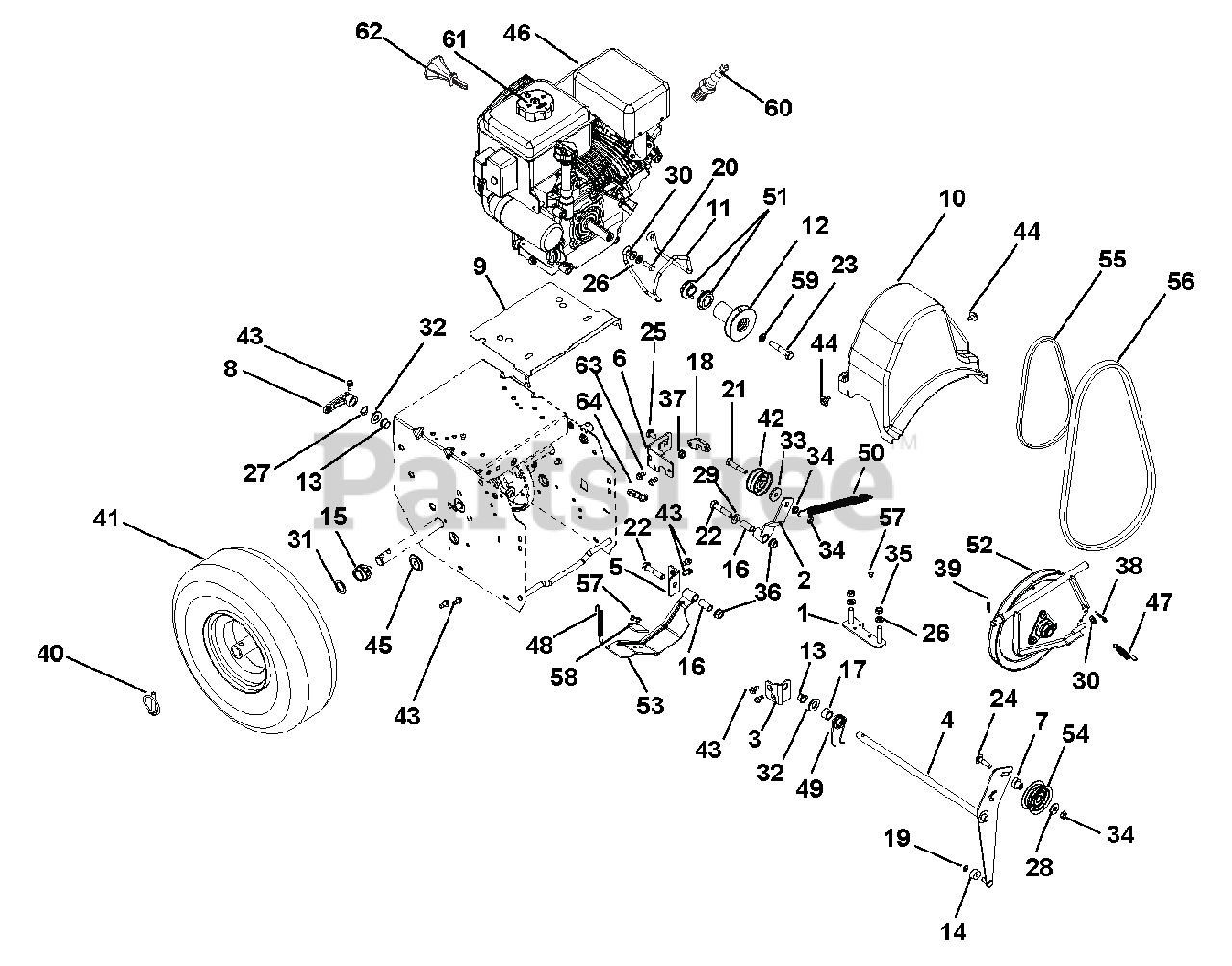

920405 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$

$

Not available

2

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$12.99

$

Usually ships in 4-12 days

0

4

Ariens 00495167

WELDMENT, ATTACHMENT IDLER ARM
(Superseded to 04892167)

$37.99

$

Usually ships in 4-12 days

0

5

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

6

Ariens 00657051

WELDMENT, FRAME BRACKET

$30.99

$

Usually ships in 4-12 days

0

7

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

8

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

9

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$64.99

$

Usually ships in 4-12 days

0

10

Ariens 03881000

COVER, COMPACT BELT

$20.99

$

In Stock, only 3 left!

0

11

Ariens 03881600

FINGER, BELT
(Superseded to 04561800)

$25.99

$

Usually ships in 4-12 days

0

12

Ariens 04209700

SHEAVE, AUGER - COMPACT
(Superseded to 52006500)

$59.99

$

Usually ships in 4-12 days

0

13

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

14

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

15

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 8

0

16

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

17

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

19

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

20

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

22

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$2.99

$

In Stock, only 2 left!

0

24

Ariens 06200124

BLT-RDHDSQSHNK.31-18X1.13 G5YZ
(Superseded to 06200334)

$

$

Not available

25

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

28

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

34

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

35

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

36

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

40

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

41

Ariens 07100811

TIRE/WHEEL, 13X4.10-6 K398A
(Superseded to 07101238)

$79.99

$

In Stock, Qty 10

0

Ariens 07100814

TIRE, 13" K398A

$68.99

$

In Stock, Qty 7

0

42

Ariens 07300525

IDLER,1.875" OD
(Superseded to 52007100)

$28.99

$

Usually ships in 4-12 days

0

43

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

45

Ariens 07500102

PLUG, HOLE - 1.00" FLEXTEMP

$3.49

$

Usually ships in 4-12 days

0

46

Ariens 08200609

ENGINE,LCT STORMFORCE 208 RECL

$

$

Not available

47

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 2 left!

0

48

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.49

$

In Stock, only 4 left!

0

49

Ariens 08300326

SG-TORS .075 X .955

$3.49

$

Usually ships in 4-12 days

0

50

Ariens 08300528

SPRING, EXTENSION
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

51

Ariens 09735700

TRACTION SHEAVE HALF
(Superseded to 52006600)

$52.99

$

Usually ships in 4-12 days

0

52

Ariens 52105000

PLATE, SWING - ASSEMBLY

$85.99

$

In Stock, only 3 left!

0

53

Ariens 52000500

BRAKE ARM W/PAD

Note: (Includes Items 57 and 58)

$22.99

$

In Stock, only 1 left!

0

54

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

55

Ariens 07200603

V-BELT, 3L-WRAPPED

$13.99

$

In Stock, Qty 20+

0

56

Ariens 07200513

V-BELT, HA-RAW EDGE
(Superseded to 07200725)

$28.99

$

In Stock, Qty 20+

0

57

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (2 Included with Item 53)

$0.99

$

In Stock, Qty 7

0

58

Ariens 00180500

PAD, BRAKE

Note: (Included with Item 53)

$10.99

$

In Stock, Qty 7

0

59

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

60

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

$3.99

$

In Stock, Qty 20+

0

61

Ariens 07500112

CAP, FUEL TANK BLACK

$13.99

$

In Stock, Qty 13

0

62

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

$3.99

$

In Stock, Qty 12

0

63

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

64

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 2 left!

0
