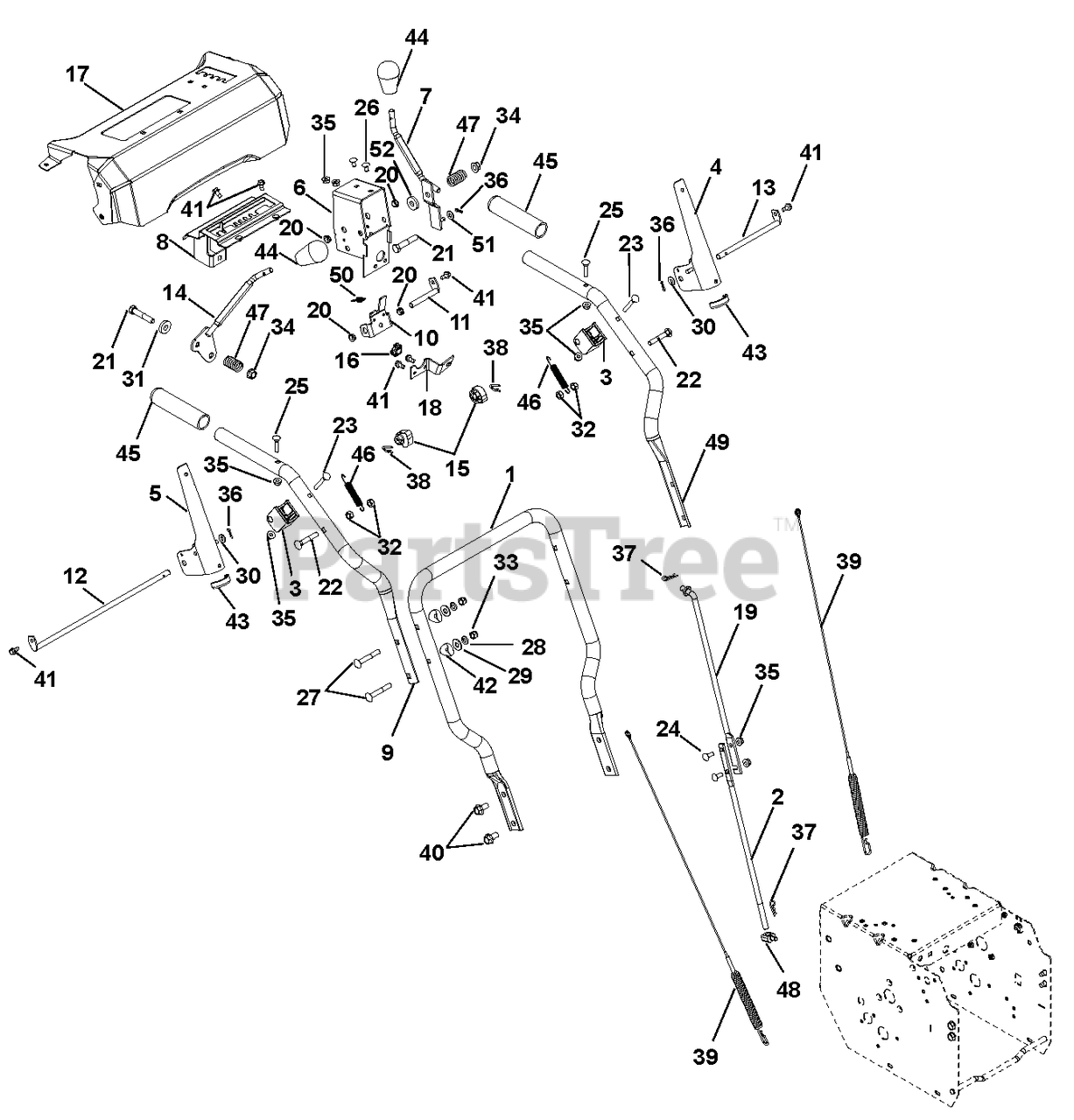

920403 - Ariens Sno-Tek 28" Snow Blower, LCT StormForce 208cc engine (SN: 075000 - 122999) Handlebars And Controls Parts Diagram

Sno-Tek 28" Snow Blower, LCT StormForce 208cc engine

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 00597451

HANDLEBAR, LOWER (COMPACT)

$62.99

$

Usually ships in 4-12 days

0

2

Ariens 04425767

ROD, SHIFT - LOWER

$24.99

$

Usually ships in 4-12 days

0

3

Ariens 04310100

BLOCK, CLUTCH PADDLE
(Superseded to 05193600)

$

$

Not available

4

Ariens 04310451

LEVER, CLUTCH-LH

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 04310551

LEVER, CLUTCH-RH

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 04316651

WELDMENT, BRACKET INTERLOCK

$26.99

$

Usually ships in 4-12 days

0

7

Ariens 04317300

WELDMENT, CONTROL LEVER (DEFL)

Note: (920402, 403, 314)

$37.99

$

Usually ships in 4-12 days

0

8

Ariens 04317751

WELDMENT, DETENT PLATE-COMPACT

$

$

Not available

9

Ariens 04318351

HANDLEBAR, UPPER - RH

$37.99

$

In Stock, only 2 left!

0

10

Ariens 04320400

BRACKET, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

11

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

12

Ariens 04321500

ROD, PADDLE MOUNT - LONG

$19.99

$

Usually ships in 4-12 days

0

13

Ariens 04321600

ROD, PADDLE MOUNT - SHORT

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 04321700

LEVER, CONTROL-SHIFT(WELDMENT)
(Superseded to 04846700)

$

$

Not available

15

Ariens 04322100

CAM, INTERLOCK

$3.99

$

In Stock, Qty 7

0

16

Ariens 04322700

CRANK BUSHING, NYLON CHUTE BK

$4.99

$

In Stock, Qty 14

0

17

Ariens 52005800

CTRL PANEL W/DECAL SNO-TEK MAN

Note: (920313, 315)

$

$

Not available

17

Ariens 52005700

CTRL PANEL W/DECAL,SNO-TEK,REM

Note: (920402, 403, 314)

$

$

Not available

18

Ariens 04333151

ANCHOR, DEFLECTOR CABLE
(Superseded to 04333100)

Note: (920402, 403, 314)

$8.99

$

Usually ships in 4-12 days

0

19

Ariens 04334967

ROD, SHIFT - UPPER
(Superseded to 04334900)

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

21

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

Note: (920402, 403, 314)

$2.99

$

In Stock, only 1 left!

0

21

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

Note: (920313, 315)

$2.99

$

In Stock, only 1 left!

0

22

Ariens 06200207

BLT-RDHDXLSQNK .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

In Stock, only 1 left!

0

24

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

26

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

32

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (920402, 403, 314)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (920313, 315)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (920402, 403, 314)

$0.99

$

In Stock, Qty 15

0

36

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (920313, 315)

$0.99

$

In Stock, Qty 15

0

37

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

39

Ariens 06900438

CABLE, AUGER & UPPER TRACTION

$31.99

$

In Stock, Qty 20+

0

40

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (920402, 403, 314)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (920313, 315)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

43

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.49

$

Usually ships in 4-12 days

0

44

Ariens 07500224

KNOB,SOFT TEARDROP,PUSH-ON BLK

Note: (920402, 403, 314)

$

$

Not available

44

Ariens 07500224

KNOB,SOFT TEARDROP,PUSH-ON BLK

Note: (920313, 315)

$

$

Not available

45

Ariens 07500239

HANDLE GRIP

$3.99

$

In Stock, Qty 20+

0

46

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, Qty 12

0

47

Ariens 08335700

SG-COMP .125X.781X1.250

Note: (920402, 403, 314)

$9.49

$

In Stock, only 1 left!

0

47

Ariens 08335700

SG-COMP .125X.781X1.250

Note: (920313, 315)

$9.49

$

In Stock, only 1 left!

0

48

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 20+

0

49

Ariens 04318451

HANDLEBAR, UPPER - LH

$37.99

$

Usually ships in 4-12 days

0

50

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 20+

0

51

Ariens 05501012

BSHG-SLV .265X.500X.219

Note: (920402, 403, 314)

$3.99

$

In Stock, Qty 12

0

52

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

Note: (920402,403,314)

$3.49

$

In Stock, Qty 20+

0
