920402 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 175000 - 219999) Discharge Chute Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

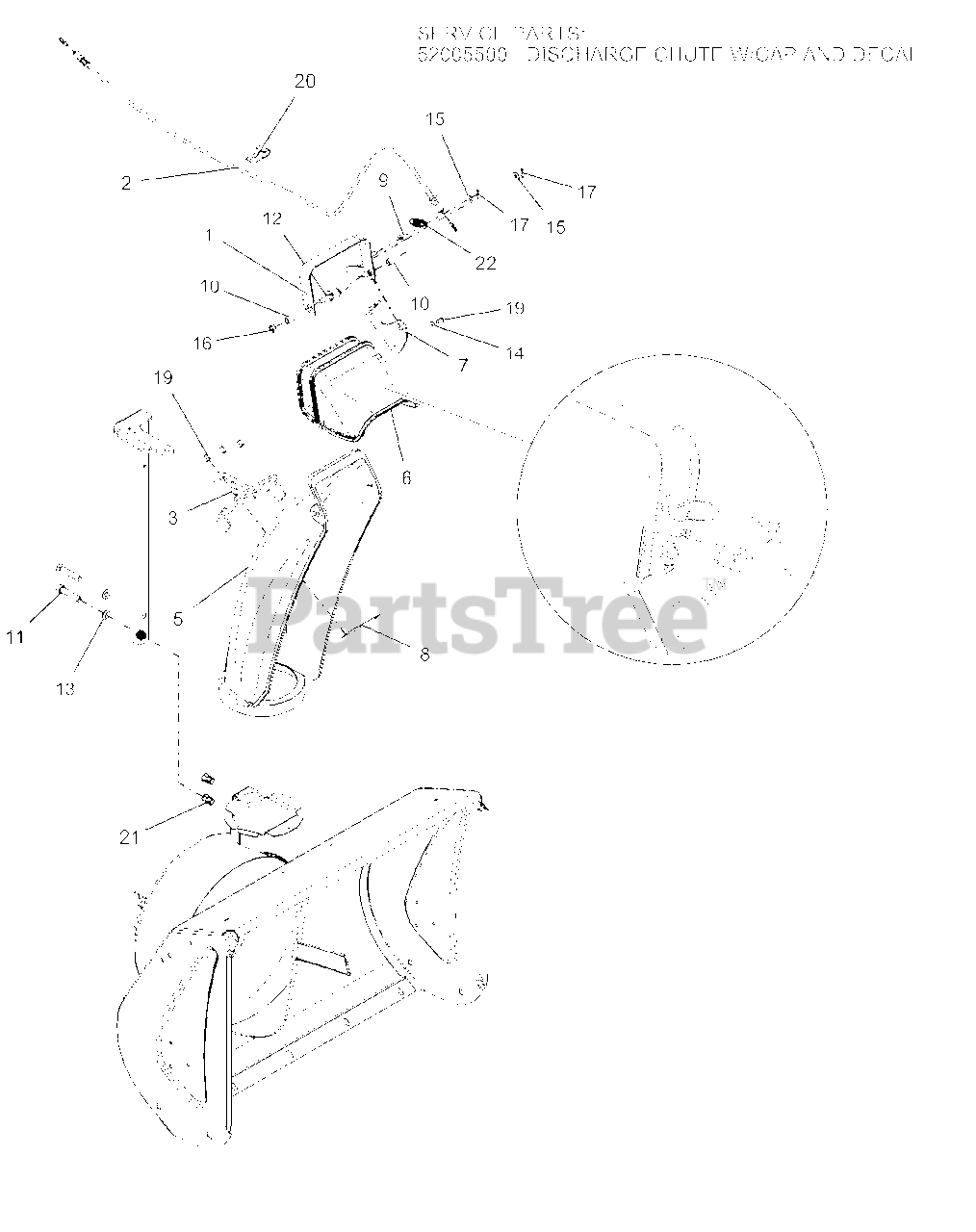

Discharge Chute Parts Diagram

  • Title
1

Ariens 04439351

WELDMENT, DEFLECTOR CAP SNOTEK

$37.99

$

Usually ships in 4-12 days

0

2

Ariens 06900524

CABLE, DEFLECTOR CAP SNO-TEK

$39.99

$

In Stock, Qty 6

0

3

Ariens 03884751

CHUTE MOUNT BRACKET

$27.99

$

Usually ships in 4-12 days

0

5

Ariens 04428600

CHUTE, PLASTIC DISCHARGE LONG

$55.99

$

Usually ships in 4-12 days

0

6

Ariens 04431900

DEFLECTOR CAP, PLASTIC

$21.99

$

Usually ships in 4-12 days

0

7

Ariens 04439451

BRACKET, CABLE ANCHOR SNOTEK

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 04440151

PLATE,CHUTE MOUNT BACKING

$9.49

$

Usually ships in 4-12 days

0

9

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 10

0

10

Ariens 05501113

BSHG-SLV .330X.455X.550

$7.99

$

Usually ships in 4-12 days

0

11

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06200212

BLT,RNHDRECSHNK .31-18X1.00

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$

$

Not available

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

17

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

19

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$

$

Not available

20

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

21

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 08300532

SPRG, TENSION .052X.520X1.74

$3.49

$

In Stock, only 1 left!

0

23

Ariens 52005500

CHUTE, REMOTE DISCHARGE W/CAP

Note: SERVICE PART

$134.99

$

Usually ships in 4-12 days

0
