920400 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

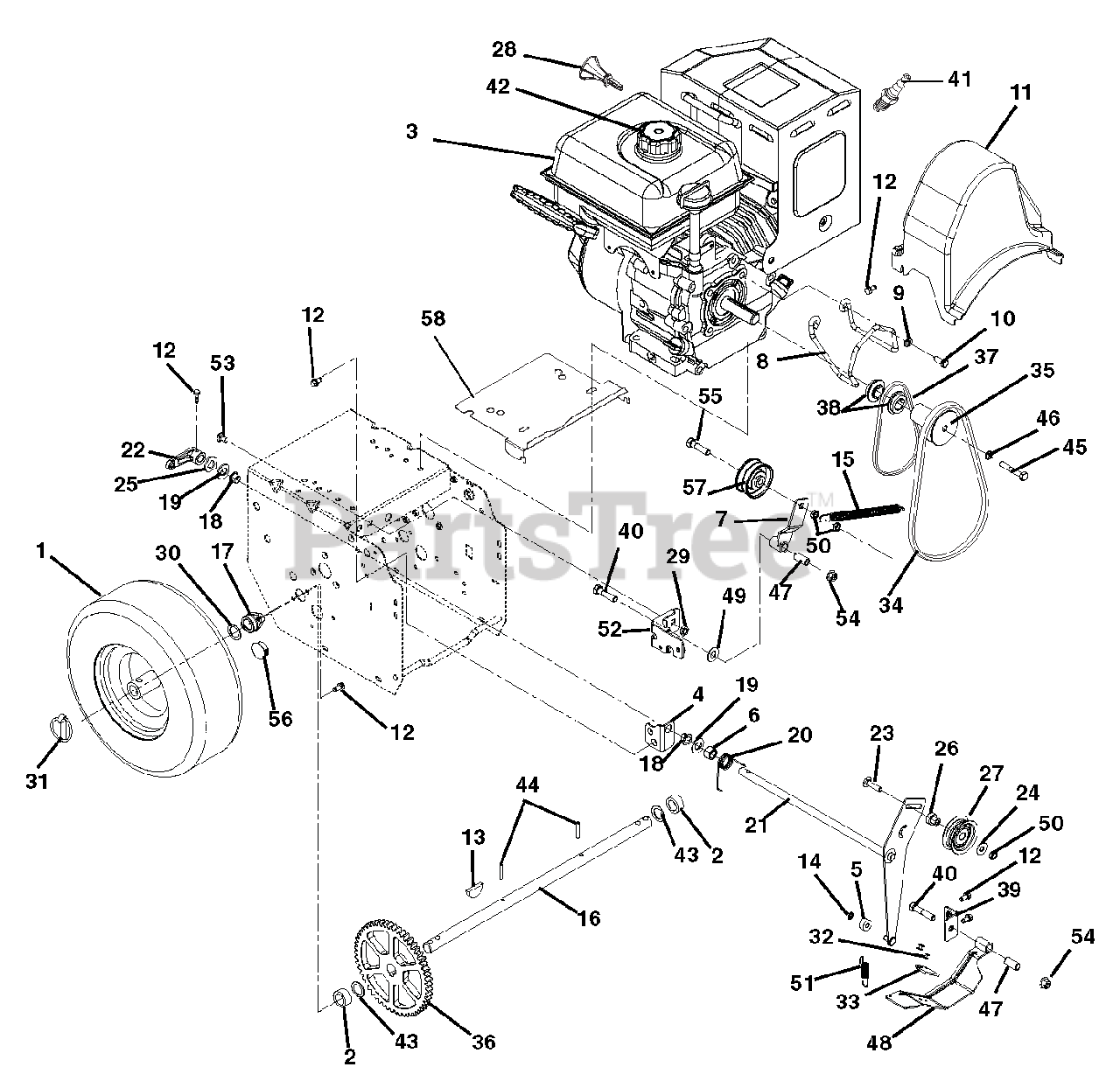

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 07100811

TIRE/WHEEL, 13X4.10-6 K398A
(Superseded to 07101238)

Note: (920400)

$79.99

$

In Stock, Qty 11

0

1

Ariens 07100812

TIRE/WHEEL, 15X5.00-6 K398A

Note: (920401)

$136.99

$

In Stock, only 1 left!

0

1

Ariens 07100814

TIRE, 13" K398A

Note: (920400)

$68.99

$

In Stock, Qty 7

0

1

Ariens 07100815

TIRE, 15" K398A

Note: (920401)

$54.99

$

Usually ships in 4-12 days

0

2

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 08200507

ENGINE,LCT STORMFORCE 208 RECL

$

$

Not available

4

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$12.99

$

Usually ships in 4-12 days

0

5

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

6

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$16.99

$

Usually ships in 4-12 days

0

8

Ariens 03881600

FINGER, BELT
(Superseded to 04561800)

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03881000

COVER, COMPACT BELT

$20.99

$

In Stock, only 3 left!

0

12

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

15

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

16

Ariens 00494200

SHAFT, AXLE

Note: (920400)

$

$

Not available

16

Ariens 03881800

AXLE, COMPACT 920,XXX 15" TIRE

Note: (920401)

$68.99

$

Usually ships in 4-12 days

0

17

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 8

0

18

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

19

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 08300326

SG-TORS .075 X .955

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 00495100

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

22

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

23

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

26

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

27

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

28

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

$3.99

$

In Stock, Qty 12

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

Note: (920400)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05500917

BSHG-SLV .75X1.12X1.062 NYL BK

Note: (920401)

$3.49

$

In Stock, only 2 left!

0

31

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (included with item 48)

$0.99

$

In Stock, Qty 7

0

33

Ariens 00180500

PAD, BRAKE

Note: (included with item 48)

$10.99

$

In Stock, Qty 7

0

34

Ariens 07200513

V-BELT, HA-RAW EDGE
(Superseded to 07200725)

$28.99

$

In Stock, Qty 20+

0

35

Ariens 03883600

SHEAVE, AUGER .75ID 920,XXX LG
(Superseded to 52006500)

$59.99

$

Usually ships in 4-12 days

0

36

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$38.99

$

Usually ships in 4-12 days

0

37

Ariens 07200101

V-BELT, 3L-WRAPPED

$20.99

$

In Stock, Qty 20+

0

38

Ariens 09735700

TRACTION SHEAVE HALF
(Superseded to 52006600)

$52.99

$

Usually ships in 4-12 days

0

39

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

40

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

$3.99

$

In Stock, Qty 20+

0

42

Ariens 07500112

CAP, FUEL TANK BLACK

$13.99

$

In Stock, Qty 13

0

43

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

45

Ariens 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$2.99

$

In Stock, only 2 left!

0

46

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

48

Ariens 52000500

BRAKE ARM W/PAD

Note: (includes items 32 and 33)

$22.99

$

In Stock, only 1 left!

0

49

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

51

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.49

$

In Stock, only 4 left!

0

52

Ariens 00657051

WELDMENT, FRAME BRACKET

$30.99

$

Usually ships in 4-12 days

0

53

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

54

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

56

Ariens 07500102

PLUG, HOLE - 1.00" FLEXTEMP

$3.49

$

Usually ships in 4-12 days

0

57

Ariens 07300525

IDLER,1.875" OD
(Superseded to 52007100)

$28.99

$

Usually ships in 4-12 days

0

58

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$64.99

$

Usually ships in 4-12 days

0
