920328 - Ariens Classic 24" Snow Blower, Ariens AX 208cc engine (SN: 320000 & Above) Frame And Engine 24" Classic CE Parts Diagram

Classic 24" Snow Blower, Ariens AX 208cc engine

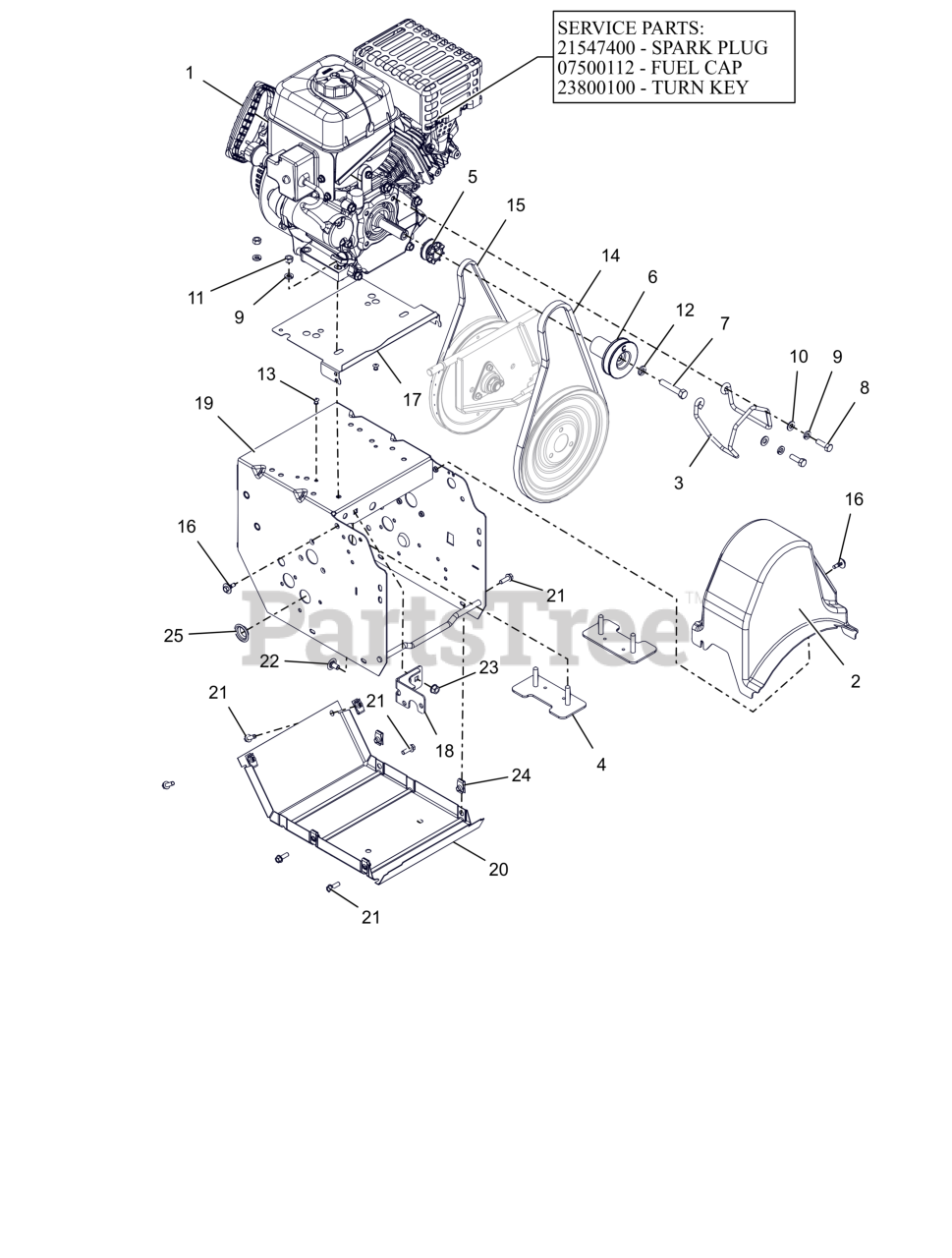

Frame And Engine 24" Classic CE Parts Diagram

  • Title
1

Ariens 08201335

ENGINE, ARIENS AX208 240V

$

$

Currently unavailable

1

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

$3.49

$

In Stock, Qty 20+

0

1

Ariens 07500112

CAP, FUEL TANK BLACK

$13.99

$

In Stock, Qty 20+

0

1

Ariens 23800100

KEY, TURN LCT (2/PACKAGE)

$11.99

$

In Stock, only 2 left!

0

2

Ariens 03881000

COVER, COMPACT BELT

$20.99

$

In Stock, Qty 5

0

3

Ariens 04561800

FINGER, BELT

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 04334100

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 04414000

SHEAVE, TRACTION

$5.99

$

In Stock, Qty 8

0

6

Ariens 05243600

SHEAVE, ATTACHMENT SINGLE GRV

$

$

Not available

7

Ariens 05902015

BLT, HEX .38-24X2.00 G5 ZCC

$2.99

$

In Stock, only 2 left!

0

8

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$

$

Not available

9

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06500938

NUT, HEX .312-18 ZCC

$0.99

$

In Stock, Qty 10

0

12

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

14

Ariens 07200725

V-BELT, HA-RAW EDGE

$28.99

$

In Stock, Qty 20+

0

15

Ariens 07200603

V-BELT, 3L-WRAPPED

$13.99

$

In Stock, Qty 20+

0

16

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 04895151

BAFFLE, COMPACT

$6.99

$

Usually ships in 4-12 days

0

18

Ariens 00657059

WELDMENT, FRAME BRACKET

$33.99

$

Usually ships in 4-12 days

0

19

Ariens 04885359

FRAME, MAIN

$

$

Not available

20

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

21

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06200333

BLT, RHSSN .31-18X.625 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07500102

PLUG, HOLE - 1.00" FLEXTEMP

$3.49

$

Usually ships in 4-12 days

0
