920327 - Ariens Sno-Tek 22" Snow Blower, Ariens AX 136cc engine (SN: 126000 & Above) Wheels And Axle Parts Diagram

Sno-Tek 22" Snow Blower, Ariens AX 136cc engine

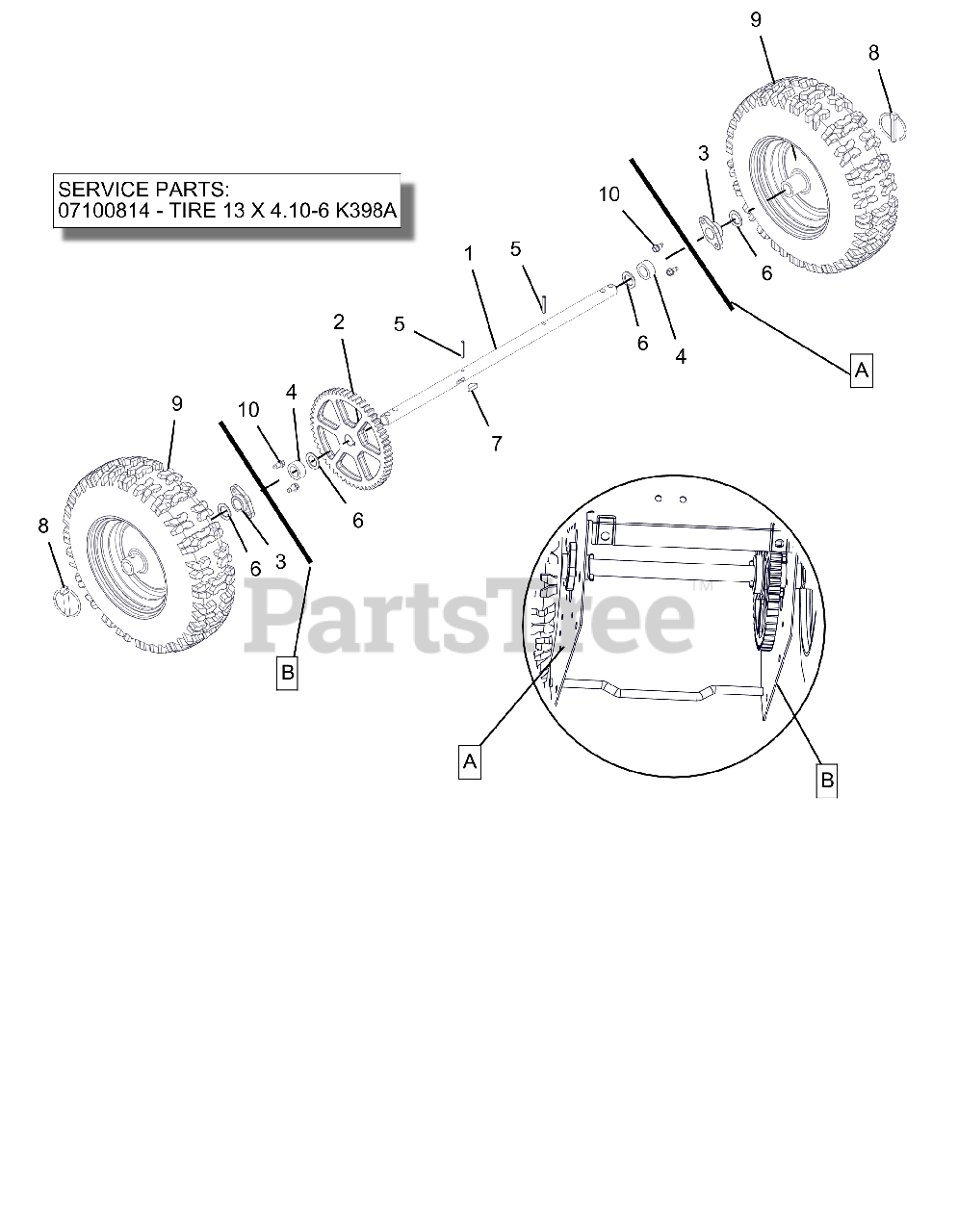

Wheels And Axle Parts Diagram

  • Title
1

Ariens 00494200

SHAFT, AXLE

$

$

Not available

2

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 10

0

4

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

8

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 20+

0

9

Ariens 07100811

TIRE/WHEEL, 13X4.10-6 K398A
(Superseded to 07101238)

$79.99

$

In Stock, Qty 13

0

9

Ariens 07100814

TIRE, 13" K398A

Note: SERVICE PART

$68.99

$

In Stock, Qty 7

0

10

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
