920324 - Ariens Sno-Tek 22" Snow Blower, LCT StormForce 208cc engine (SN: 000101 & Above) Engine 08200424 Parts Diagram

Sno-Tek 22" Snow Blower, LCT StormForce 208cc engine

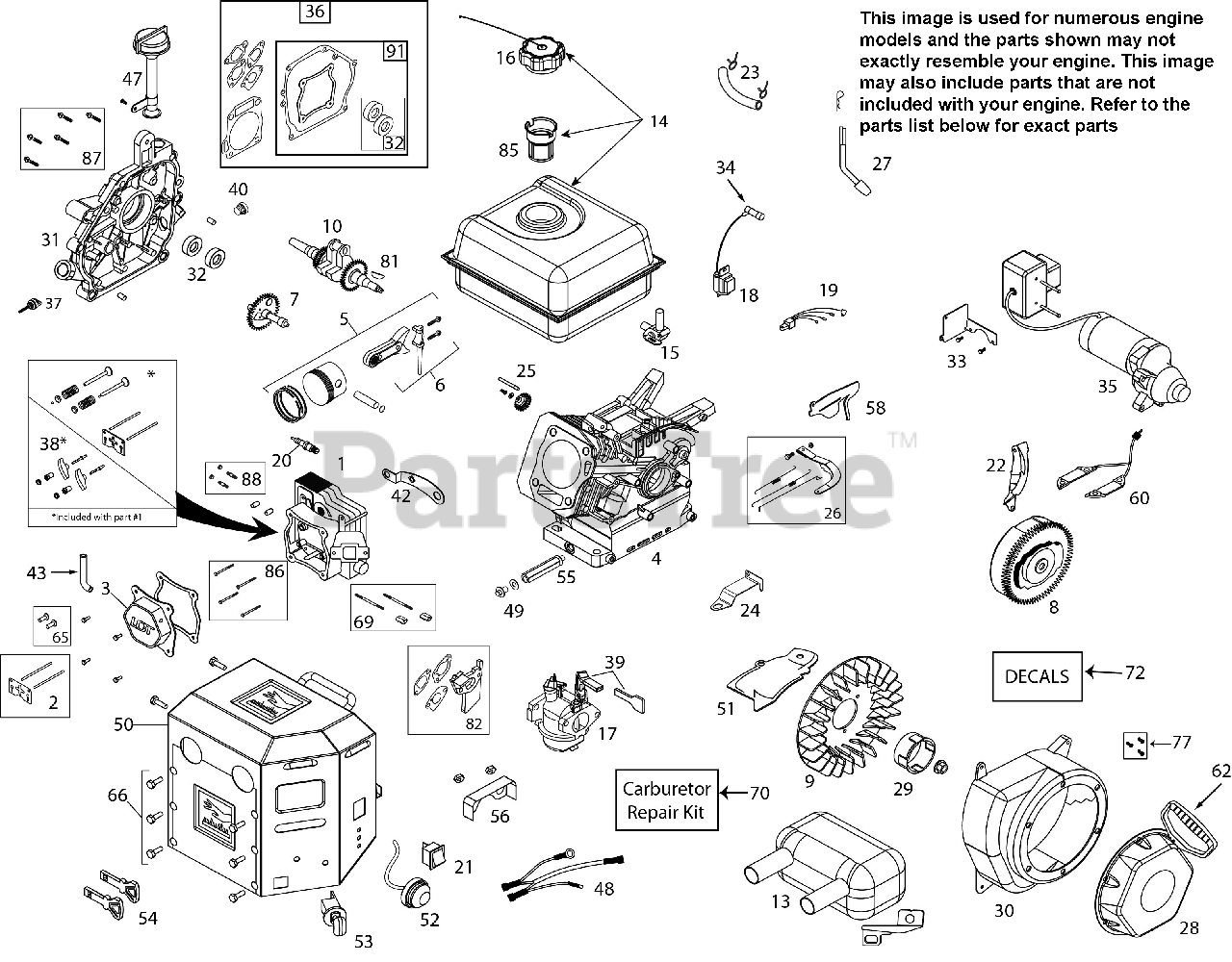

Engine 08200424 Parts Diagram

  • Title

1

Ariens 20001218

CYLINDER HEAD ASSY (W/GASKET)
(Superseded to 20001491)

Note: (incl. Gasket)

$153.99

$

Usually ships in 4-12 days

0

2

Ariens 20001219

PUSH ROD & PLATE KIT (W/GASKT)
(Superseded to 20001362)

Note: (208cc)(incl. valve cover gskt)

$

$

Not available

3

Ariens 20001250

VALVE COVER (W/GASKET)
(Superseded to 20001363)

Note: (208cc) (incl. Gasket)

$21.99

$

Usually ships in 4-12 days

0

4

Ariens 20001003

CYLINDER

$132.99

$

Usually ships in 4-12 days

0

5

Ariens 20001222

PISTON & ROD ASSEMBLY
(Superseded to 20001492)

Note: (208cc)

$82.99

$

In Stock, only 1 left!

0

6

Ariens 20001223

CONNECTING ROD ASSEMBLY
(Superseded to 20001492)

Note: (208cc)

$82.99

$

In Stock, only 1 left!

0

7

Ariens 20001224

CAMSHAFT - MCR
(Superseded to 20001497)

Note: (208cc) (incl. cover gasket)

$53.99

$

Usually ships in 4-12 days

0

8

Ariens 20001035

FLYWHEEL - ELECTRIC START
(Superseded to 20001480)

Note: (2-charging magnets) (208cc)

$79.99

$

Usually ships in 4-12 days

0

9

Ariens 20001248

COOLING FAN - FLYWHEEL

Note: (Plastic - 208cc)

$

$

Not available

10

Ariens 20001072

CRANKSHAFT (#18 KEYED)

Note: (#18 Keyed 208cc Snow)

$94.99

$

Usually ships in 4-12 days

0

13

Ariens 20001016

MUFFLER ASSEMBLY
(Superseded to 20003212)

$149.99

$

Usually ships in 4-12 days

0

14

Ariens 20001025

FUEL TANK (W/PLASTIC CAP)
(Superseded to 20001026)

Note: (208cc-Snow) (2.7L Black w/Plastic Cap - GEN II)

$68.99

$

In Stock, Qty 13

0

15

Ariens 20001436

FUEL TANK ON/OFF VALVE

$23.99

$

In Stock, Qty 20+

0

16

Ariens 07500112

CAP, FUEL TANK BLACK

Note: (Vented)

$13.99

$

In Stock, Qty 20+

0

17

Ariens 20001027

CARBURETOR (W/GSKTS & SPACER)
(Superseded to 20001368)

Note: (L10-1) (GEN II Snow 208cc- w/gskts & spacer)

$97.99

$

In Stock, Qty 13

0

18

Ariens 20001067

IGNITION COIL KIT
(Superseded to 20001505)

Note: (incl. ref. 19) (2-piece ignition)

$51.99

$

Usually ships in 4-12 days

0

18

Ariens 20001042

IGNITION COIL (CDI) (STANDARD)

Note: (CDI) (208cc)(Standard)

$42.99

$

In Stock, Qty 20+

0

19

Ariens 20001034

CDI MODULE - BLACK BOX

Note: (used on 2-pc ignition system)

$

$

Not available

20

Ariens 20001246

SPARK PLUG, ARIENS AX
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

21

Ariens 20001033

ON/OFF SWITCH - ROCKER

$11.99

$

In Stock, only 3 left!

0

22

Ariens 20001059

SHIELD - FLYWHEEL ELECT START

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 20001252

FUEL HOSE KIT 1/4-318MM

Note: (1/4'' ID x 318mm - SS Snow)

$5.99

$

In Stock, Qty 18

0

24

Ariens 20001011

SPEED CONTROL BRACKET (FIXED)

Note: (Fixed)

$

$

Not available

25

Ariens 20001236

GOVERNOR GEAR ASSEMBLY

Note: (136/208cc)

$7.99

$

Usually ships in 4-12 days

0

26

Ariens 20001237

GOVERNOR ARM & LNK KIT 3600RPM

Note: (208cc Snow - 3600 Fixed RPM)7200012381Governor Arm Paddle

$5.99

$

In Stock, Qty 10

0

27

Ariens 20001238

GOVERNOR ARM PADDLE

$

$

Not available

28

Ariens 20001054

RECOIL STARTER ASSY RND-BLACK

Note: (Round Style-Black) 136/208cc GEN II Snow

$62.99

$

In Stock, Qty 20+

0

29

Ariens 20001056

STARTER CUP RND STYLE STARTER

Note: (use with Round Style Starter) (208cc Snow)

$

$

Not available

30

Ariens 20001057

BLOWER HOUSING (W/WELDNUT)

Note: (208cc) (SN >1165H0313865)

$25.99

$

Usually ships in 4-12 days

0

31

Ariens 20001240

CRANKCASE COVER ASSY W/GASKET

Note: (Threaded) (incl. gasket) (SN <1265H0519257)

$85.99

$

Usually ships in 4-12 days

0

32

Ariens 20001247

OIL SEAL KIT(2 PCS 3/4" CRANK)

Note: (2 Pcs for 3/4-inch crankshaft)

$13.99

$

In Stock, Qty 6

0

34

Ariens 20001158

SPARK PLUG BOOT (W/MTL SHIELD)

Note: (Snow)

$9.49

$

In Stock, only 3 left!

0

35

Ariens 20001037

230V ELECTRIC STARTER
(Superseded to 20001442)

Note: (208cc Gen ll)

$328.99

$

In Stock, only 1 left!

0

35

Ariens 20001428

ELECTRIC STARTER SOCKET (CAP)

Note: (Not Shown) (OPTIONAL)

$9.49

$

Usually ships in 4-12 days

0

35

Ariens 20001103

STARTER SWITCH SCREWS

$9.49

$

In Stock, Qty 5

0

36

Ariens 20001249

ENGINE GASKET KIT

Note: (208cc)

$36.99

$

In Stock, only 1 left!

0

37

Ariens 20001244

SMALL BLACK OIL DIPSTICK

Note: (Plastic)

$6.99

$

In Stock, only 2 left!

0

38

Ariens 20001221

ROCKER ARM KIT (W/GASKET)

Note: (208cc)(incl. gasket)

$

$

Not available

39

Ariens 20001145

CHOKE CONTROL KNOB (RED)
(Superseded to 20000025)

Note: (GEN II Red)

$4.99

$

In Stock, Qty 20+

0

40

Ariens 20001243

NON-REMOVABLE PLASTIC PLUG

Note: (136/208/254cc)

$5.99

$

In Stock, only 2 left!

0

41

Ariens 20001254

POLY PRE-FILTER P AIR CLEANER

Note: (use with ''P'' Air Cleaner) (136/208cc)

$8.99

$

Usually ships in 4-12 days

0

42

Ariens 20001032

CDI BOX MTG BRACKET

$

$

Not available

43

Ariens 20001251

BREATHER TUBE

Note: (136/208/254cc)

$4.99

$

Usually ships in 4-12 days

0

47

Ariens 20001242

HIGH OIL-FILL TUBE/DIPSTICK

Note: (Thread- in Type) (SN <1265H0519257)

$6.99

$

In Stock, only 4 left!

0

47

Ariens 20001071

HIGH OIL-FILL TUBE/DIPSTICK

Note: (Press-in Type) SN >1265H519257

$7.99

$

In Stock, Qty 15

0

48

Ariens 20001013

WIRE HARNESS
(Superseded to 20001141)

Note: (208cc Snow)

$

$

Not available

49

Ariens 20001255

OIL DRAIN PLUG (W/WASHER)

Note: (136/208/254cc)

$

$

Not available

50

Ariens 20001006

HEATER BOX KIT

Note: (GEN ll 208cc Snow)

$56.99

$

Usually ships in 4-12 days

0

51

Ariens 20001062

SHIELD - CYLINDER
(Superseded to 20003208)

Note: (208cc Snow)

$

$

Not available

52

Ariens 20001023

PRIMER BULB WITH HOSE-SNOW
(Superseded to 20001472)

$

$

Not available

53

Ariens 20001031

SAFETY KEY SWITCH (W/KEYS)
(Superseded to 20000026)

Note: (w/ keys)

$12.99

$

In Stock, Qty 6

0

54

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

Note: (2) (Snow)

$3.99

$

In Stock, Qty 6

0

55

Ariens 20001068

OIL DRAIN TUBE

Note: (136/208cc)

$

$

Not available

56

Ariens 20001012

CARBURETOR VAPOR SHIELD

$6.99

$

Usually ships in 4-12 days

0

57

Ariens 20001017

CE COMPLIANT MUFFLER SHIELD

Note: (208cc)

$34.99

$

Usually ships in 4-12 days

0

58

Ariens 20001051

SHIELD - GOVERNOR LINKAGE

$6.99

$

Usually ships in 4-12 days

0

59

Ariens 20001007

FUEL TANK SKIRT

Note: (208ccl Snow)

$

$

Not available

60

Ariens 20001070

CHARGING COIL (6-WATT AC)

Note: (6-watt AC)

$32.99

$

Usually ships in 4-12 days

0

61

Ariens 20001148

FUEL CONTROL KNOB (RED)
(Superseded to 20000024)

Note: (GEN II Snow - Red)

$4.99

$

In Stock, Qty 20+

0

62

Ariens 20001058

STARTER GRIP
(Superseded to 20001064)

$12.99

$

In Stock, only 3 left!

0

65

Ariens 20001220

TAPPET KIT (SET OF 2)

Note: (208/254cc)(Set of 2)

$11.99

$

Usually ships in 4-12 days

0

69

Ariens 20001024

CARBURETOR STUDS & COUPLNG KIT

$9.49

$

In Stock, Qty 10

0

70

Ariens 20001184

CARBURETOR REPAIR KIT
(Superseded to 20001441)

Note: (136/208/254cc)

$28.99

$

In Stock, Qty 20+

0

72

Ariens 20001001

STORMFORCE LABEL KIT

$

$

Not available

74

Ariens 20001019

MUFFLER HEAT SHIELD COVER

Note: (136/208/254)

$18.99

$

Usually ships in 4-12 days

0

77

Ariens 20001186

RECOIL BOLT KIT

Note: (incl. (3) mtg bolts)

$4.99

$

In Stock, Qty 6

0

78

Ariens 20001079

BREATHER TUBE BRACKET

$

$

Not available

79

Ariens 20001081

CARBURETOR COVER

Note: (136/208/254cc Snow)

$8.99

$

Usually ships in 4-12 days

0

81

Ariens 20001333

WOODRUFF FLYWHEEL KEY 5-PACK

Note: (5-pack) (5x6x18mm)

$5.99

$

In Stock, only 2 left!

0

82

Ariens 20001330

CARBURETOR SPACER

Note: (208/254cc)

$5.99

$

In Stock, Qty 9

0

85

Ariens 20001342

FUEL TANK STRAINER

$4.99

$

In Stock, Qty 9

0

86

Ariens 20001358

HEAD BLT KIT 136-179-208-254CC

Note: (4) (136-179-208-254cc)

$

$

Not available

87

Ariens 20001354

CC COVER BLT KIT 179-208-254CC

Note: (6) (179-208-254cc)

$6.99

$

Usually ships in 4-12 days

0

88

Ariens 20001353

MUFFLER MTG STUD KIT

Note: (2)

$7.99

$

In Stock, only 1 left!

0

91

Ariens 20001417

CRANKCASE GASKET KIT 208GEN1&2

$24.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001438

HARDWARE KIT (4 M6X10 FLG BLT)

Note: (4 M6 X 10 FLG BLT)

$

$

Not available

9999

Ariens 20001345

HIGH ALT JET-208CC L10-1 CARB

Note: (>6,000 feet)(208cc L10-1 Carburetor)

$11.99

$

In Stock, only 1 left!

0
