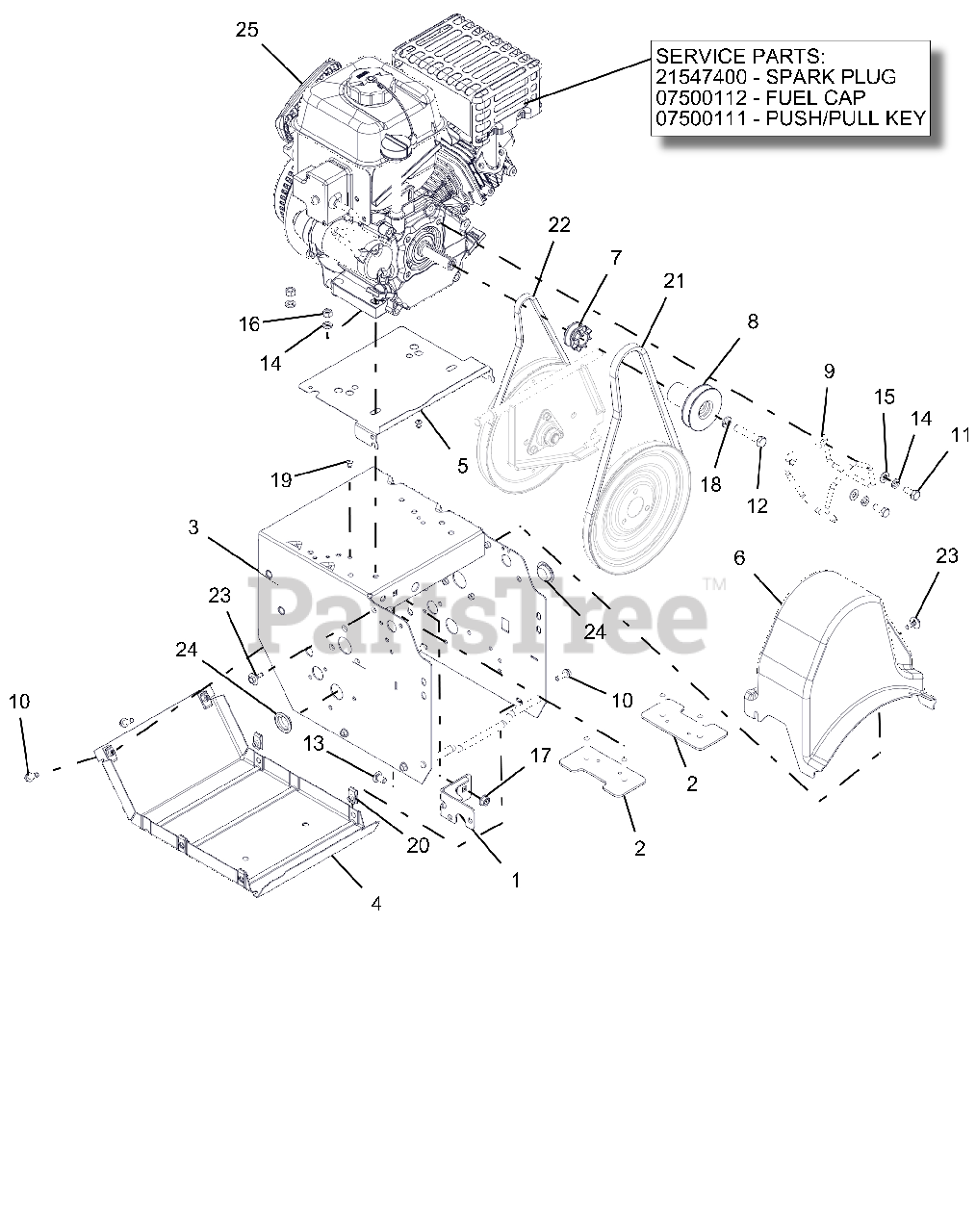

920321 (ST 24 LE) - Ariens Compact 24" Snow Blower, Ariens AX 208cc engine (SN: 123000 - 180999) Frame And Engine Parts Diagram

Compact 24" Snow Blower, Ariens AX 208cc engine

Frame And Engine Parts Diagram

  • Title

1

Ariens 00657059

WELDMENT, FRAME BRACKET

$33.99

$

Usually ships in 4-12 days

0

2

Ariens 04334100

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

3

Ariens 04393859

WELDMENT,FRAME 920

$

$

Not available

4

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

5

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$64.99

$

Usually ships in 4-12 days

0

6

Ariens 03881000

COVER, COMPACT BELT

$20.99

$

In Stock, only 3 left!

0

7

Ariens 04414000

SHEAVE, TRACTION

$5.99

$

In Stock, Qty 7

0

8

Ariens 04498800

SHEAVE,AUGER 3/4" PM

$38.99

$

In Stock, only 1 left!

0

9

Ariens 04561800

FINGER, BELT

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$2.99

$

In Stock, only 2 left!

0

13

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 7

0

20

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07200513

V-BELT, HA-RAW EDGE
(Superseded to 07200725)

$28.99

$

In Stock, Qty 20+

0

22

Ariens 07200603

V-BELT, 3L-WRAPPED

$13.99

$

In Stock, Qty 20+

0

23

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 07500102

PLUG, HOLE - 1.00" FLEXTEMP

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 08200922

ENGINE, ARIENS AX208 240V/60W

$

$

Not available

25

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

25

Ariens 07500112

CAP, FUEL TANK BLACK

Note: SERVICE PART

$13.99

$

In Stock, Qty 13

0

25

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

Note: SERVICE PART

$3.99

$

In Stock, Qty 12

0
