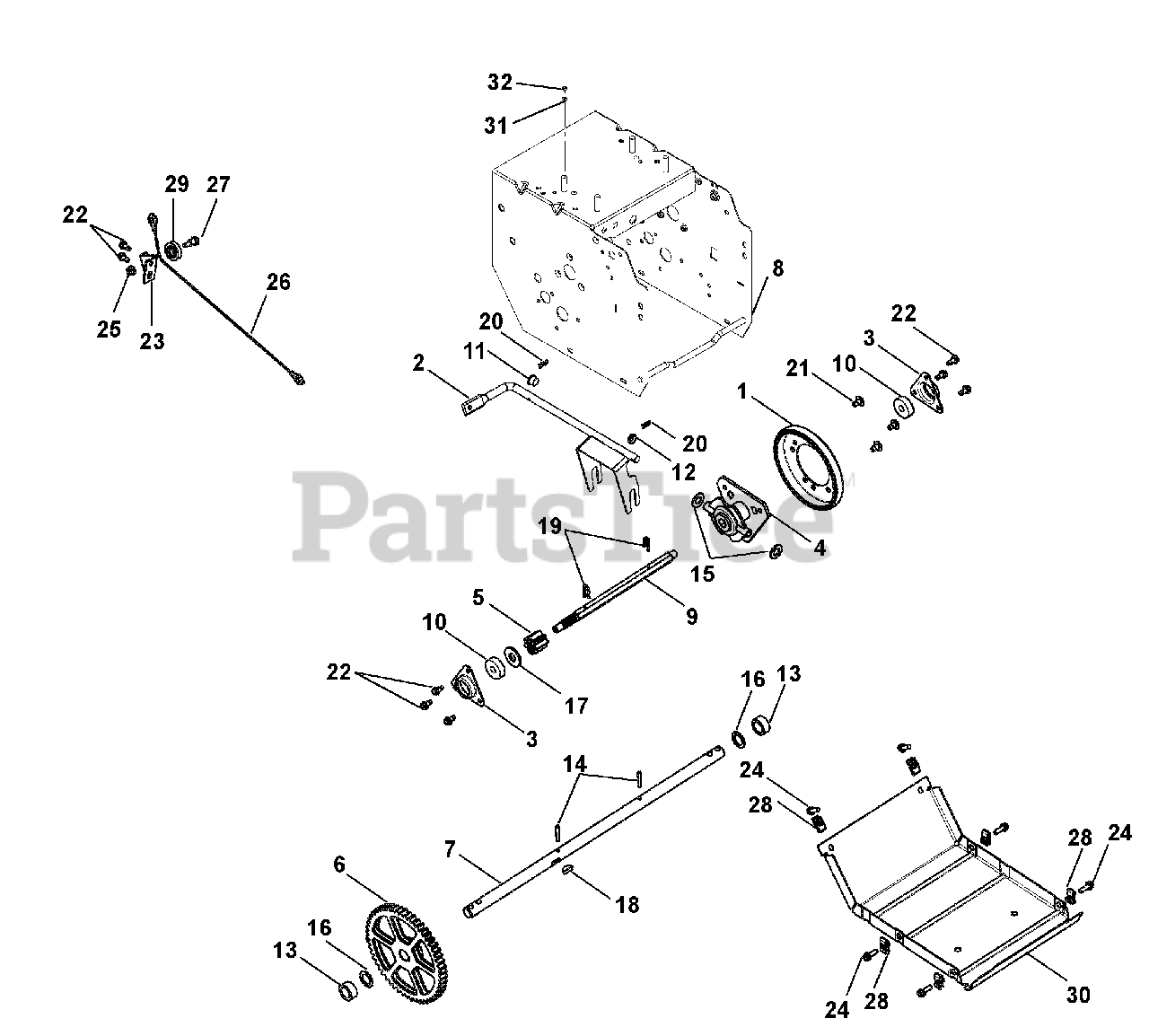

920320 - Ariens Sno-Tek 20" Snow Blower, Ariens AX 136cc engine (SN: 000101 & Above) Friction Drive Parts Diagram

Sno-Tek 20" Snow Blower, Ariens AX 136cc engine

Friction Drive Parts Diagram

  • Title

1

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

2

Ariens 00656951

WELDMENT, SHIFT FORK

$103.99

$

Usually ships in 4-12 days

0

3

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

4

Ariens 00383100

CARRIER, DRIVE DISK

$117.99

$

In Stock, Qty 11

0

5

Ariens 00493900

GEAR, PINION, 7 TOOTH W/SPLINE

$

$

Not available

6

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$38.99

$

Usually ships in 4-12 days

0

7

Ariens 03881800

AXLE, COMPACT 920,XXX 15" TIRE

Note: (920403, 314)

$68.99

$

Usually ships in 4-12 days

0

7

Ariens 00494200

SHAFT, AXLE

Note: (920402, 313, 315, 320, 324)

$

$

Not available

8

Ariens 52006300

FRAME W/ENGINE BOLT STRAPS

$

$

Not available

9

Ariens 04149500

SHAFT, HEX W/SPLINE

$31.99

$

In Stock, Qty 8

0

10

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

11

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

12

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 20+

0

13

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

18

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

19

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

24

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$9.49

$

In Stock, Qty 17

0

27

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

28

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

29

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 11

0

30

Ariens 00492351

COVER, BOTTOM

$

$

Not available

31

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0
